Opening and closing windows



Through the driver's door switch can control all the power windows. Other doors have power window control buttons each specific door.
Press to open it.
Pull down To close the corresponding window (Fig. 1.19).

Controls windows on the driver's door

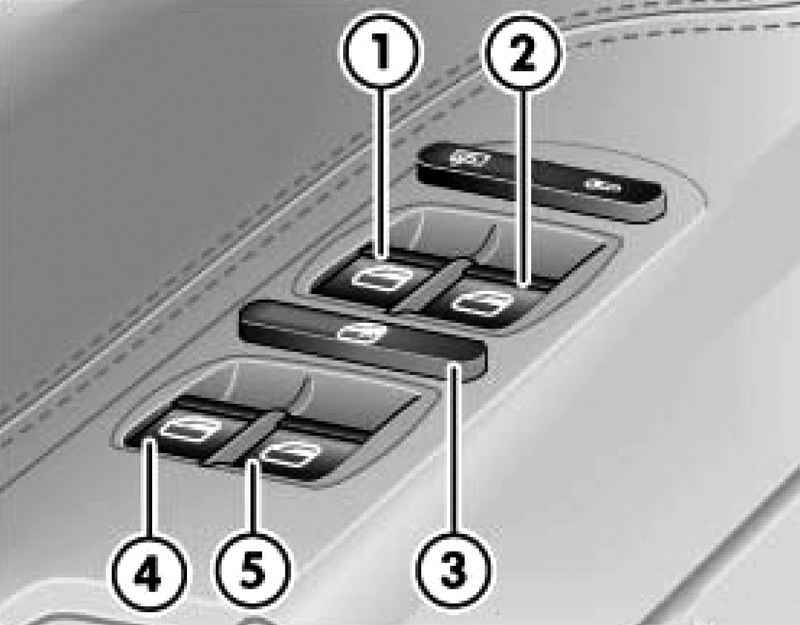

Fig. 1.19. Controls windows on the driver's door


Always close the windows when parking or leave it unattended.
After turning off the ignition, you can still use about 10 minutes, power windows, if at that time was not removed the ignition key, or was not open either one of the front doors.
The keys are in the driver's door:
1. The key for the left front window.
2. The key to the right front window.
Keys for the rear windows:
3. The safety switch to turn off the keys windows in the rear doors.
4. Key to the left rear window.
5. Key to the right rear window.

Safety switch
Through the safety switch in the driver's door 3, you can disconnect the control keys windows in the rear doors.
Unlock Safety switch: key in the rear doors are functional.
The safety switch is fixed: key in the rear doors inoperable.

Automatic lifting and lowering of glasses
For automatic lifting glasses briefly pull the top of the key corresponding to the second window fixed position. The window is fully closed.
To automatically lower the glass, briefly retighten down button for the corresponding window to the second fixed position. The window will open fully.
To restore the automatic action, close all windows.
Insert the key into the driver's door and hold it for at least one second locking position. Automatic lifting and lowering of glasses again operational.
Keys 1 and 3 have two fixed positions for opening and closing windows. This simplifies the process of opening and closing the windows.
If a key is pressed or pulled to the first position, the window opens and closes as the key is pressed or stretched. If you pull your short or pulled down to the second position, the window is opened or closed with automatic opening (automatic lowering) or closing (automatic recovery). If work key at the time when the window is opened or closed, the glass stops.
After turning off the ignition automatic control of closing and opening the windows is no longer valid, even if the key has not been removed from the ignition.
If the battery has been disconnected and then reconnected or was discharged, automatic operation is not valid and should be restored.
When a fault windows automatic control and overload protection are not in full.

Overload protection
Power windows are equipped with overload protection. This reduces the chance of injury when closing windows.
When closing the window with automatic control that prevents any progress or window difficult, glass stops and then falls.
Before you try to close the window again within ten seconds see why the window is not closed. After ten seconds of effort on closing the window will automatically increase.
If the back window can not be closed, the glass stops.
If held, respectively, over ten or five seconds, when exposed to the button, the window will open fully again, and automatic control of the closing of the window is again operational.
When a fault windows automatic control and overload protection are not in full.

Easy opening and closing the windows from the outside
The windows can be opened and closed from outside the vehicle.
When opening and closing windows mechanical key should hold the mechanical key to lock or unlock position until all the windows is not open or close. When the key is turned in the other direction the process is interrupted.
