Pin connectors dash
NOTE Pin connectors combination of devices is dependent on the vehicle, engine type and the destination country. |

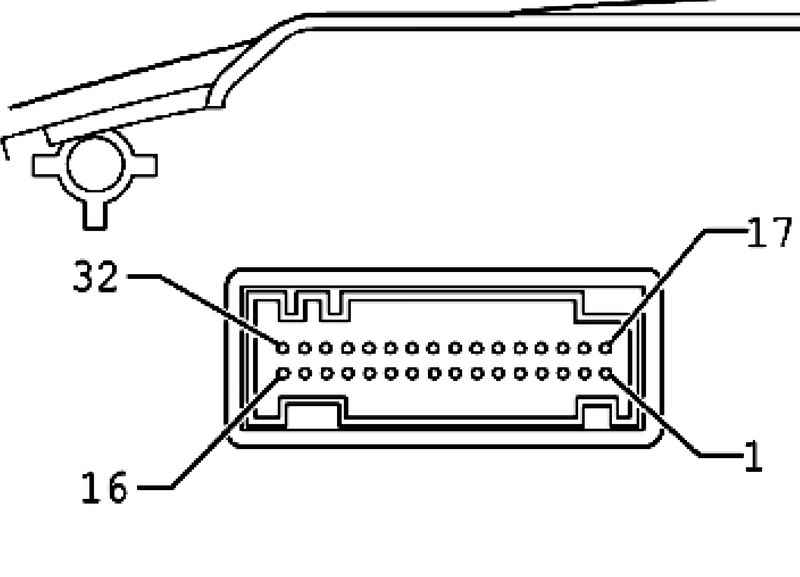

| Fig. 7.75. Connector, 32-pin, blue 1 - Terminal 15 plus; 2 - Terminal 15 plus; 3 - 1 electronic output of the speedometer; 4 - fuel level sensor 2; 5 - fuel level sensor 1; 6 - indication of insufficient amount of fluid in the washer fluid reservoir; 7 - terminal 31, the mass of the sensor; 8 - terminal 30; 9 - Terminal 31, earth; 10 - the gauge of pressure of oil; 11 - Indication of the outside temperature; 12 - a control lamp of the generator, the terminal 61; 13-17 - are not involved; 18 - terminal 30 S; 19 - terminal 30 S; 20 - is not involved; 21 - is not involved; 22 - indication of insufficient amount of cooling fluid; 23 - Terminal 30 plus; 24 - Terminal 31, earth; 25 - Self-diagnosis / K wire; 26-28 - are not involved; 29 - Alarm contact for the entire brake system; 30 - is not involved; 31 - Alarm lamp seat belt; 32 - Not assigned
|

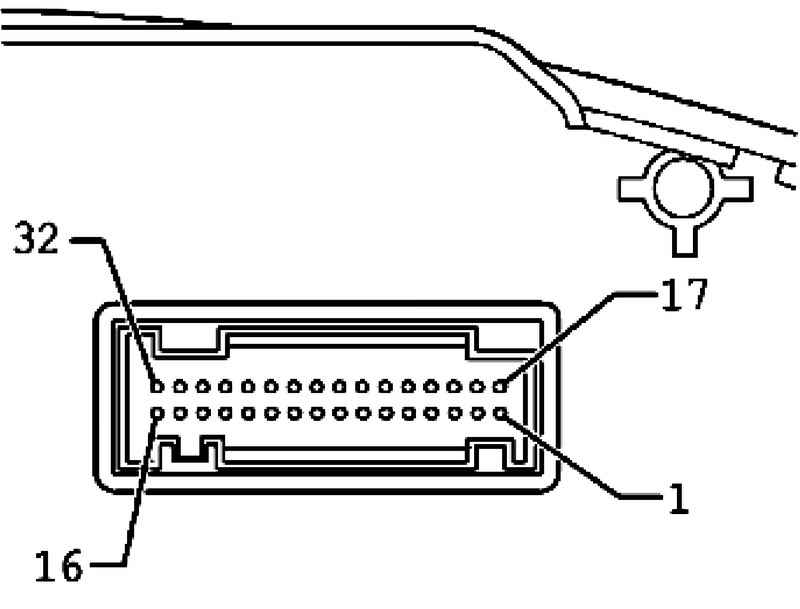

| Fig. 7.76. Connector, 32-pin, green 1-6 - are not involved; 7 - brake pad wear; 8 - Bus CAN-out, High; 9 - Bus CAN-out, Low; 10-12 - are not involved; 13 - the parking brake; 14-17 - are not involved; 18 - a warning signal for the temperature and the oil level; 19 - CAN Drive, High; 20 - CAN Drive, Low; 21-26 - are not involved; 27 - CAN bus comfort, High; 28 - CAN bus comfort, Low; 29 - is not involved; 30 - emergency mode; 31 - Bus CAN Infotainment High; 32 - Bus CAN Infotainment Low
|
|
|
