Replacement of the fuel filter
Conditions The fuel tank must be empty. Fuses 13 and 14 should be removed from their sockets.
The order of execution of works

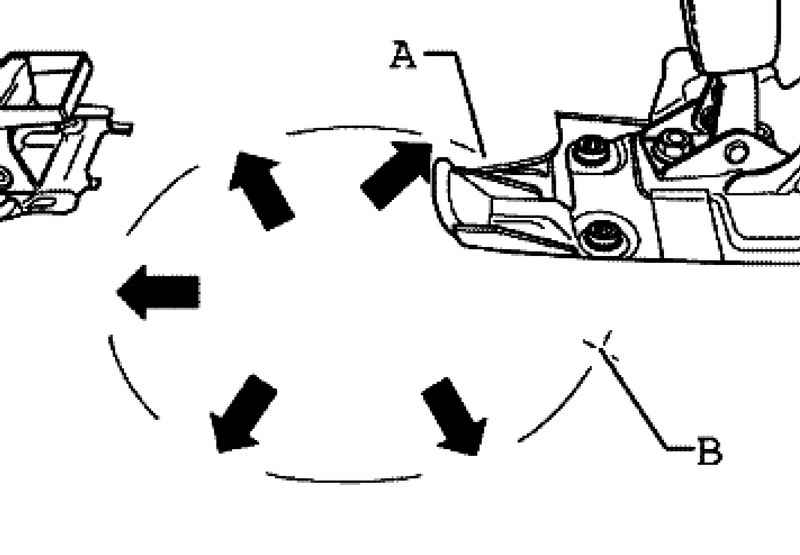

Cut the carpet to the left of point A to point B in a pre-notched site (Fig. 2.308).
If necessary, remove the armrest support bracket 2 or the support bracket. Remove the snap ring with a key from the left T10202 sensor flange. Remove the flange on the left side of the fuel tank. Remove the fuel from the fuel filter housing. Mark installation position of colored pencil filter cover 2.

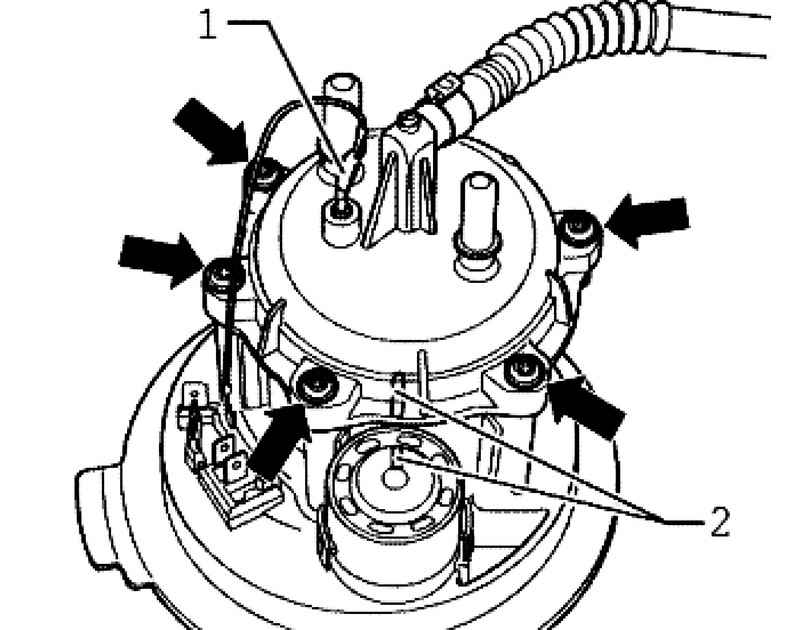

Disconnect the ground cable 1 and remove the filter cover (Fig. 2.310) from the body. When replacing the filter insert bend conclusions connection weight and make sure they were quite tense.
|
