Replacement of the left shaft seal flange for vehicles with differential lock



Withdrawal
Remove the rear final drive
Secure universal tool VW 771 on the left shaft flange.

Removing left flange shaft
Fig. 3.169. Removing left flange shaft


Remove the left shaft flange (Fig. 3.169).

Removing the sealing ring
Fig. 3.170. Removing the sealing ring


Remove the O-ring shaft flange using a universal tool VW 771 and puller VW 771/37 (Fig. 3.170).

Setting

Pressing the O-ring

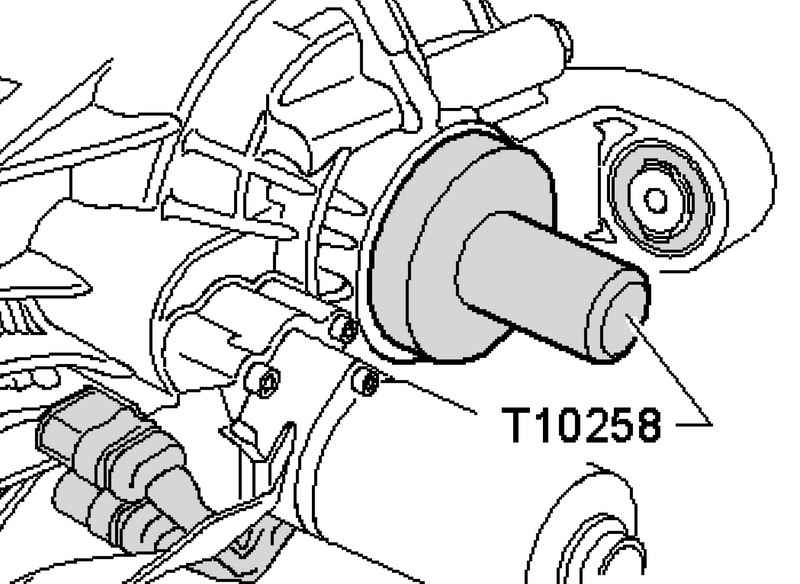

Fig. 3.172. Pressing the O-ring


Fitting the new sealing ring to the stop (Fig. 3.172).
Fill the space between working with the dust and sealing lips half with grease G 052 128 A1.
Check before you install the boot shaft flange damage. If necessary - replace the boot

Removing the thrust ring
Fig. 3.161. Extract thrust washer: B - protective edge


A stubborn old ring with pliers, remove from the groove of the shaft flange (Fig. 3.161).
The new thrust ring, do not stretch, set in the groove of the shaft flange.
Press in the shaft flange with a plastic mallet.
Install the rear final drive
Check the transmission oil level at the rear of the main gear.
