Control Panel Lighting
| Fig. 2.8. Panel exterior lighting
|
Control panel light has the following elements (Fig. 2.8): 1) A - Control handle headlights and parking (position) lights. This knob has the following positions:
NOTE There is a complete set of cars with permanent dipped beam. If you find the ignition key in position II have enabled the dipped headlights (including front and rear lights and license plate illumination). Dipped headlights automatically turn on when you turn the ignition key to the "start" and can not be turned off. |
 included parking (overall) lights;
 - The dipped headlights (and front and rear parking lights, number plate lighting and instrument lighting);
NOTE Far by headlights can only be switched on at a given position dimmer. |
NOTE If (when the vehicle xenon headlights) due to a low battery voltage does not include one of the lights, just turn the knob A to position D, and then back to |

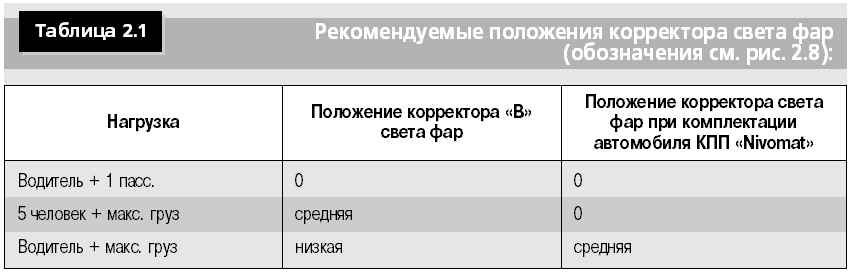

2) - Adjusting the height of the beam headlamp. On some models, each headlamp is equipped with electric height adjustment beam headlights at different car boot. The height of the beam is changed by the regulator "B", located on the dashboard (see. Fig. 2.8) and Table. 2.1.
NOTE If the vehicle is fitted with Xenon headlights, the height adjustment beam headlights automatically. |
3) - Adjust the instrument panel illumination. As you turn up the brightness of the suspension increased down - decreases. 4) D - Rear fog lights. Press D. The rear fog lights are included with the parking lights and main / dipped beam headlights (the ignition key must be in position II). At the same time LED lights up in the button and the corresponding symbol on the instrument panel. 5) E - Fog lights. Press E. Fog lights turn on with the parking lights and main / dipped beam headlights (the ignition key must be in position II). When the fog lamp illuminates the LED located in button.
NOTE If after removing the ignition key from the lock lever to pull the headlamp switch in the direction of steering, then turn on dipped 30 seconds. It can be used to illuminate the road from the car to the front door of the house. |
|
