Dismantling and assemblage of the oil pump
NOTE When installing, first tighten all the mounting bolts by hand. Then tighten the screws of the pressure of the oil pipeline to the cylinder block, and then to the oil pump. At the end, tighten the fixing bolts of the oil pump. |

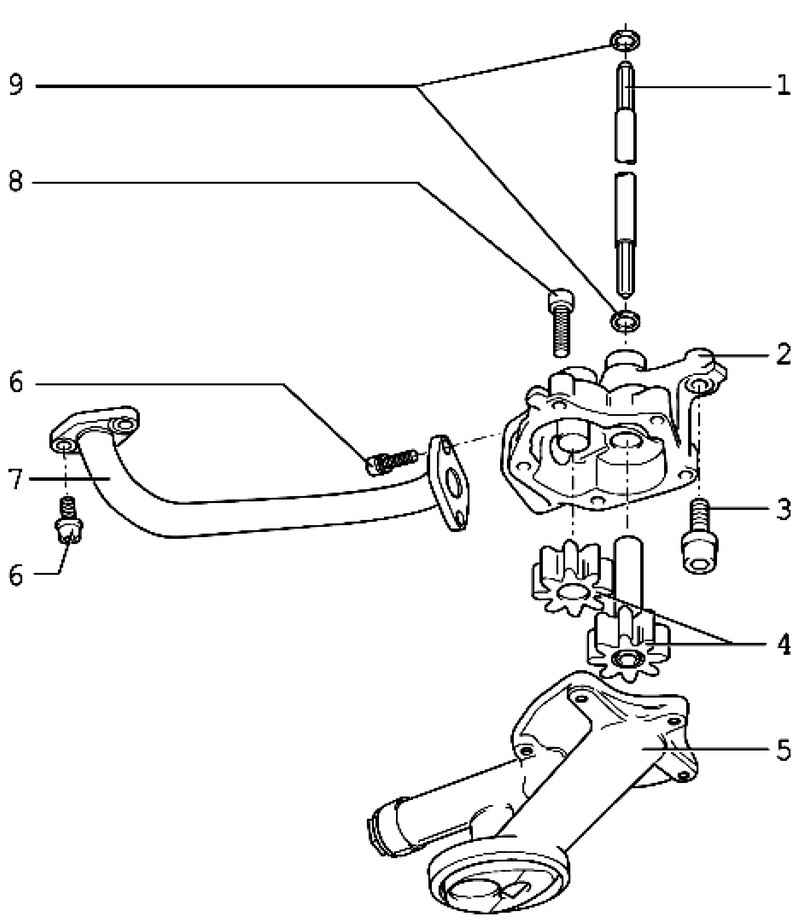

| Fig. 2.253. The components of the oil pump 1 - a power shaft; 2 - oil pump housing; 3 - a bolt 23 Nm; 4 - an asterisk; 5 -kryshka oil pump with safety valve; 6 - a bolt 8 Nm; 7 - pressure oil line; 8 - a bolt 8 Nm; 9 - a sealing ring
|
The oil pump, check backlash

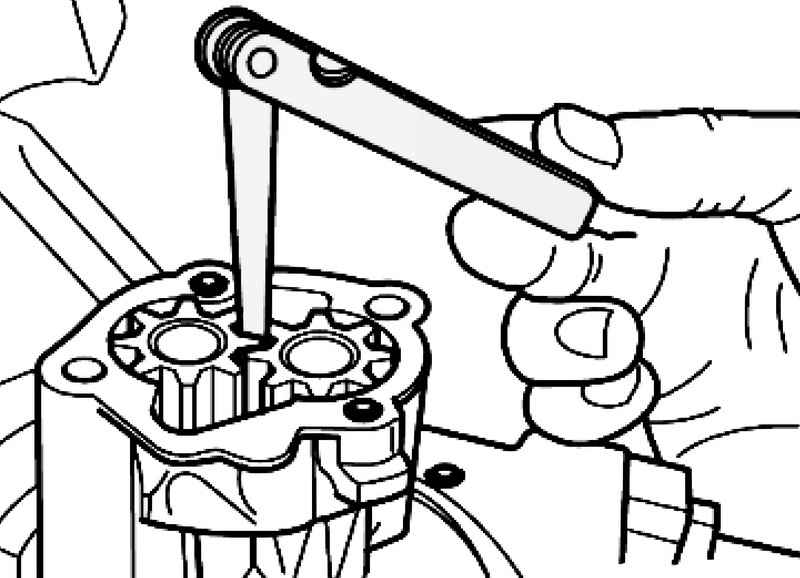

Check backlash. Border wear: 0.20 mm. The oil pump, checking the axial displacement

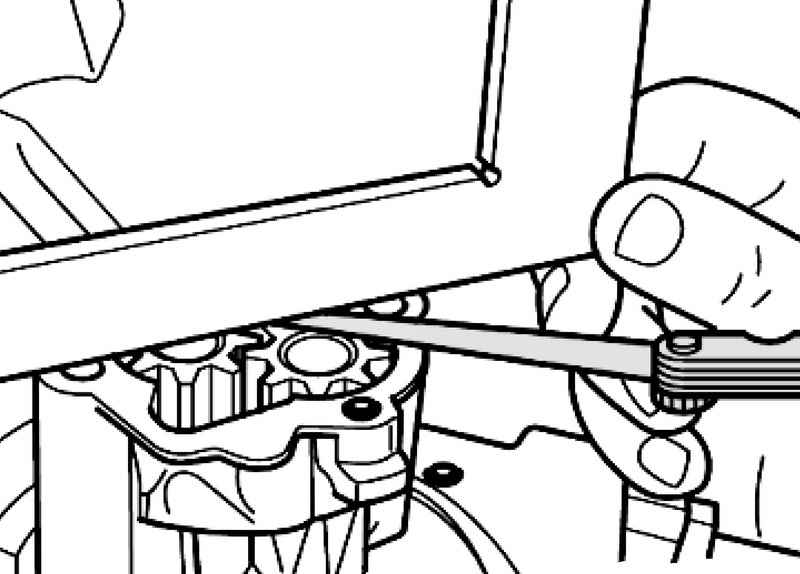

Check the axial displacement. Border wear: 0,10 mm.
|
