Removal and installation of a check valve oil drain

Withdrawal

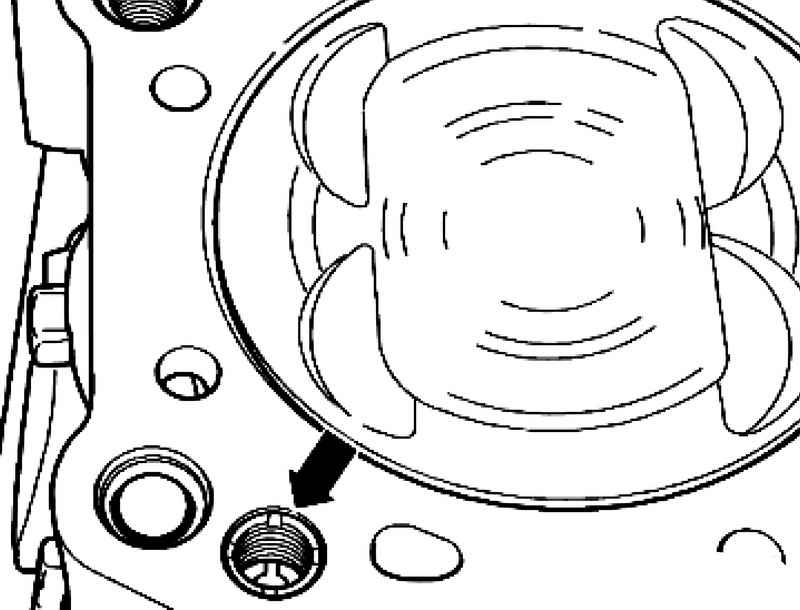

Screw a standard bolt M8h1,5 about 4 turns in the valve - by arrows, and remove the valve from the hole.

Setting

Before installing moisten the O-ring with engine oil. From hand push valve oil channel (Fig. 2.251).

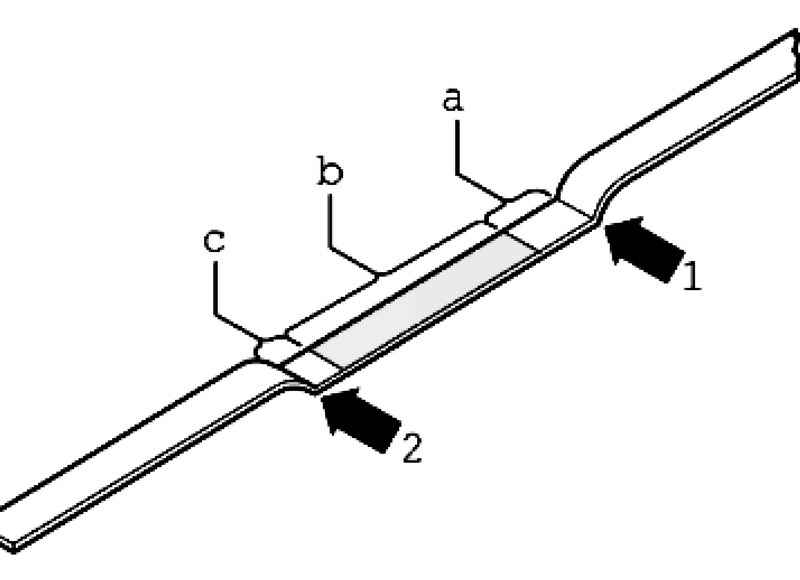

The marks on the dipstick

1 - Mark max.

2 - Mark min.

a - Oil level of grooved area to the maximum mark: Do not top up the engine oil.

b - Current level of grooved area: Engine oil can be topped up.

c - The level of the minimum mark to the grooved area: pour no more than 0.5 liters of engine oil.
