Removing and installing intake manifold



The components of the intake manifold

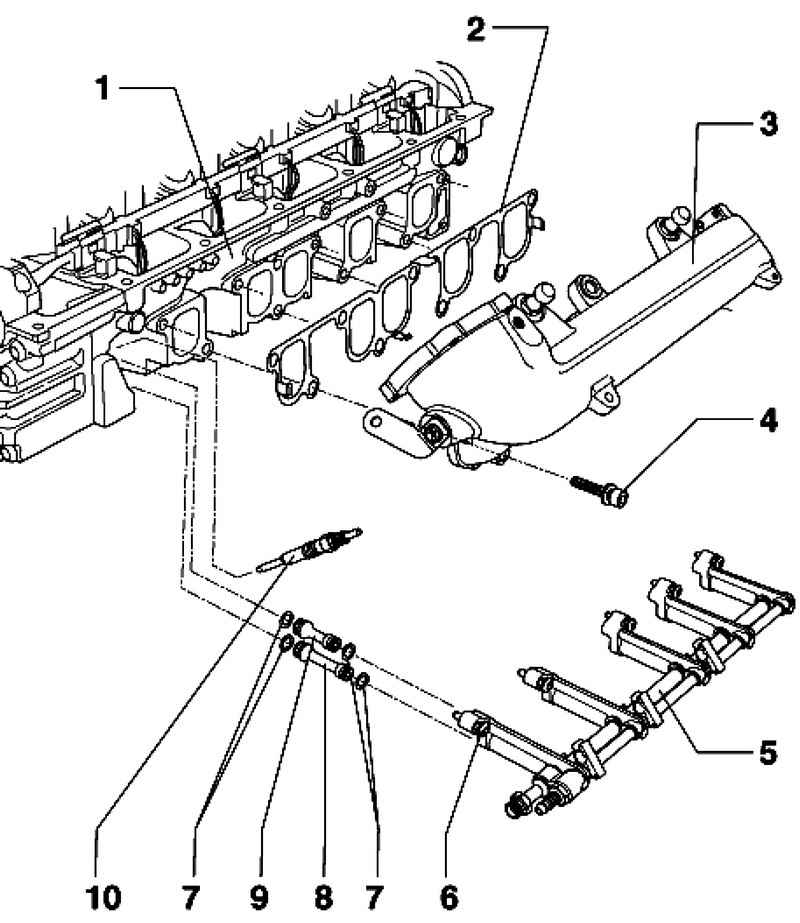

Fig. 2.290. The components of the intake manifold 1 - cylinder head; 2 - consolidation; 3 - the inlet manifold; 4 - a bolt 20 Nm; 5 - Fuel rail; 6 - a bolt 8 Nm + to tighten on 1/4. (90 ?�); 7 - a sealing ring; 8 - coupling; 9 - coupling; 10 - Glow plug, 15 Nm



Terms (vehicles with letter designations Engine AYH, BKW)
The fuel pump must be dismantled.

Cars with engines of BLE and BWF
Bypass cap with EGR cooler must be dismantled.

Continuation of the assembly operations for all vehicles
The upper part of the housing cover must be dismantled.

NOTE
There are shown a number of components of the second cylinder. The mirror image, they correspond to the components of the first row of cylinders.

To remove the intake manifold without dismantling the fuel rail, you must completely remove the intake manifold bolts.
