Replacing the O-rings injectors



Withdrawal
Remove the pump-injector.
Extremely carefully remove the O-rings with unit injectors.
Make sure to fit in place the O-rings do not appear burrs.

Setting
Moving the application of the O-rings without identification color code.

NOTE
When installing the O-rings, always use the mounting sleeve T10056. Otherwise, a great danger of damage to the O-rings.

Watch out for the right balance of O-rings and grooves thickness rings decreases towards the nozzle.
Avoid motion clips when installing the O-rings. The O-rings should not be twisted in the nest injectors.
Remove the heat-insulating seal with lock ring.
Thoroughly clean the mounting surface of sealing rings Krul section at the pump injector.

Installation of mounting sleeves

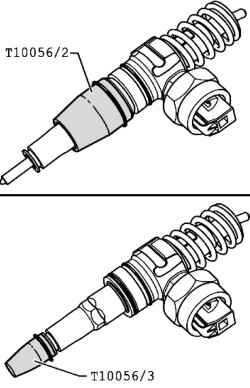

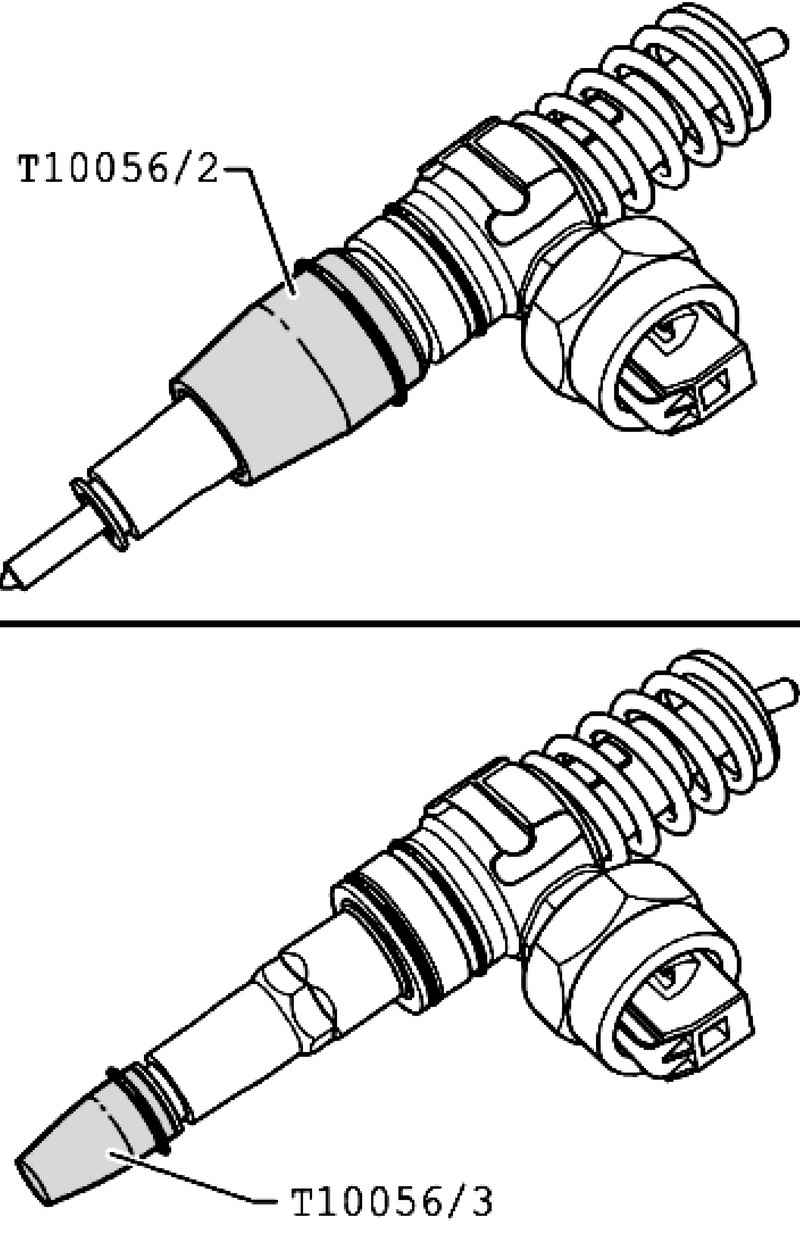

Fig. 2.296. Installation of mounting sleeves


Insert the mounting sleeve T10056 / 1 all the way to the unit injector (Fig. 2.296).
Carefully insert the upper, thick O-ring into the mounting sleeve and the socket unit injectors.
Remove the mounting sleeve.
Insert the mounting sleeve T10056 / 2 all the way to the pump nozzle.
Carefully insert the secondary, thin O-ring into the mounting sleeve and the socket unit injectors.
Remove the mounting sleeve.
Insert the mounting sleeve T10056 / 3 all the way to the pump nozzle.
Carefully insert the lower O-ring into the mounting sleeve and the socket unit injectors.
Remove the mounting sleeve.
Install the new heat-insulating seal with lock ring.
Install the unit injector.
