Removing the motor transfer case V253

If you replaced the transfer case motor V253, keep in mind the following.

New motor transfer case is regulated in a prescribed position.

To facilitate the installation, adjust this position as far as possible on the transfer case.

Switch off the ignition.

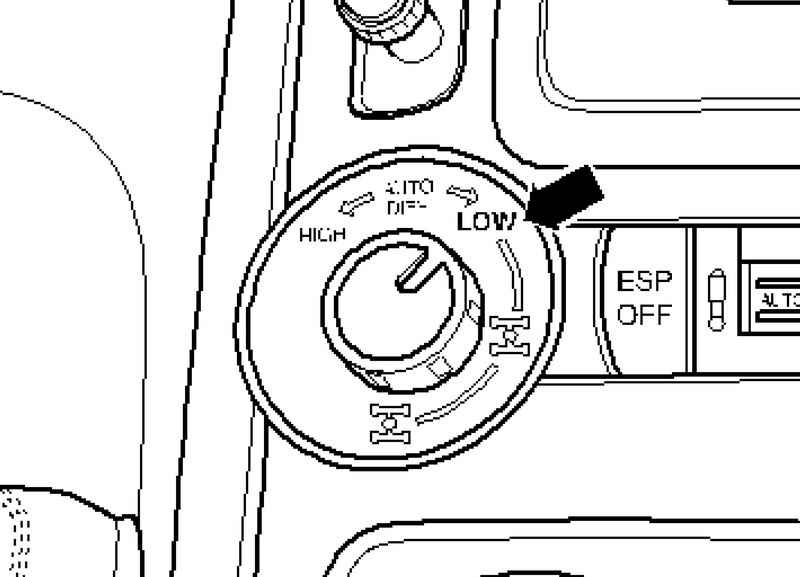

Turn the control element transfer case E473 position ?�LOW / LOW" (Fig. 3.122).

Then turn off the ignition.

If you install the old motor transfer case, the control element E473 is not necessary to rotate the position ?�LOW / LOW".

If there - clear the screen of the motor transfer case.

Disconnect connectors A, B and C.

Remove the bracket D (Fig. 3.123).

Unscrew the bolts and remove the motor transfer case with transfer case (Fig. 3.124).
