Check compression (petrol engine 3,2L)



NOTE
Special tools and workshop equipment, as well as aids:
- Puller T10095 A;
- Torque wrench (5-50 Nm) VA G 1331;
- Compression VA G 1763;
- Candle key 3122 B;
- Installation tool T10118.

NOTE
Engine oil temperature must be at least 30 ?� C.
The battery voltage must be at least 11.5 V.
All electrical consumers, eg lights and rear window heating must be switched off.
If the car is equipped with air conditioning system, it should also be turned off.
In cars with automatic transmission selector lever to translate the ?�P?� or ?�N?�.

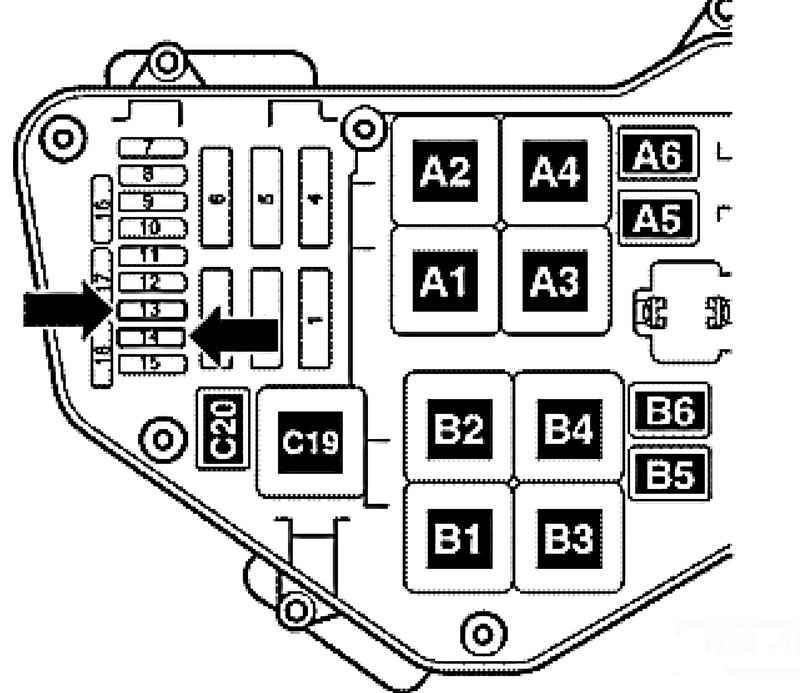

Location of fuses
Fig. 2.14. Location of fuses


Fuses 13 and 14 (arrows in Figure 2.14) should be removed from their sockets.

Checking procedure
Remove the engine cover.
Remove ignition coils with output stages.
Remove the spark plugs candle key 3122 B.
Measure compression using compression tester VA G 1763.
The assistant should fully press the accelerator pedal and start the engine.
Turn the starter until compression tester readings will cease to increase.
The value of compression:
- New: 10-13 bar;
- The boundary of wear: 7.5 bar;
permissible difference between all cylinders: 3 bar.
Screw the spark plug spark plug wrench 3122B and tighten them to a torque of 20 Nm.

After completing installation work
Connect tester VAS 5052.
Test the automotive systems.
Complete testing of automotive systems to create because of the mounting error records are automatically deleted.
Perform a test drive.
Create an OBD code reader and take a test ride.
Observe the test drives for security measures.
Then re-run the test vehicle systems and eliminate the presence of the error.
