Removal and installation of the top casing of the engine

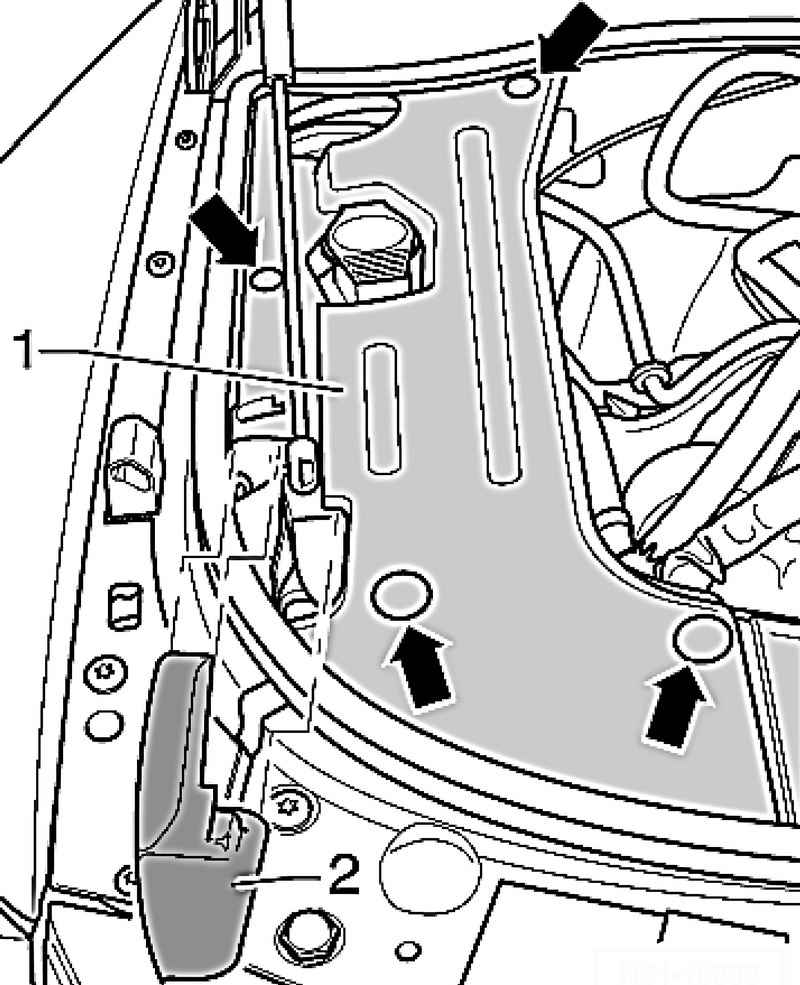

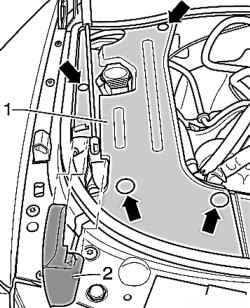

Removal of the right-side engine cover
Remove the cover 2.

Remove the cover from the mounts
Fig. 2.10. Remove the cover from the mounts


Remove the engine cover from the mounts (arrow in Figure 2.10) and pull it up.

Removal of the central casing of the engine compartment (6-cylinder petrol engine)

Remove cover
Fig. 2.11. Remove cover

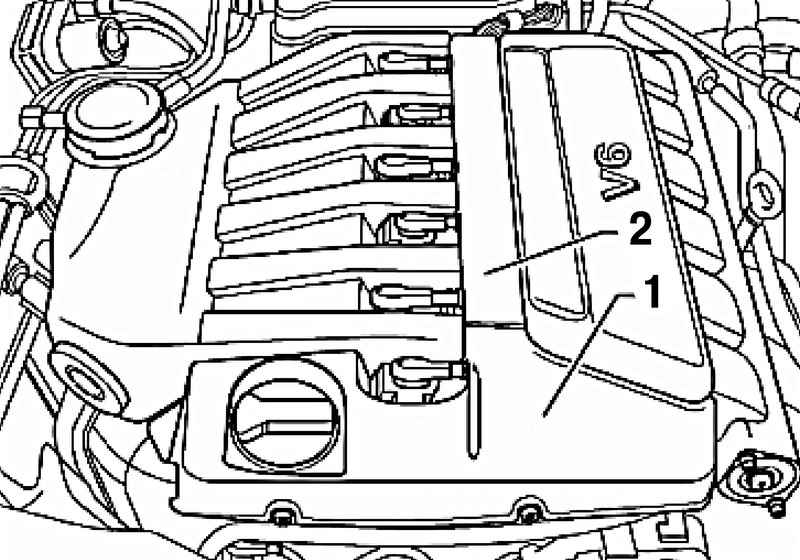

Rasklipsuyte engine casings 1 and 2 and pull them up (Fig. 2.11).

ATTENTION
When installing the engine cover, namely when fixing it to the fixing points, do not use brute force or use tools. Otherwise, you may damage the engine cover.

Removal of the central casing of the engine compartment (10-cylinder diesel engine)
2 Remove the dipstick measurement of the oil level.

Attaching the central casing of the engine compartment (10-cylinder diesel engine)
Fig. 2.12. Attaching the central casing of the engine compartment (10-cylinder diesel engine)

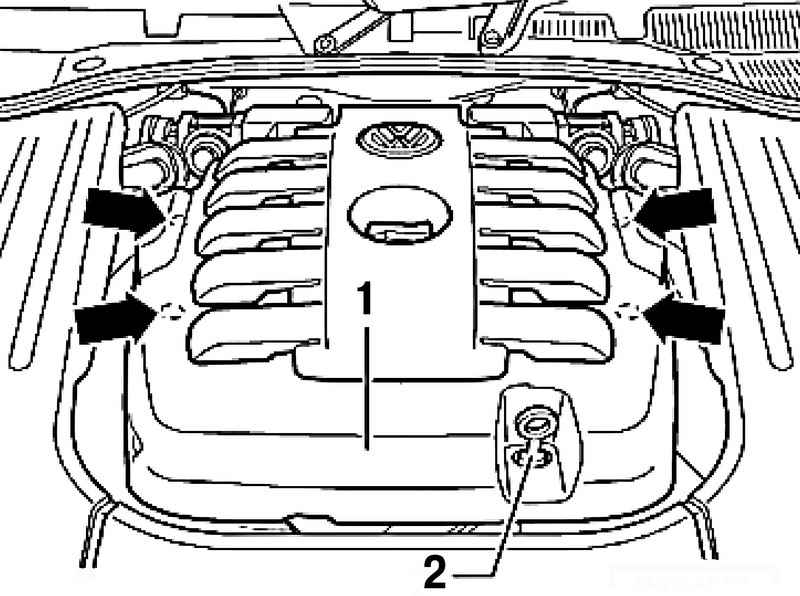

Otklipsuyte casing 1 by fasteners (arrows in Figure 2.12) and lift it up.

Setting
Install the engine cover 1 on the attachment point and press down so that the latches lock.
Do not forget to install the dipstick.

Removal of the central casing of the engine compartment (6-cylinder diesel engine TDI Common Rail)

Fixing the central casing of the engine compartment (6-cylinder diesel engine TDI Common Rail)
Fig. 2.13. Fixing the central casing of the engine compartment (6-cylinder diesel engine TDI Common Rail)

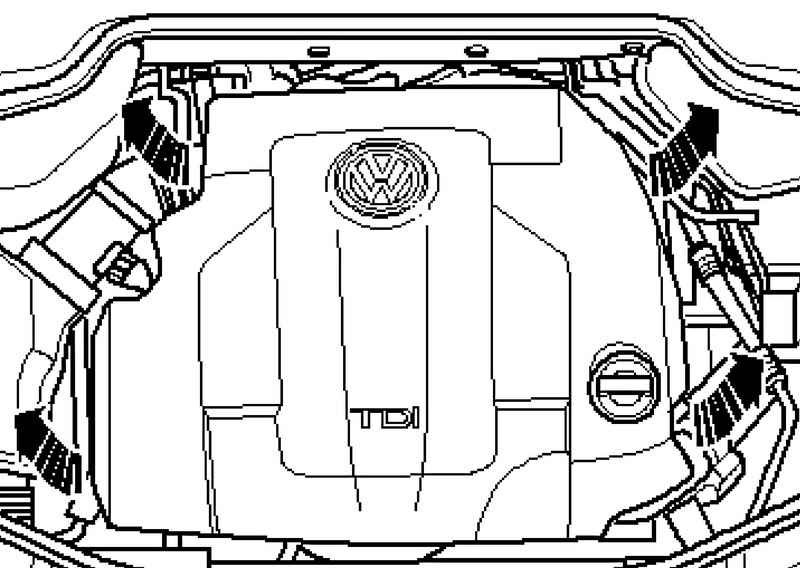

First, remove the engine cover with both hands in front (in direction of travel) (arrow in Figure 2.13), then lift it with both hands behind (in the area of the wall of the engine compartment).

NOTE
When removing the cover, do not lift the motor jerk.
When removing the engine cover set exactly.

Setting
Position the engine cover at the points of attachment, pay attention to the oil fill tube and dipstick.
Push the engine cover at the attachment points front and rear so that the latches lock.
