Removal and installation of a three-phase generator, 8-cyl. injection engine



Withdrawal

Contour V-belt 8-cyl. injection engine

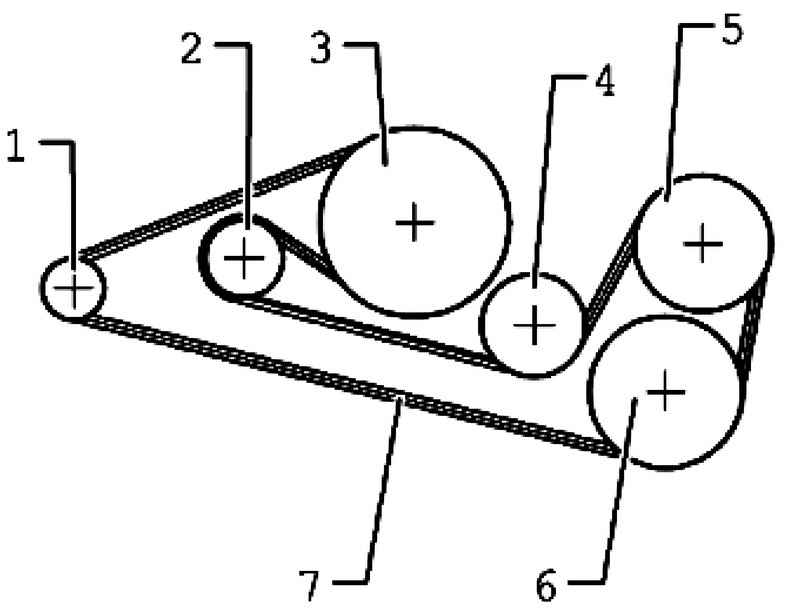

Fig. 7.60. Contour V-belt 8-cyl. injection engine 1 - a pulley belt transmission - three-phase generator; 2 - a tension roller; 3 - a pulley belt transmission - the crankshaft; 4 - discharge roller; 5 - a pulley belt transmission - air-conditioning compressor; 6 - a pulley belt transmission - vane pump Power Steering; 7 - ribbed belt - three-phase generator, vent clip, air conditioning compressor, power steering vane pump mechanism, crankshaft, water pump and a tension roller



Remove the engine.

Loose V-ribbed belt

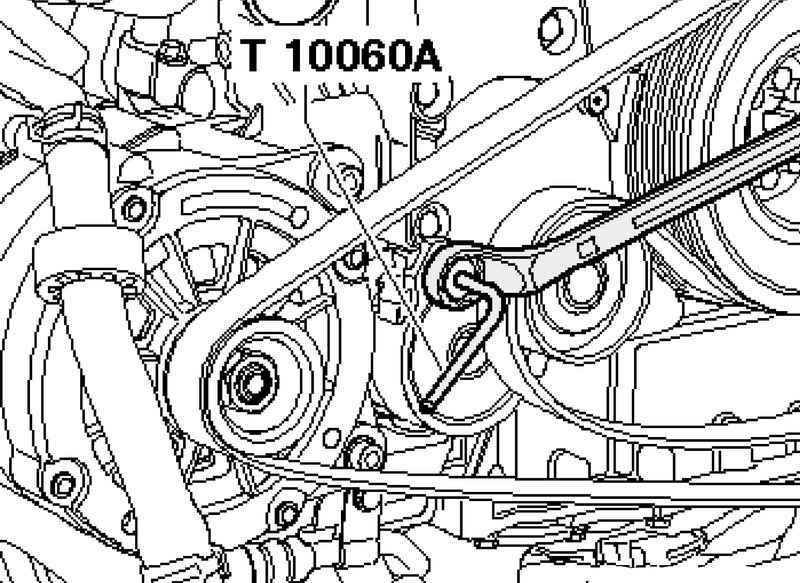

Fig. 7.61. Loose V-ribbed belt


Loosen the serpentine drive belt tension element provernuv using box wrench with SW 19 (Fig. 7.61).
Fix the tension element by means of locking pin T10060 A.

Plug wire DF

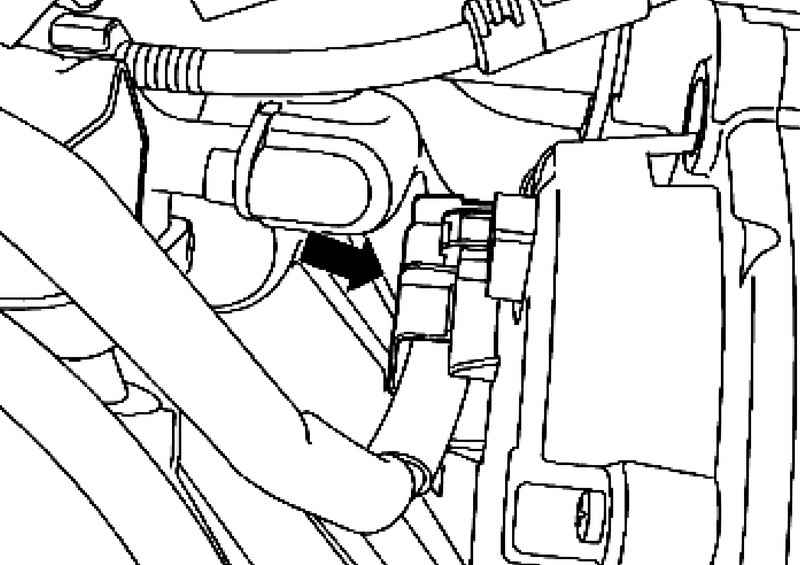

Fig. 7.62. Plug wire DF


Disconnect the cable connector DF (Fig. 7.62).

Protective cap

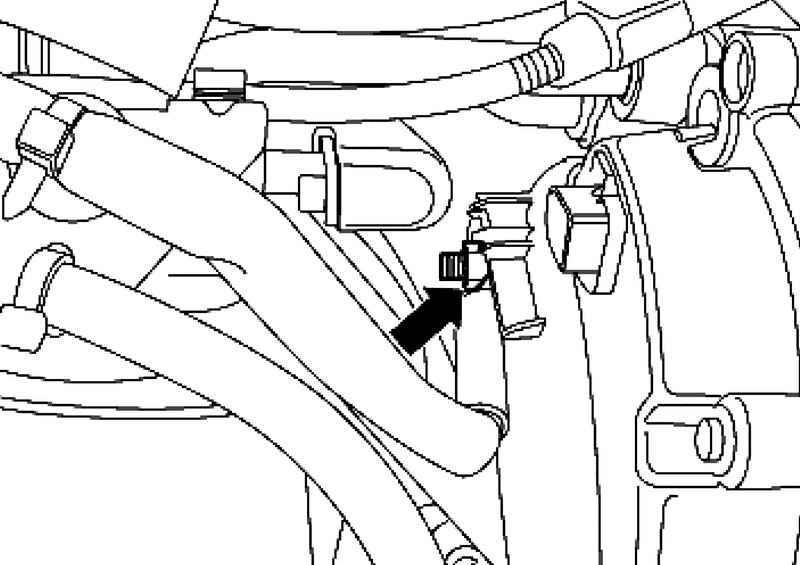

Fig. 7.63. Protective cap


Remove the protective cap (Fig. 7.63).

Attaching the wires B +

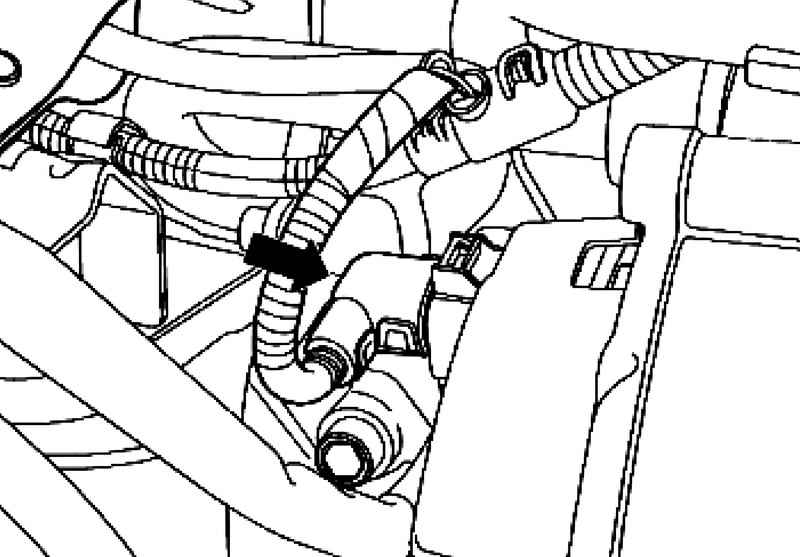

Fig. 7.64. Attaching the wires B +


Remove the wire from the generator B + (Fig. 7.64).

Holder pipes of the cooling system

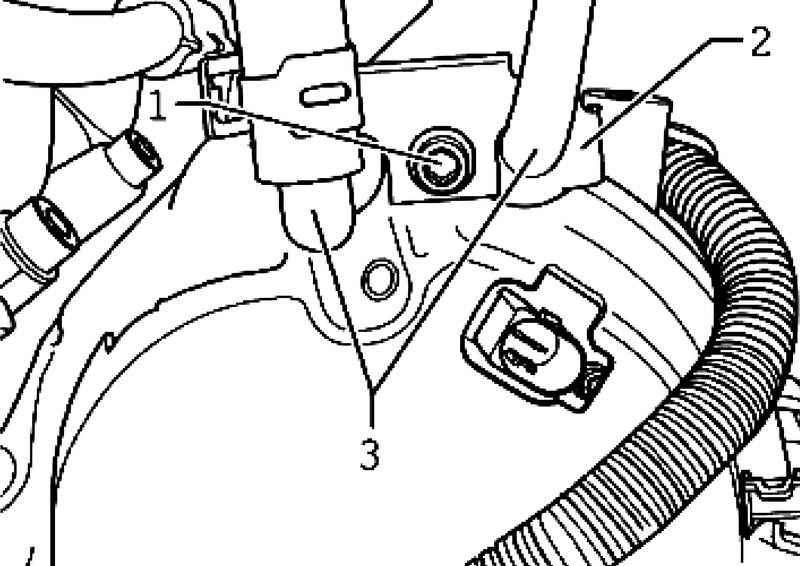

Fig. 7.65. Holder pipes of the cooling system


1 Remove the fixing bolt and remove the holder 2 tubes of the cooling system from the generator (Fig. 7.65).
Remove the tube cooling system 3 of the generator.

Fixing screws M8h90 generator

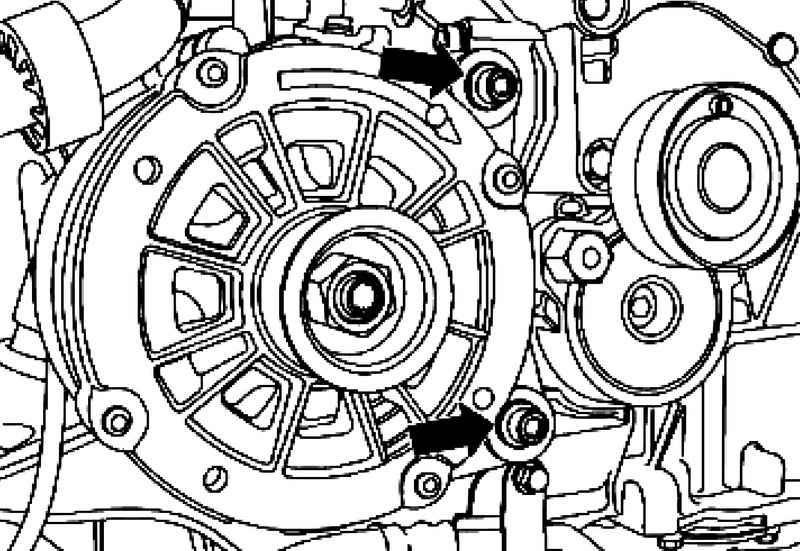

Fig. 7.66. Fixing screws M8h90 generator


Remove the fixing bolts M8h90 generator (Fig. 7.66).

Setting
Install in reverse order, with the following should be considered.
Tighten to the specified torque.
Replace seals coolant tubes.
