Removing and installing starter (6-cyl. Engine with injection 3.2 liter engine and a 3.6 liter FSI, automatic transmission)



Withdrawal
Disconnect the battery.
Remove noise insulation.

Insulation magnetic switch

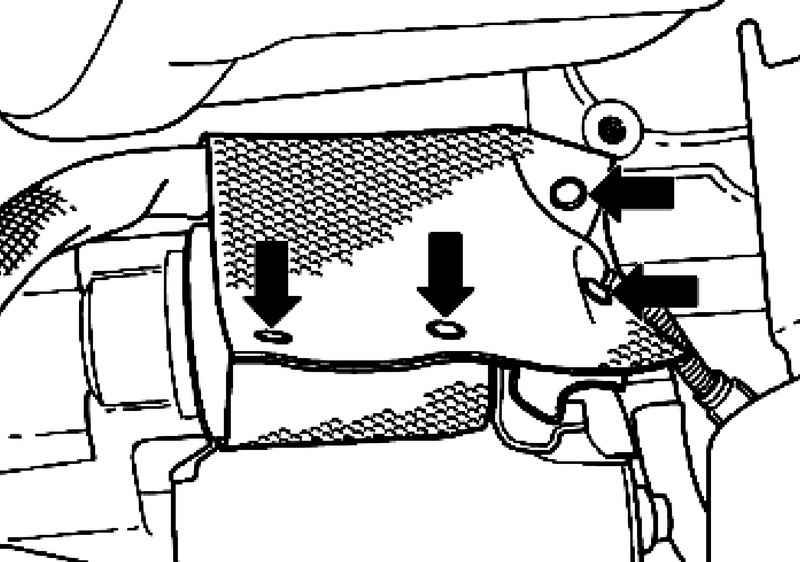

Fig. 7.24. Insulation magnetic switch


Click the button and remove the insulation of the magnetic switch (Fig. 7.24).
Pry the protective cap mounting nuts.

Fixing nut positive cable

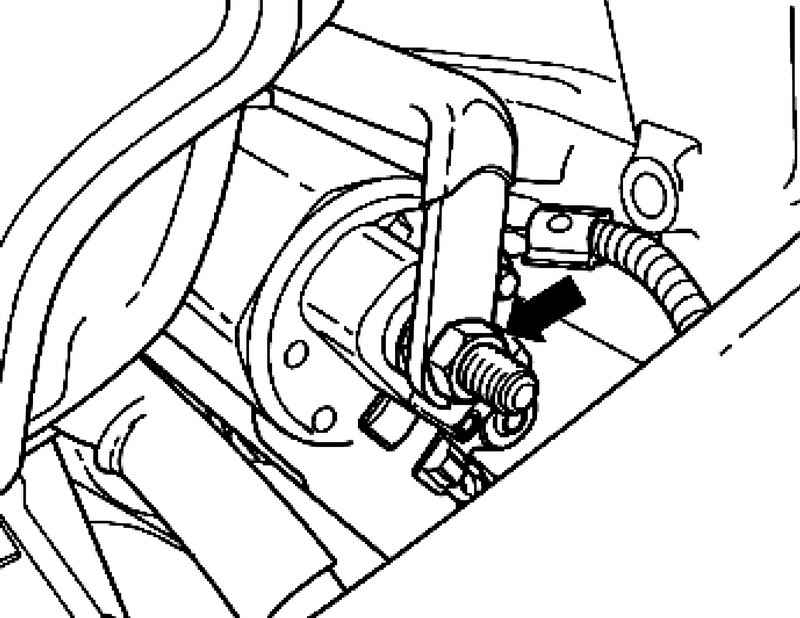

Fig. 7.25. Fixing nut positive cable


Unscrew the fixing nut positive cable from the starter solenoid switch (Fig. 7.25).

Fixing nut cable terminals 50 of the electromagnetic switch of a starter

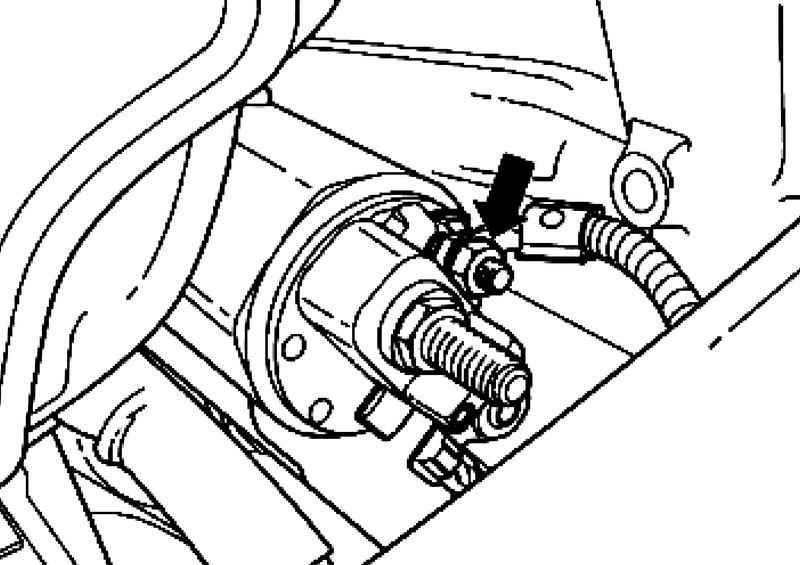

Fig. 7.26. Fixing nut cable terminals 50 of the electromagnetic switch of a starter


Unscrew the fixing nut of the cable terminal 50 from the solenoid starter switch (Fig. 7.26).

ATTENTION
Perhaps twisted wires with screw connection.
The magnetic switch may be damaged.
When loosening and tightening the positive wire and wire terminals 50 lock wrench screw connection with a magnetic switch.

Fixing bolt M12h60 starter motor side

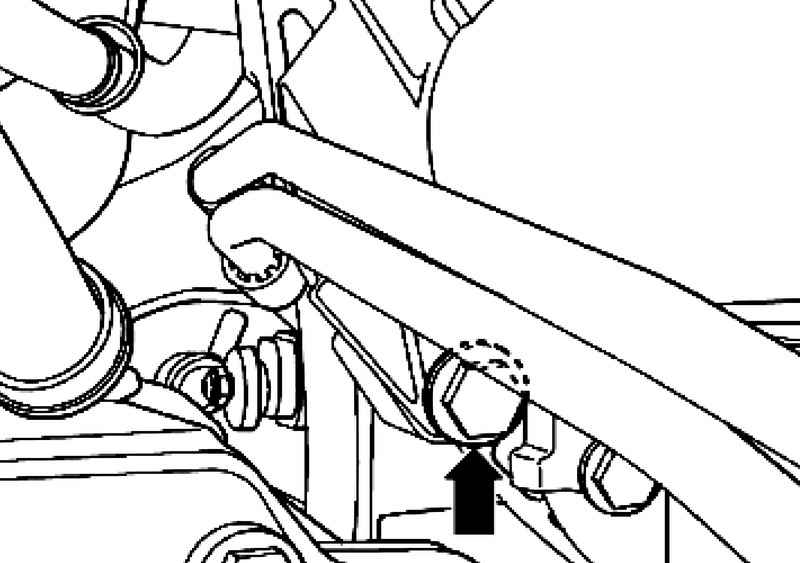

Fig. 7.27. Fixing bolt M12h60 starter motor side


Remove the lower mounting bolt M12h60 starter on the motor side (Fig. 7.27).

Fixing bolt cable holder

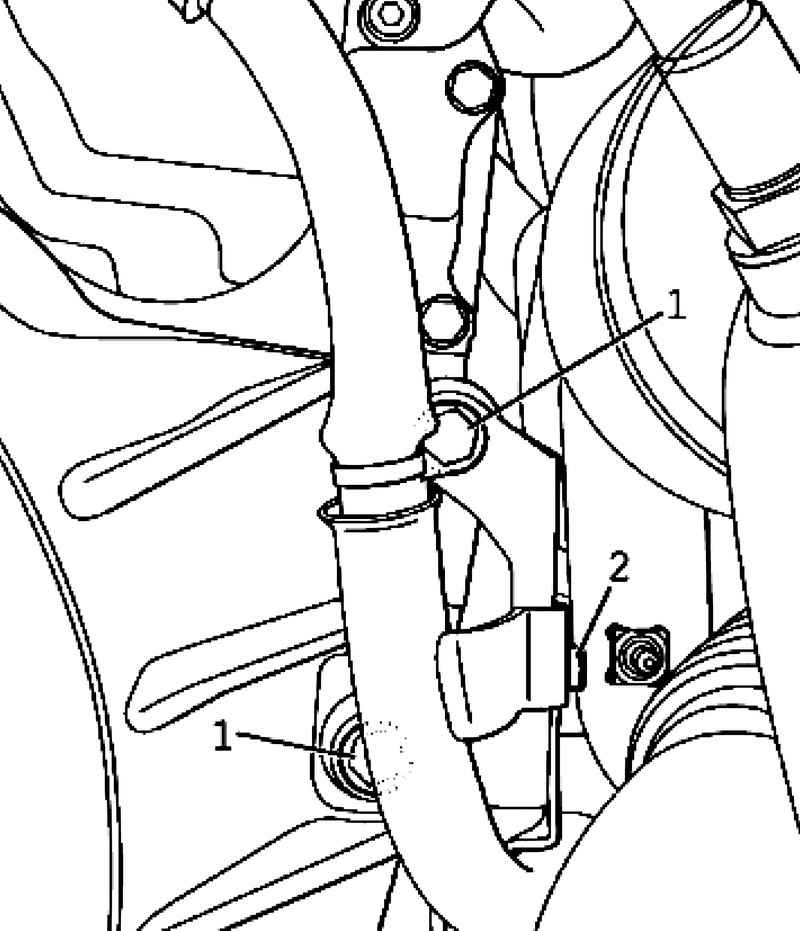

Fig. 7.28. Fixing bolt cable holder


Remove the retaining bolt 2 of the cables and set the cable in the direction (Fig. 7.28).
Turn off fixing nuts 1.

Fixing bolt of the exhaust system

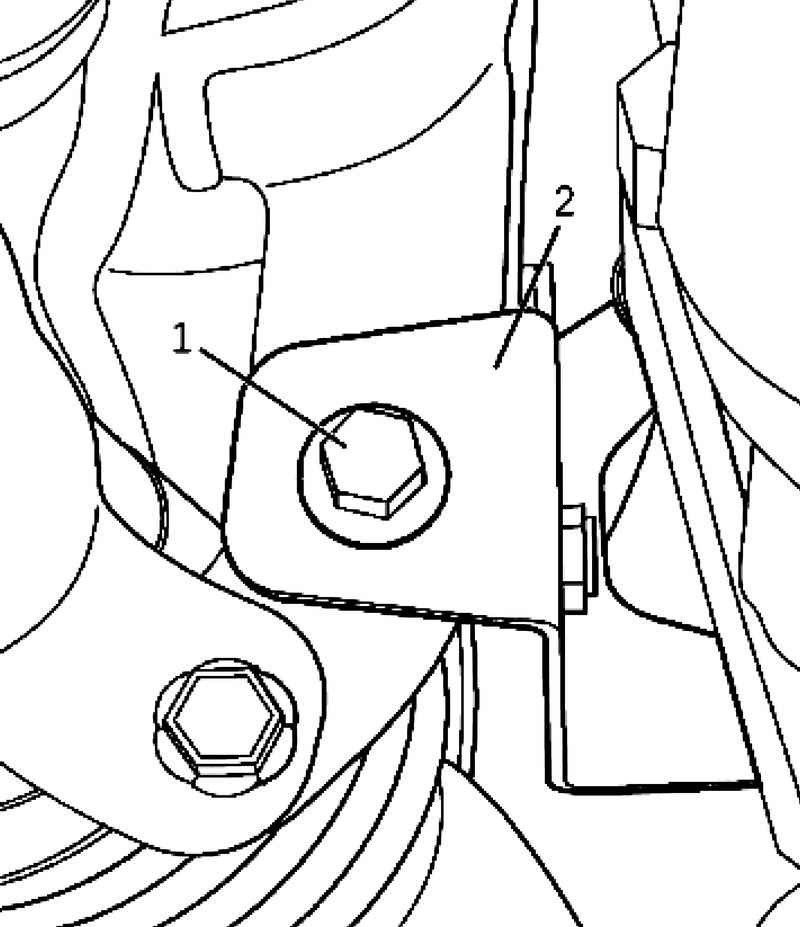

Fig. 7.29. Fixing bolt of the exhaust system


Remove from the engine mounting bolt 1 of the exhaust system 2 and remove it (Fig. 7.29).

Fixing screw tube cooling system for the engine oil pan

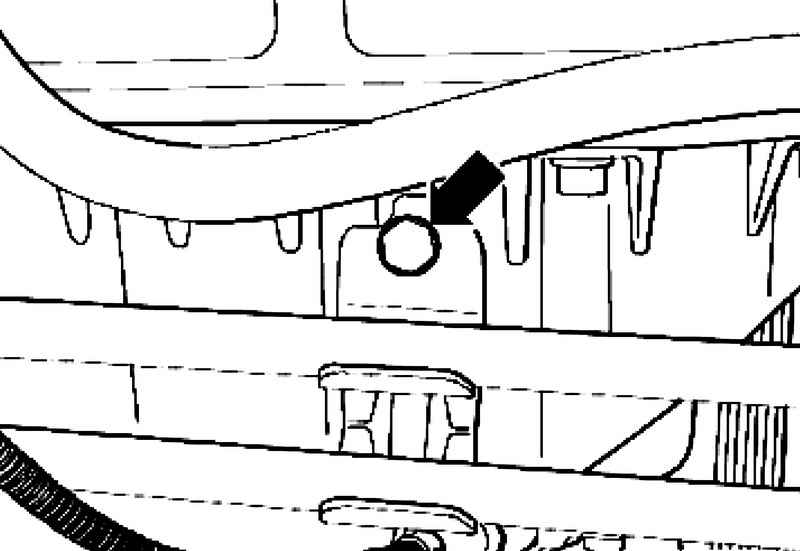

Fig. 7.30. Fixing screw tube cooling system for the engine oil pan


Remove the mounting bolt tubes cooling system for the engine oil pan (Fig. 7.30).

Upper mounting bolt on the side of the starter gearbox

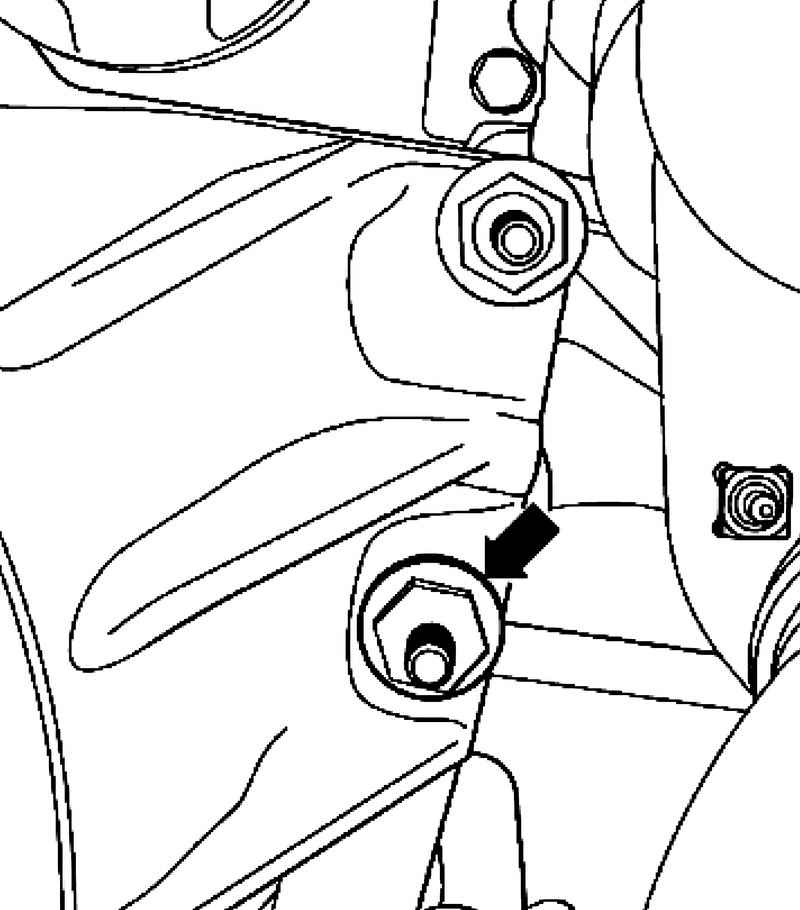

Fig. 7.31. Upper mounting bolt on the side of the starter gearbox


Remove the upper starter mounting bolt on the side of the gearbox (Fig. 7.31).
Remove the starter.

Setting
Install in reverse order, with the following should be considered.
Tighten to the specified torque
