Removing and installing rear level sensor body G76 / G77



Arrangement rear level sensor body

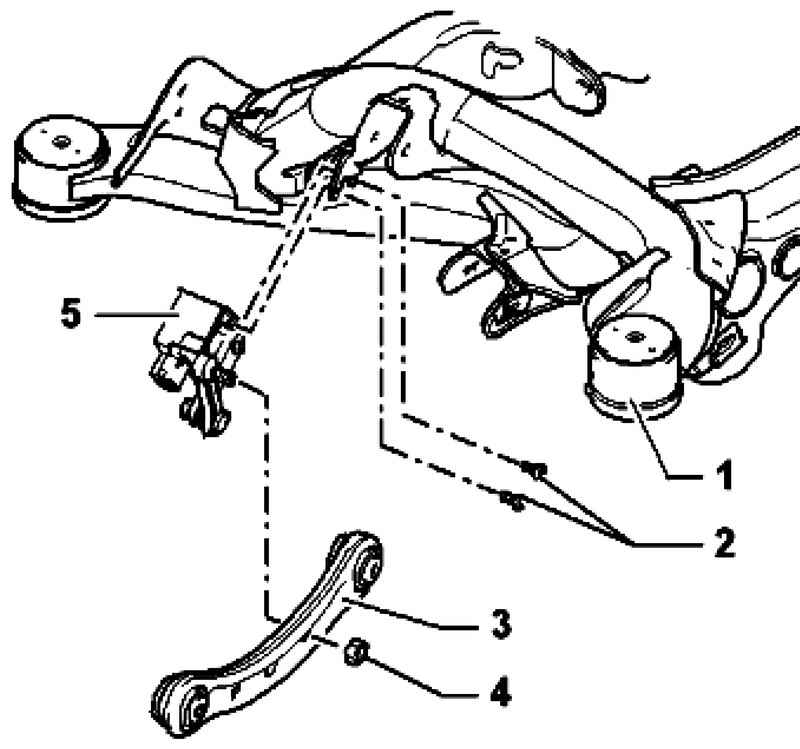

Fig. 4.85. Arrangement rear level sensor body: 1 - subframe; 2 - Allen screw 5 Nm; 3 - wishbone, upper front; 4 - a nut, self-locking, 8 Nm; 5 - Rear level sensor body



Withdrawal
Raise the vehicle.
Disconnect the electrical connection on the rear level sensor body.
2 Remove the screws and the nut 4 and remove the rear level sensor body.

Setting
Rear level sensor body 2 to bolt the subframe.
Screw the finger ball joint with a new nut 4 to the upper front transverse arm.
This joint between the lever rear level sensor body and the connecting rod should be directed downward.
Tighten all bolts the corresponding moment.
Lower the car on wheels.
Perform the basic adjustment of the back gauge the level of a body by using tester VAS 5051.
