Suspension rear wheels

NOTE

If you replace the parts with rubber legs or loosen nuts and bolts on these items, prior to tightening the support on the wheel must be brought into a position where it operates its own weight of the car A indicates the direction of movement

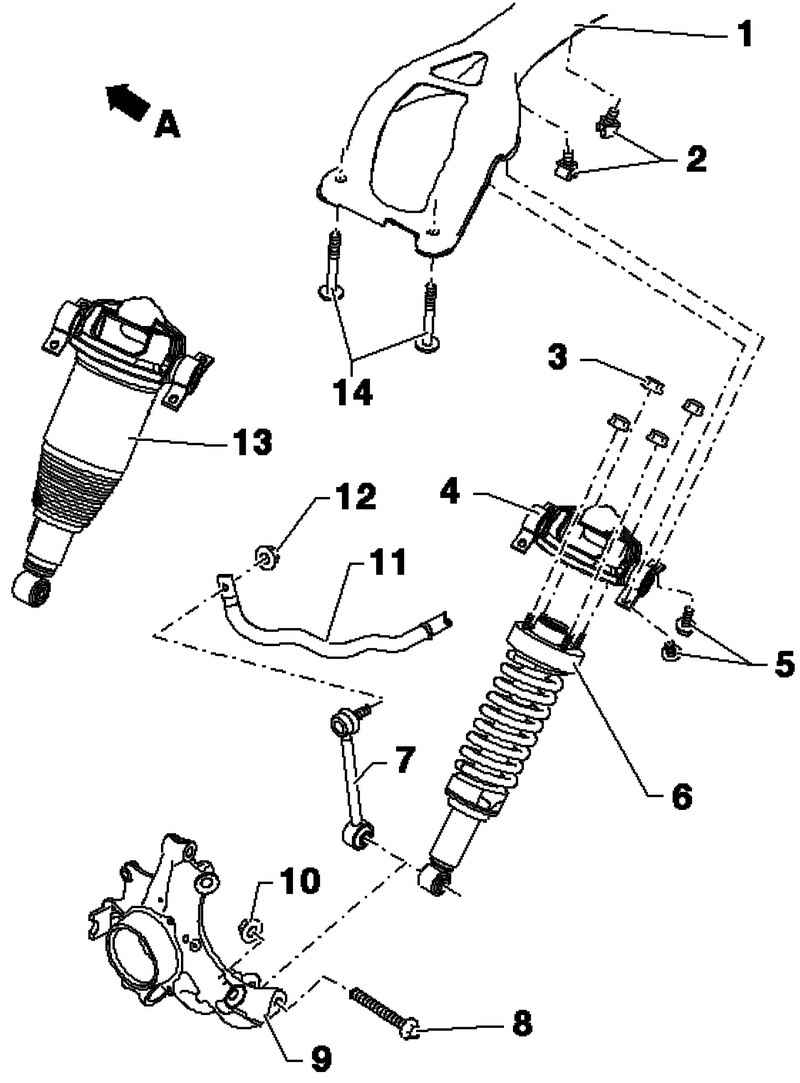

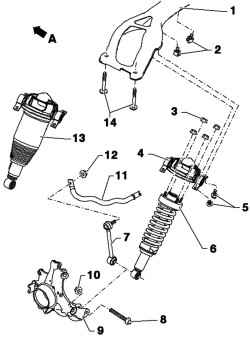

Fig. 4.86. Components of the suspension of the rear wheels: 1 - cross; 2 - a clip; 3 - Self-locking nut; 4 - support bracket; 5 - hex bolt; 6 - Suspension Strut; 7 - the connecting rod; 8 - hex bolt; 9 - wheel bearing housing; 10 - Self-locking nut; 11 - stabilizer; 12 - Self-locking nut; 13 - Pneumatic elastic element; 14 - hex bolt
