Removing and installing strut
Withdrawal
ATTENTION Switchable stabilizers before starting work you must turn. Otherwise inadvertent inclusion of stabilizers can lead to injury. |

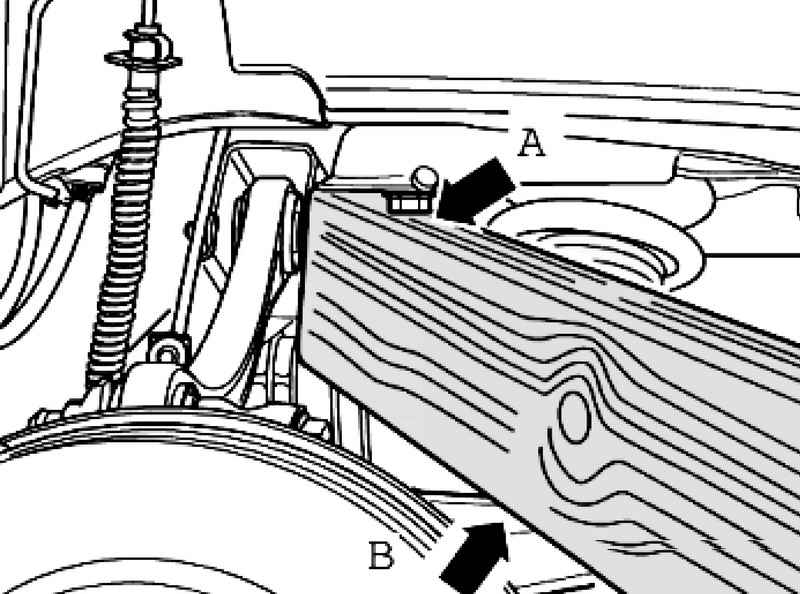

Insert a wooden block between the bottom of A and the upper rear lever B (Fig. 4.88). It is necessary to press down the bearing housing hub.

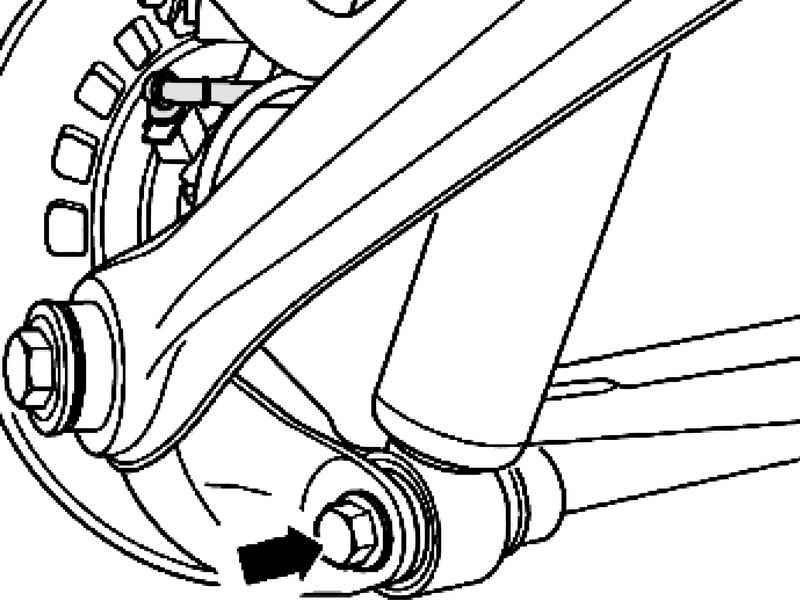

Then press the bearing housing with the help of a piece of wood down so that it was possible to remove the bolt. Remove spring strut.
Setting Installation is carried out in reverse order.
Tightening torques Fixing strut to the body - 60 Nm Strut to the bearing housing (Use the new bolt and nut) - 90 Nm + 90 ?�
|
