Removing and installing strut

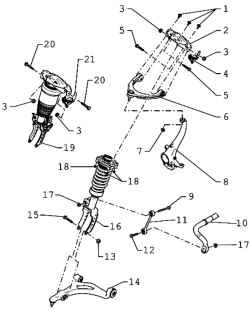

| Fig. 4.67. The components of the front suspension: 1 - hex bolt; 2 - support bracket; 3 - Self-locking nut; 4 - the gauge of the level of the body; 5 - hex bolt; 6 - upper arm; 7 - Self-locking nut; 8 - the case of the wheel bearing; 9 - hex bolt; 10 - stabilizer; 11 - the connecting rod; 12 - hex bolt; 13 - Self-locking nut; 14 - lower arm; 15 - hex bolt; 16 - Suspension Strut; 17 - Self-locking nut; 18 - Self-locking nut; 19 - Pneumatic elastic element; 20 - hex bolt; 21 - the gauge of the level of body
|
Withdrawal Remove the wheel. Remove the connecting rod to the stabilizer. Remove the drive shaft of the main gear. To loosen the bolts using a nozzle with a nominal diameter of 12 mm and a nozzle with a nominal diameter of 14 mm.

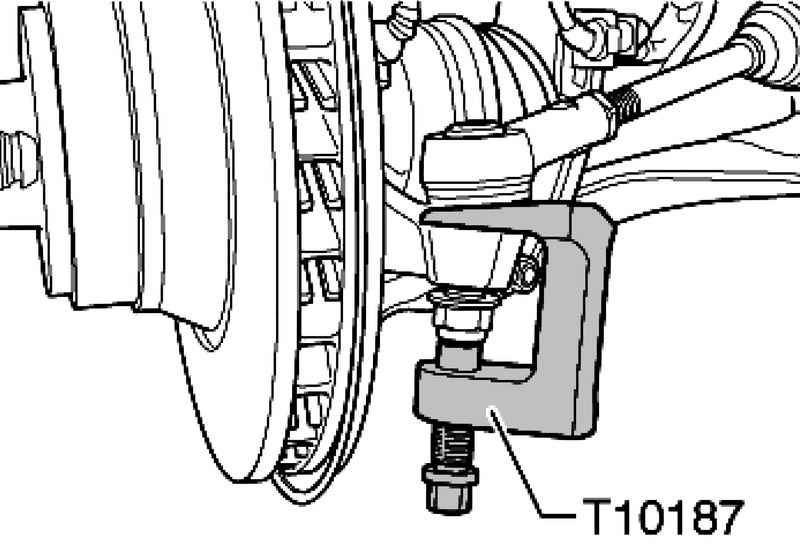

Turn the wheel hub in a position to one of the holes for the wheel bolts was at the top. Attach support T10149 using the wheel bolt.

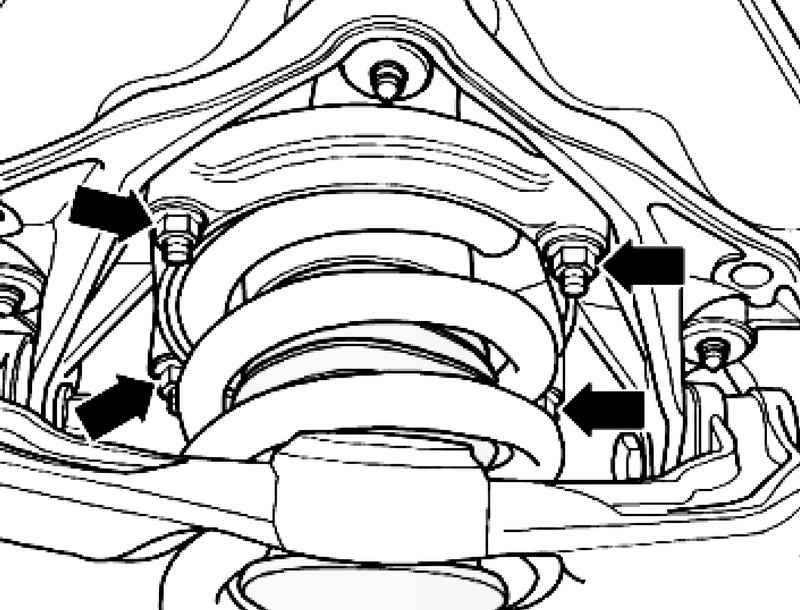

Remove the bolt strut to the lower arm. Housing lower wheel bearing no more than is required. Remove the bolt from the lower arm and remove the spring strut.
Setting Installation is carried out in reverse order.
Tightening torques
|
