Removing coil spring

Compress the spring so as to release the upper spring cup.

Loosen the hex nut on the piston rod.

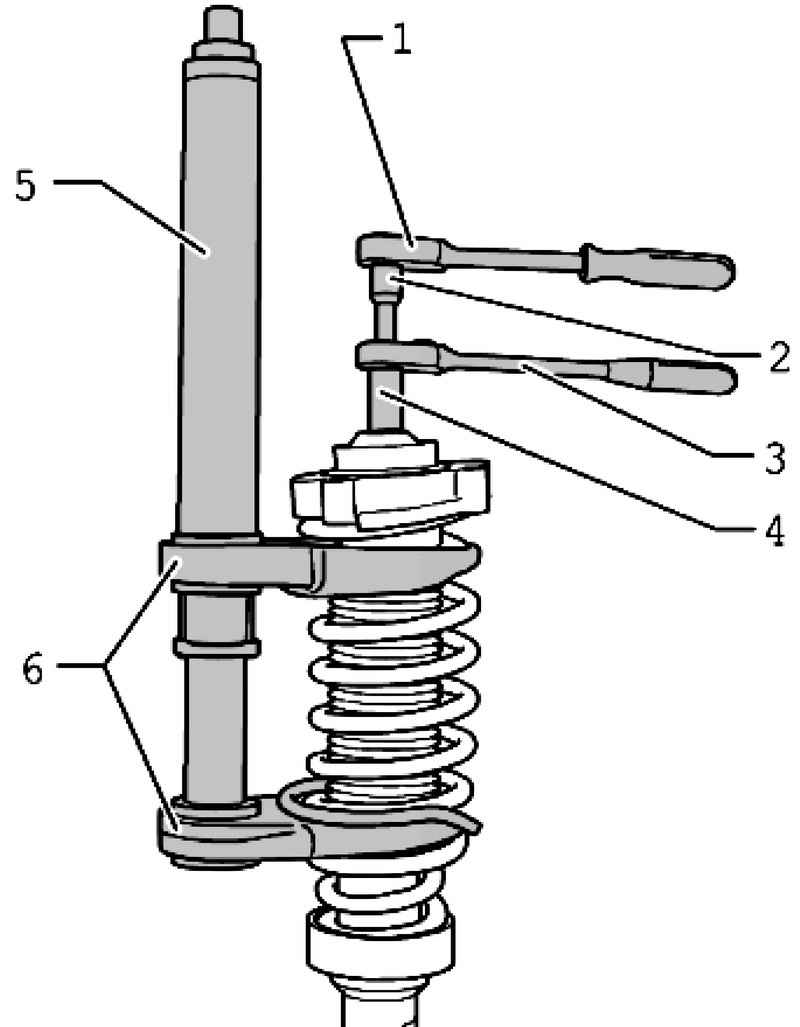

Fig. 4.80. Removing the coil spring 1 - Ratchet (regular); 2 - T10001 / 14; 3 - T10001 / 11; 4 - T10001 / 5; 5 - VAS 6046; 6 - VAS 6046/3

Remove the individual parts and the spring strut via tie VAS spring 6046 and spring retainer VAS 6046/3 (Fig. 4.80).

ATTENTION

First compress a spring so as to relieve the upper spring cup.

Fig. 4.81. The correct position of the spring holder

Ensure the correct position of the spring holder VAS 6046/3 (Fig. 4.81).
