Removing the leash wiper on the driver



Withdrawal

Protective Cap

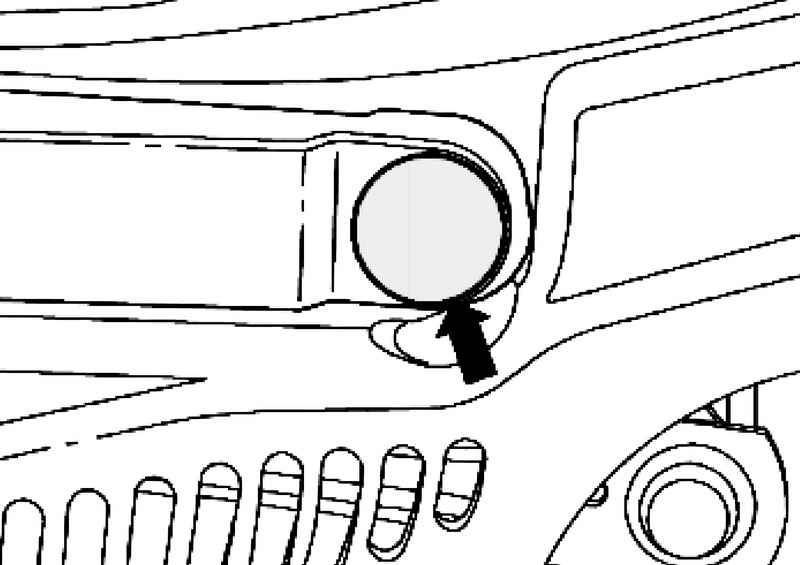

Fig. 7.77. Protective Cap


Remove the cap by gently prying it with a screwdriver (Fig. 7.77).

Fixing nut wiper

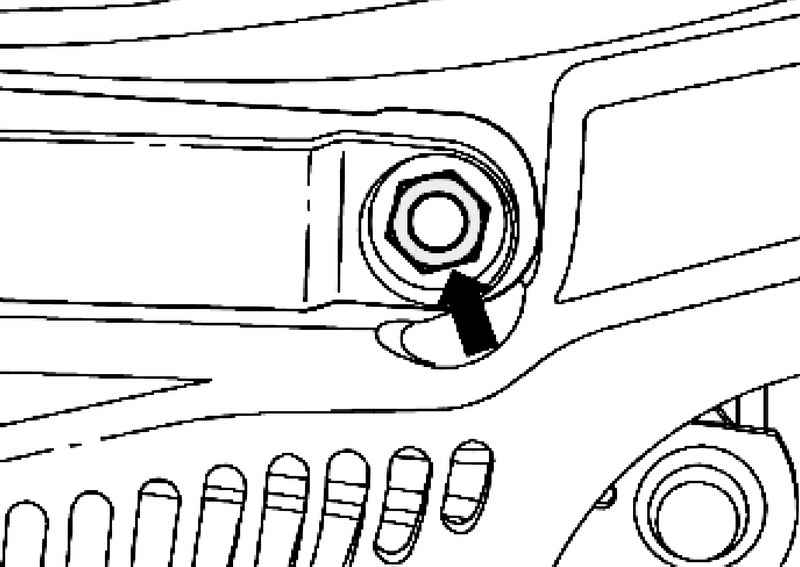

Fig. 7.78. Fixing nut wiper


Loosen, but do not remove mounting nuts completely (Fig. 7.78).
Gently shake the wiper arm that he walked away from the wiper crank.
Now remove the retaining nut completely and remove the leash with the wiper crank.
