Removing the leash wiper on the passenger side



NOTE
The drive is only a crank, pictured on the right.

Withdrawal
Unscrew the fixing nut 1 axis of wiper arms.

Nuts wiper arms and crank

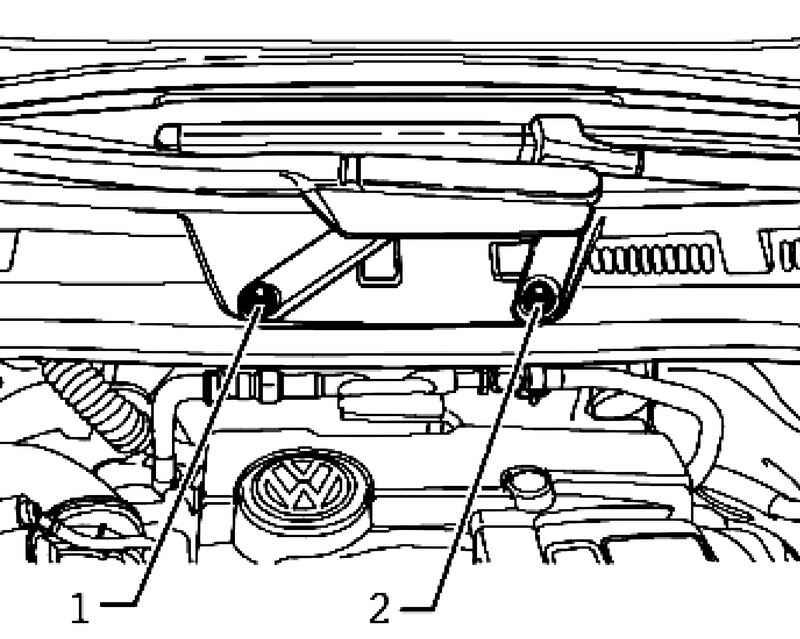

Fig. 7.79. Nuts wiper arms and crank


Unscrew the fixing nut of the crank 2 (Fig. 7.79).
Remove the washer 1 from the axis of wiper arms.

Removing the cone

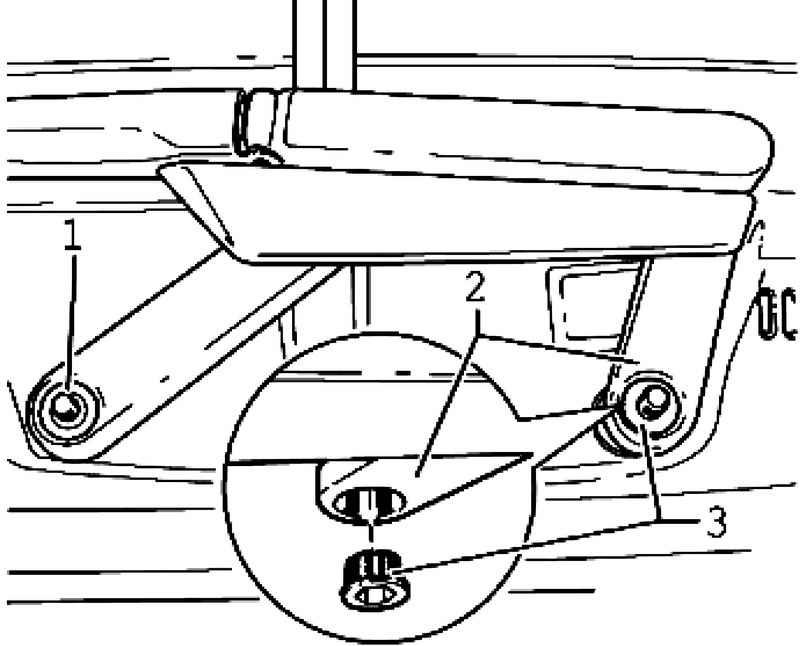

Fig. 7.80. Removing the cone


Gently shake the lead 2 up and down, so you can easily remove the cone 3 of the leash wiper 2 (Fig. 7.80).
Remove the leash.
