Replacement of the crankshaft oil seal on the side of the timing of the engine
The order of execution of works

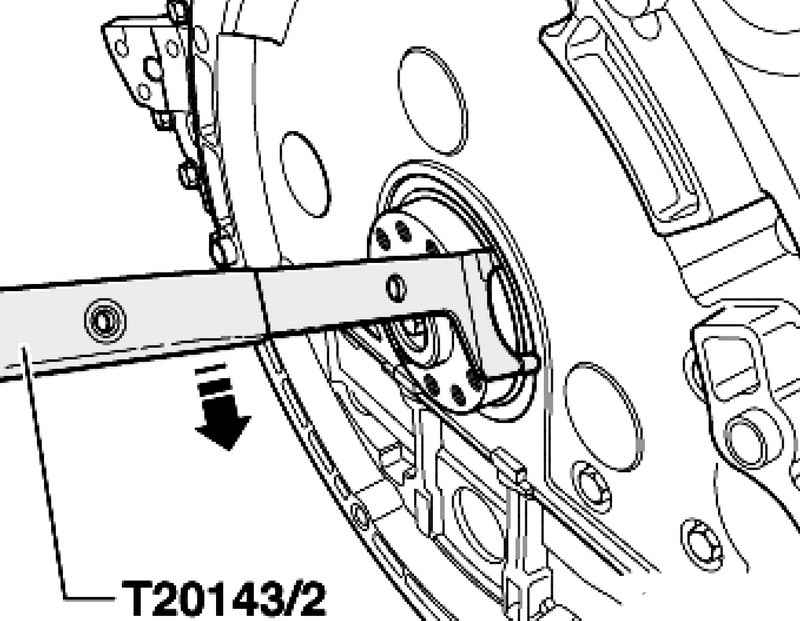

Carefully remove the old seal ring using puller T20143 / 2 (Fig. 2.177).
NOTE When removing the oil seal, make sure that the landing surface was not damaged. |
Remove the remaining oil on the crank pin of the crankshaft with a clean cloth.
Connect the mounting sleeve T10207 / 1 and the mounting sleeve T10207 / 2. Put the oil seal A to stop the mounting sleeve T10207 / 2 (Fig. 2.175). Disconnect the mounting sleeve. Install the mounting sleeve T10207 / 2 together with the gland seal on the crankshaft and tighten the thumbscrews A by hand.
Fitting the seal with the mounting sleeve T1207 / 3 to the stop (Fig. 2.176). Further installation is performed in reverse order.
|
