The front gasket flange and the vibration damper

Tighten mounting bolts in the shown sequence to 8 N ?� m.

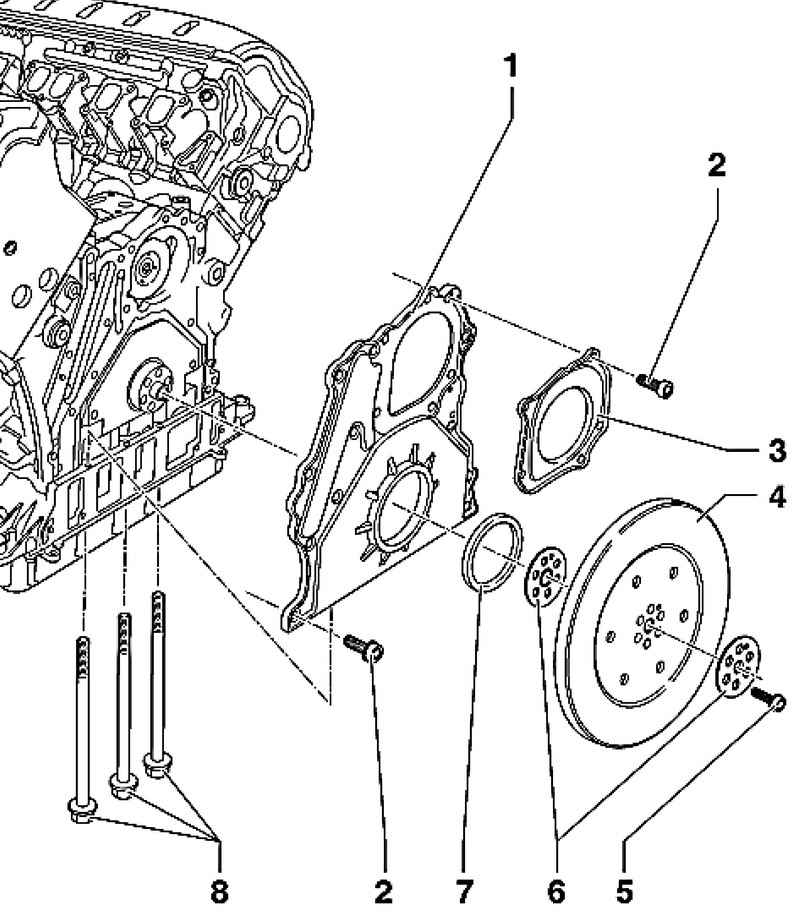

Fig. 2.172. The front gasket flange and the vibration damper 1 - front flange gasket; 2 - a bolt 8 Nm; 3 - Cover of the water pump; 4 - vibration damper; 5 - a bolt 50 Nm + to tighten on 1/4. (90 ?�); 6 - washer; 7 - a sealing ring; 8 - a bolt 13 Nm

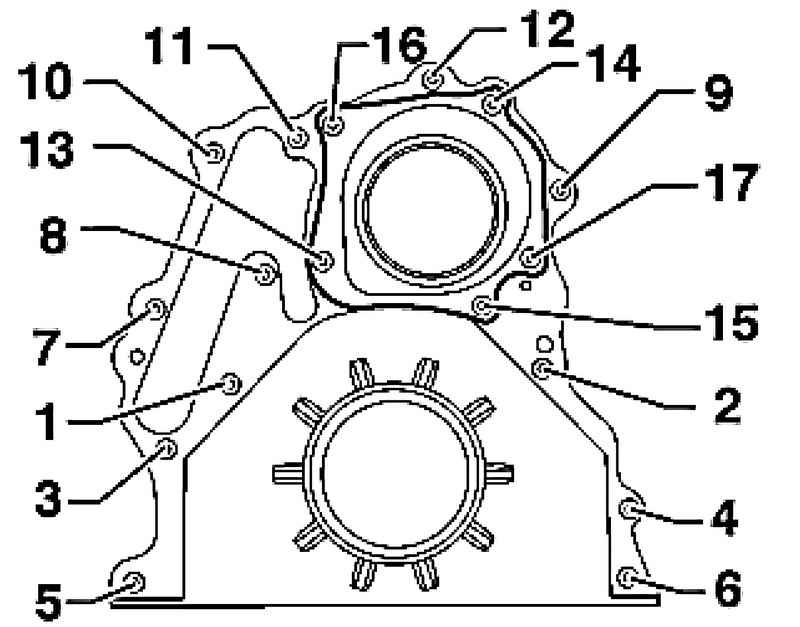

Fig. 2.173. The sequence of the mounting bolts of a forward sealing flange and cover the water pump
