Replacement wheels

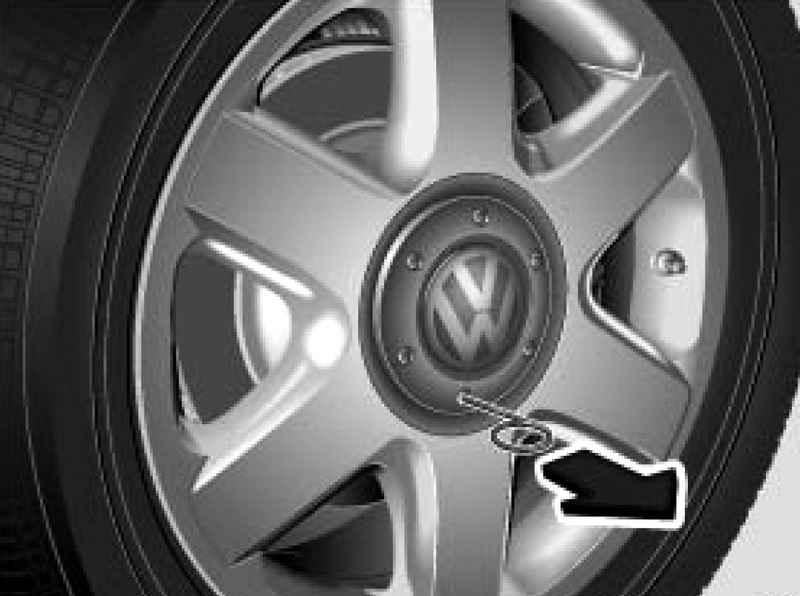

Removing the cover hub Take the wire puller of the tool kit.
Pull out the cover. Wire stripper included in the vehicle's tool kit.
Remove wheel bolt caps

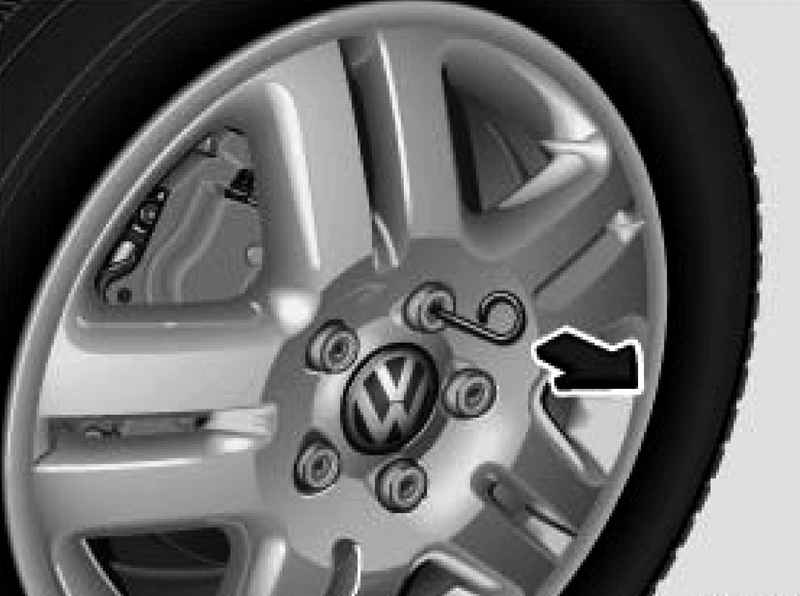

Insert the end of the puller wire into the hole of the cap (Fig. 1.140). Remove the cap. The caps are used to protect the wheel bolts, and after changing the tire should be put back.
The weakening of the wheel bolts

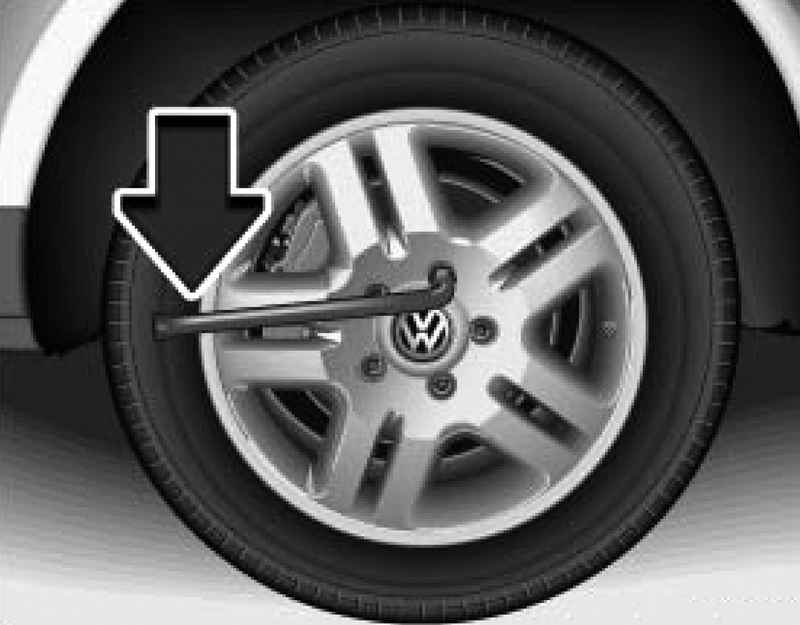

Grasp the end of the lug wrench and turn the key about one turn counterclockwise.

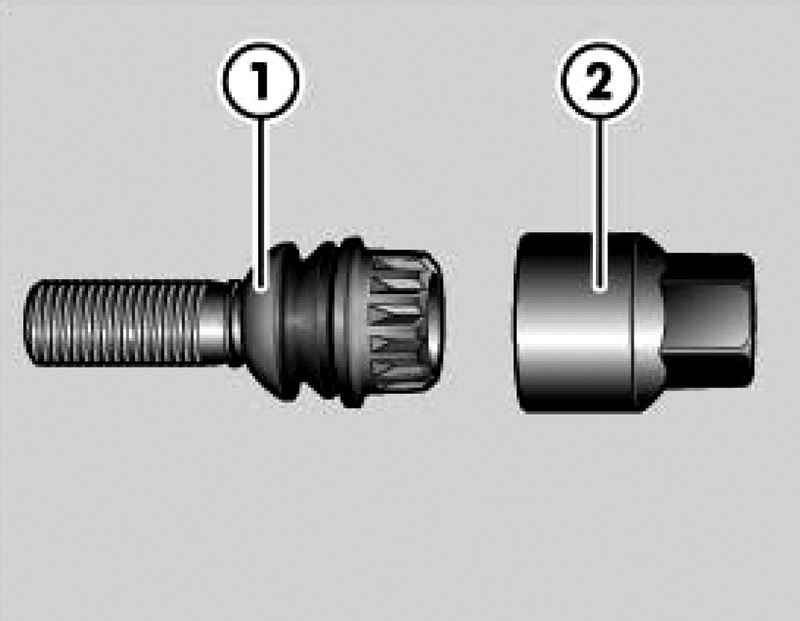

Take the adapter bolt locking of the vehicle tool kit 2 (Fig. 1.142). Insert the adapter fully into the bolt key lock 1. Push the wheel wrench onto the adapter until it stops 2. Grasp the end of the lug wrench and turn the key about one turn counterclockwise. If you can not loosen the screw, you can press the key at the end of leg. At the same time hold on to the car body and balance.
Lifting the car

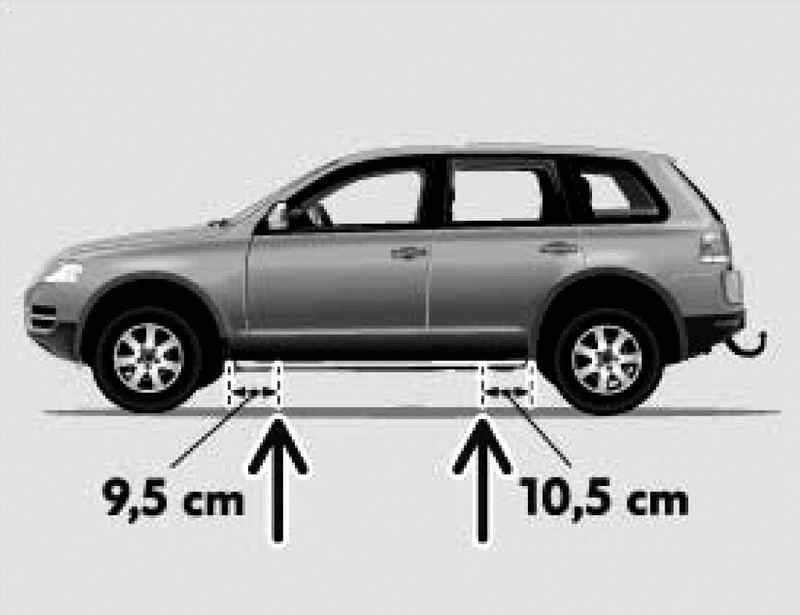

Find a place for the installation (Fig. 1.143) jack which is about a removable wheels. Lift the leg jack so that you can still put a jack under the car. Check whether the jack stands support on the ground.

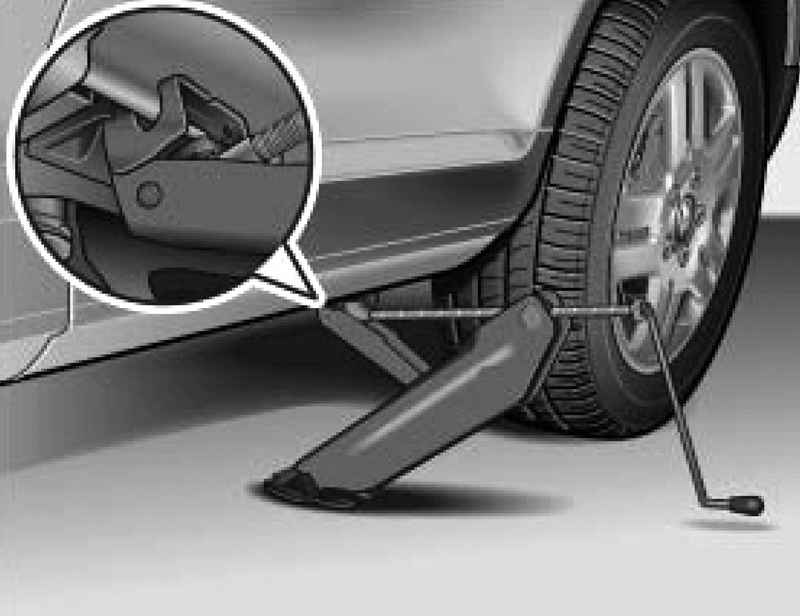

| Fig. 1.144. Position the jack to lift the left rear wheel
|
Straighten the position of the jack, and then evenly lift jack paw until it is vertical shrink onto the edge (Fig. 1.144) below the car. Turn the jack until the wheel is off the ground. The jack should be placed just under the intended places. Near each wheel there is a place.
Changing wheels

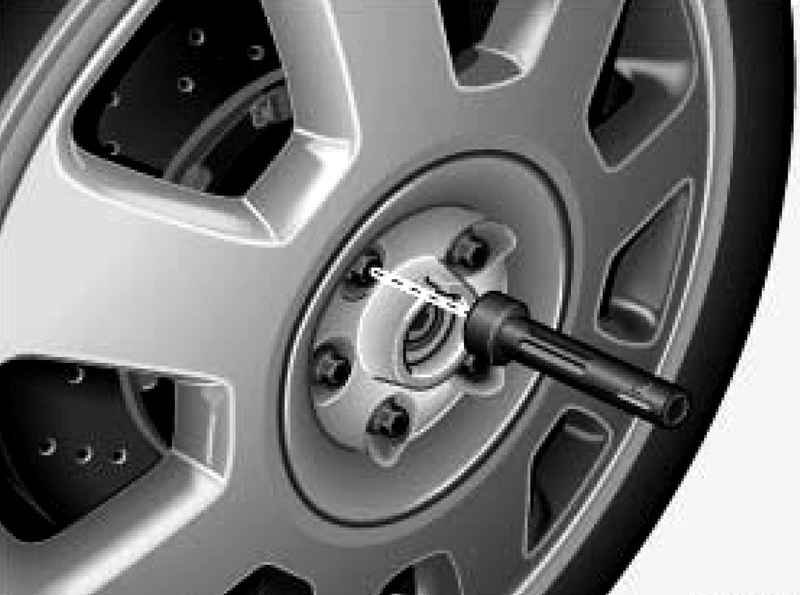

Completely remove the upper wheel bolt hex screwdriver and place it on a clean surface (Fig. 1.145)

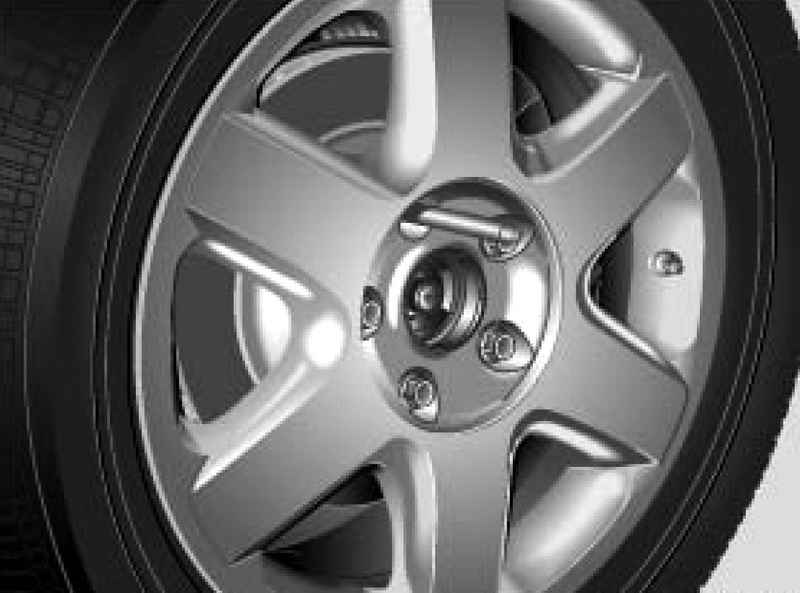

Screw the mounting pin (Fig. 1.146) hand in the vacant threaded hole. Remove the rest of the wheel bolts. Remove the wheel. When this mounting pin remains in the hole.
Installing the collapsible spare wheel Slide the spare wheel on the hub via a mounting pin. Collapsible spare tire must be deflated during the installation. Loosely wheel bolts and replace them with the hex screwdriver, gently tightening the wheel bolts. Remove the mounting pin and screw the remaining wheel bolt. Inflate spare wheel - the air pressure of 3.5 bar in it. Lower car jack. Tighten the bolts of the wheel key. Tighten the bolts are not around, but alternately opposite bolts.
Tyres with directional tread pattern Wheels with these tires must be properly set. Tyres with directional tread pattern are on the side of the arrow indicating the direction of rotation of the tire. Said to be the direction for the installation of the wheels on the car. At the same time we realized all the advantages of tires with respect to traction, wear, noise and hydroplaning. If the wheel is mounted so that the arrow rotates counterclockwise, proceed with caution, since in this case the tire does not work in the best way. This is particularly evident when driving on wet surface. to take full advantage of tires with directional tread pattern, as soon as possible, replace the other wheel on which the tire has the correct position.
After changing the wheel Place remove the wheel in the luggage compartment. As soon as possible, check the tightness of the wheel bolts with a torque wrench. As soon as possible repair or replace the removal of the wheels.
|
