Pistons

Fig. 3.16. The main parameters of the piston

Pistons (Fig. 3.16) are cast from an aluminum alloy. To ensure the necessary clearance in conjunction piston / sleeve piston nominal size of the diameter of the skirt are divided into four size groups.

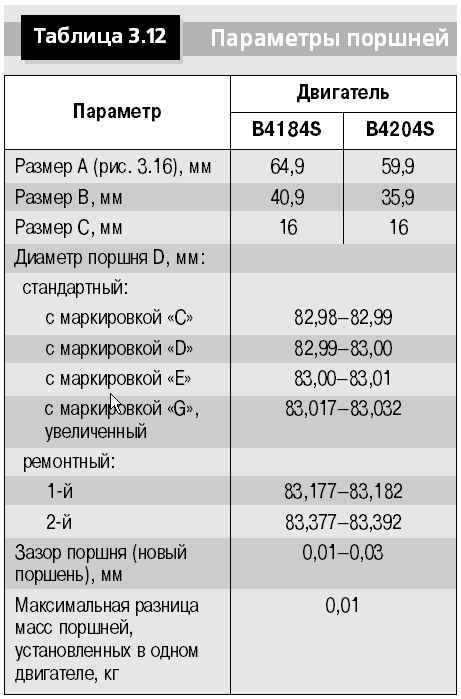

The main parameters of the pistons are shown in Table. 3.12.
