Adjustable head restraints



Properly installed head restraints are essential for the effective protection of the occupants in most accidents.

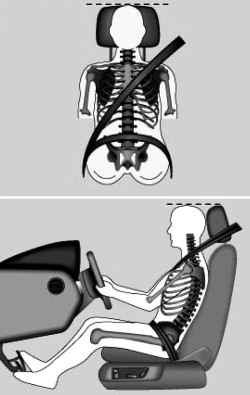

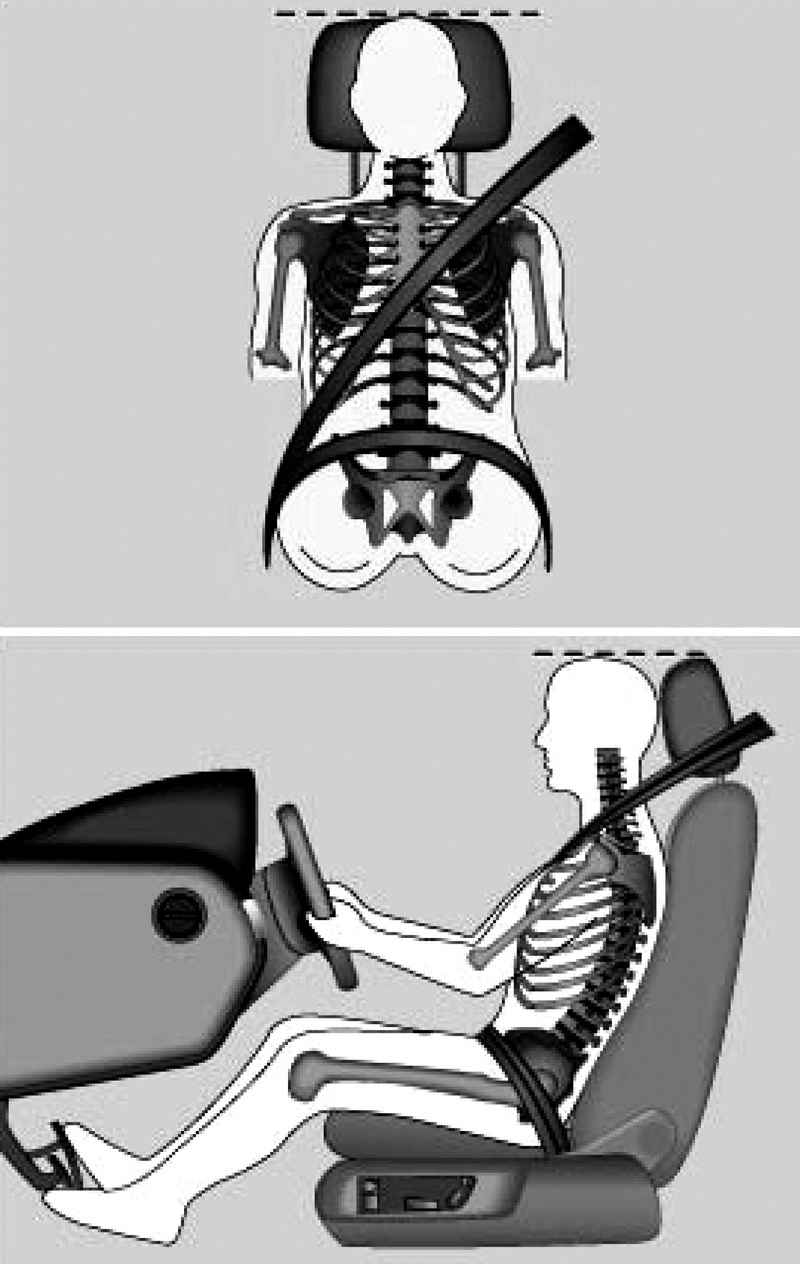

The correct position of the head restraint and seat belt
Fig. 1.87. The correct position of the head restraint and seat belt


Adjust the head restraint so that the top edge of the head restraint has been in line with the top of the head (Fig. 1.87).

ATTENTION
Riding with removed or incorrectly installed head restraints increases the chance of serious injury.

Height adjustment
Head restraint can be adjusted in their vertical shear direction.
Grasp the sides of the head restraint on both sides.
Slide the head restraint up or down.
Make sure the head restraint is securely fixed in position.

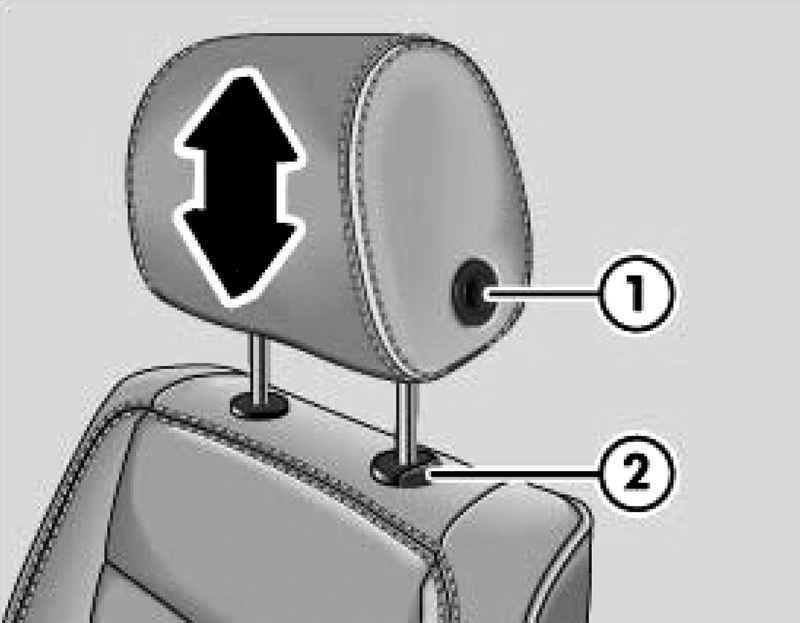

Adjusting and removing the head restraints
Fig. 1.88. Adjusting and removing the head restraints


To move the head restraint all the way down, you must hold down the button 1 (Fig. 1.88) in the side of the headrest.

Removing the head restraint
Slide the head restraint all the way up.
Press 2.
Hold down the button and pull the head restraint upwards.

Set headrests
Insert the headrest in the guide in the back seat.
Slide the head restraint down.
Adjust the head restraint.
