Power steering wheel position
The steering wheel can be infinitely adjusted in height and angle. Properly adjust the driver's seat.

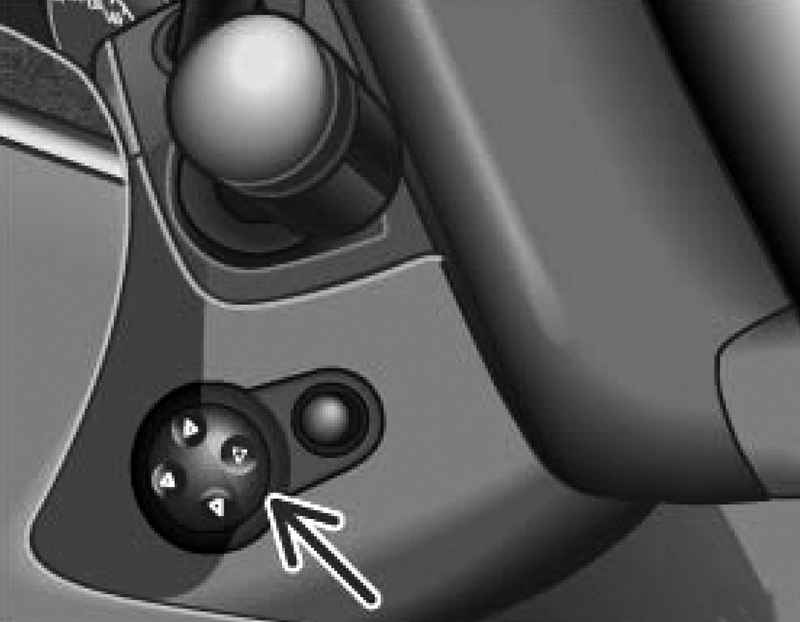

| Fig. 1.92. Power button for the steering wheel
|
By pressing a button on the steering column (Fig. 1.92), adjust the steering wheel to the desired position. Power steering is only possible when the ignition is off.
ATTENTION During movement hold the steering wheel with both hands on the sides in the "at 9 and 15 hours." Never hold the steering wheel in the "12 hours" or a different way (for example, middle). Otherwise, the disclosure of an inflatable cushion, you may get injured hand and head. |
Manual adjustment of the steering wheel The steering wheel can be infinitely adjusted in height and angle. Properly adjust the driver's seat.

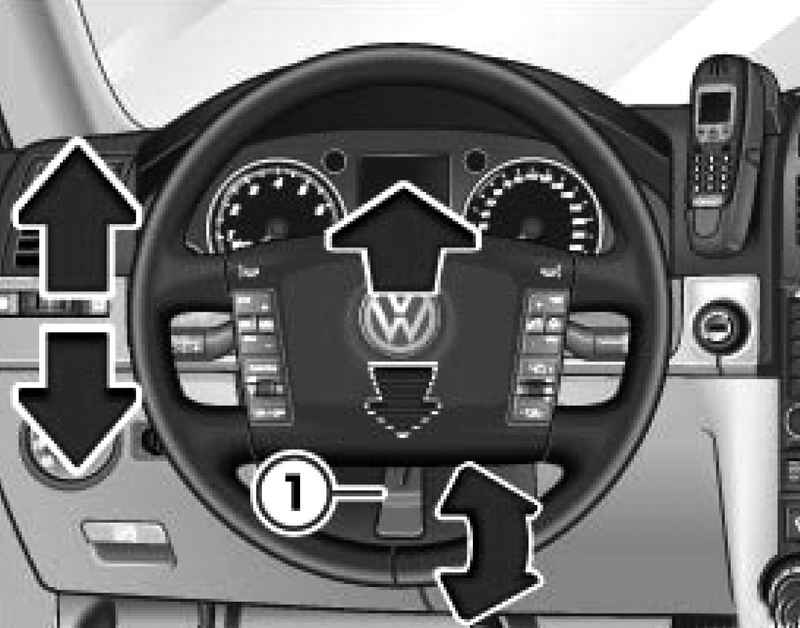

| Fig. 1.93. 1 Lever for manual adjustment of the steering wheel
|
Pull the lever 1 (Fig. 1.93) under the steering column down. Install the steering wheel position. Then firmly retighten the lever 1 back up.
ATTENTION Wrong position of the steering wheel and seat can cause serious injury. To avoid dangerous situations, adjust the steering wheel only with the vehicle stationary. |
|
