Folding and return to the place of the rear seat back
Rear seat backrest can be folded to increase luggage space. The rear seat backrest split. Every part of it can be folded separately.
Folding rear seats Remove the head restraints from the backrests to be folded down.

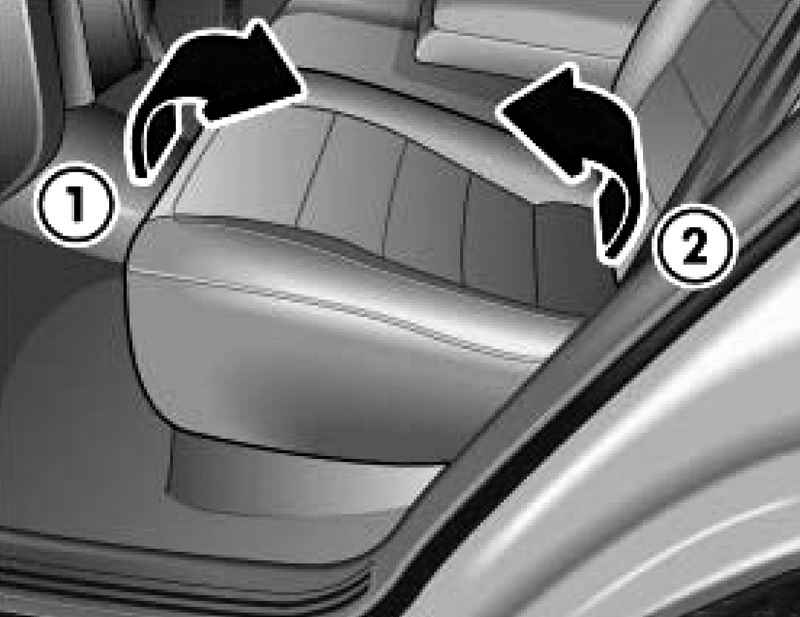

Lift the seat cushion at the front edge 1 (Fig. 1.94) and fold it forward 2. Insert a rack on top of the head restraints in the round holes of the folded airbag.

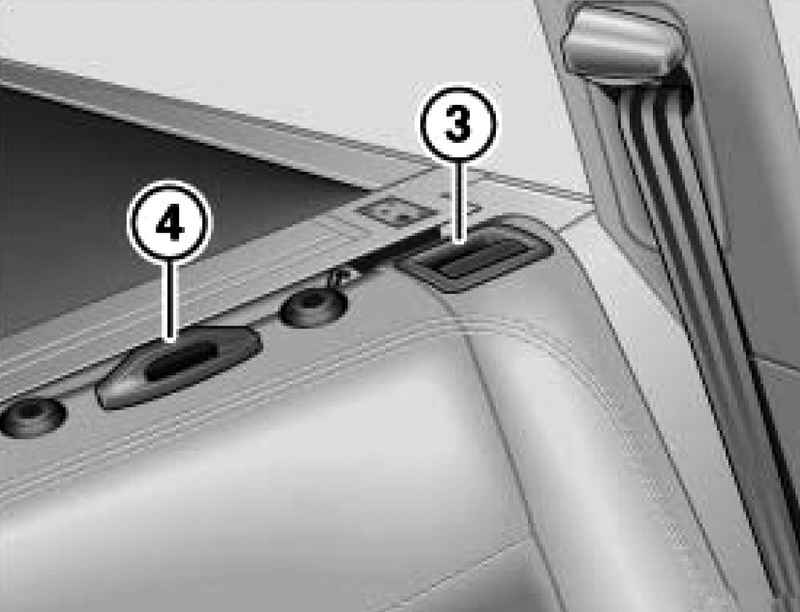

Fold the backrest forward. Make sure that the socket 4 village on the ledge in the seat cushion.
Replacing the rear seat Pull the head rest of the seat cushion. Slightly lift the back and replace the head restraints. Fold back into place until it locks. Make sure not to pinch belts. Put the seat cushion back into place. Make sure that access to buckle open. If the rear seat is folded completely, set the net
ATTENTION Back rest after returning to the place must be securely fixed to emergency braking, no item of luggage could fly forward. The red mark in the latch signals are not fixed position backrest; when secure the back of the label is not visible. |
|
