The front seats
Manual adjustment of the front seats

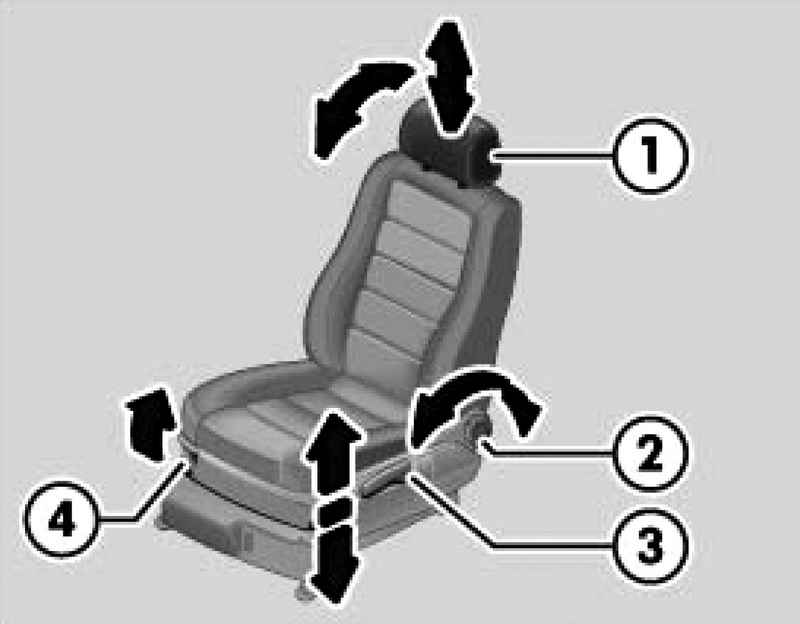

| Fig. 1.89. Bodies manual seat adjustment (driver's seat)
|
Government regulation from 2 to 4 (Fig. 1.89) for the right front seat are reversed. Adjust the head restraint Grasp the sides of the headrest and slide it.
To tilt the seatback Move over from the back and turn the knob.
Seat height adjustment Drag lever (repeatedly if necessary) from the starting position up or down. This seat will rise or fall.
Seat adjustment in the longitudinal direction Pull the handle upwards and slide the seat forward or backward.
ATTENTION Never adjust the front seat while driving. During the adjustment you take an unnatural position on the seat. Adjust the front passenger seat when the vehicle is stationary. To reduce the risk of injury during emergency braking or in a collision, will never move from the heavily tilted back the seat backrest - risk of injury! The greatest protective effect of seat belts is attained when the front seats are in a position close to the vertical, and driver and front passenger seat belts properly put on. The more the seatback is reclined, the greater the likelihood of serious injury if improperly worn seat belts and improper planting. Be careful when adjusting the seat height and longitudinal direction. When making adjustments, you can inadvertently get injured. |
Power front seats Controls are made in form of individual elements of the seat, when viewed from the side of the seat. Cushion and backrest follow the movements of the respective regulators.

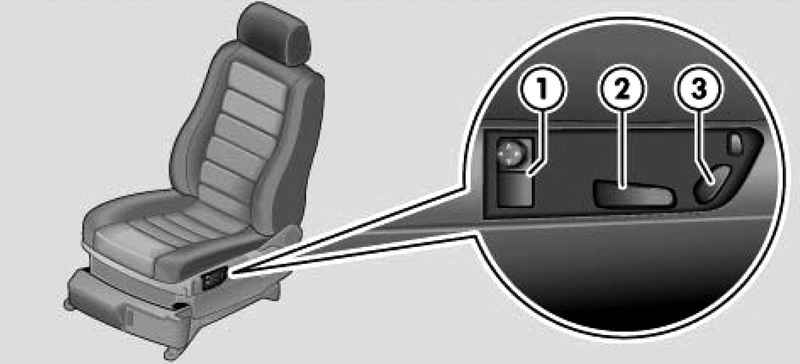

To adjust the seat position for your physique move the corresponding controller (Fig. 1.90). Adjust backwater in the lumbar region. At adjustment of the seat back in the area of the waist is more or less convex. Because of this it is possible to achieve a good support of the spine, taking into account your individual circumstances. Adjust the seat height and in the longitudinal direction. Adjust the tilt of the seat back.
ATTENTION To reduce the risk of injury during emergency braking or in a collision, will never move from the heavily tilted back seat back. The greatest protective effect of seat belts is attained when the seat backs are in a position close to the vertical, and driver and front passenger seat belts properly put on. The more the seatback is reclined, the greater the likelihood of serious injury if improperly worn seat belts. |
Adding to the memory of adjustments for the seat, the height of the seat belt, mirrors and steering wheel Press the memory stored and recalled three different combinations of adjustments to the seat position, the height of the seat belt, mirrors and steering wheel.

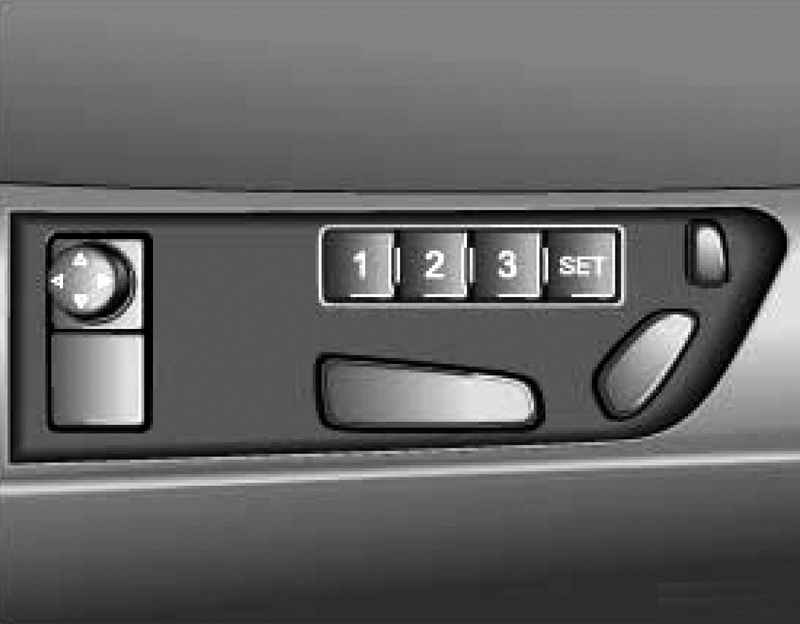

To memorize the first press ?�SET?� and then one of the memory buttons 1, 2 or 3 (Fig. 1.91).
Adding to the memory of adjustments to move forward Turn on the ignition. Reverse gear must not be included. Adjust the driver's seat, height belt anchorage, all mirrors and steering wheel. Press ?�SET?�. Press and hold for ten seconds, one of the key memory. Adding memory will be confirmed by a sound signal, like a gong. Switch off the ignition.
Adding to the memory adjustment for the right exterior mirror when reversing Turn on the ignition. Engage reverse gear. Set the right outside mirror so that you can see well the curb on the right. Press the same memory button, which is pressed into memory when making adjustments to move forward. Adding memory will be confirmed by a sound signal, like a gong.
Call adjustments When inserted into the ignition key is easy to touch the corresponding memory key. For the driver, this is only possible when the vehicle is stationary. To access the adjustment when the vehicle, hold down the memory as long as the adjustment made to the memory will not be installed. For the front passenger can be made under the memory buttons for the seat and adjust the height of the seat belt. For the driver, in addition to the memory adjustment made for mirrors and steering wheel. Adjustments for the driver's seat can be reconciled with the remote control key. This is useful when a specific remote control key uses mostly the same people.
Matching adjustment for driver's seat with the remote control key Each remote control key can be agreed with the adjustments made to the memory seat to seat is automatically set to a certain position.
Matching remote control key with memory keys First press ?�SET?�. Then press the memory for those who were made to adjust the driver's seat, which I would like to agree with a specific remote control key. Press and hold down the control key unlock about one second. All three of these actions are necessary to make ten seconds.
Call adjustments Press the button once unlock the remote control key. Open the driver's door. The driver's seat to take a predetermined position. If activated easy entry into the car seat to take a predetermined position only when it is inserted into the lock key and the driver's door is closed.
Erasing the remote control key negotiation with the memory buttons Press the corresponding memory button. Then press and hold the button for about two seconds of locking the remote control key . Adjustments for the driver's seat can be reconciled with the remote control key. This is useful when a specific remote control key uses mostly the same people. Matching remote control key with a certain key memory persists as long as the remote control key is agreed with another key memory or the memory key is not consistent with the other remote control key.
NOTE Every new regulation erases all the old regulation by the corresponding memory key. |
|
