Applying sealant



The order of execution of works
Remove residual sealant on the oil sump with a rotating brush attachment, such as a hand drill with a set of brushes, nozzles with plastic bristles (wear goggles).
Clean seating surfaces. They must be free of oil and grease.

NOTE
Follow the shelf life of the sealant.
The oil pan to be installed within 5 minutes after sealant application.

Cut the tip of the tube at the front marking (F holes about 3 mm).
Apply sealant to clean the seating surface of the oil pan. Harness the sealant should be 2-3 mm in thickness
In places holes fastening screws, apply sealant on the inside.

The application of sealant on the oil sump

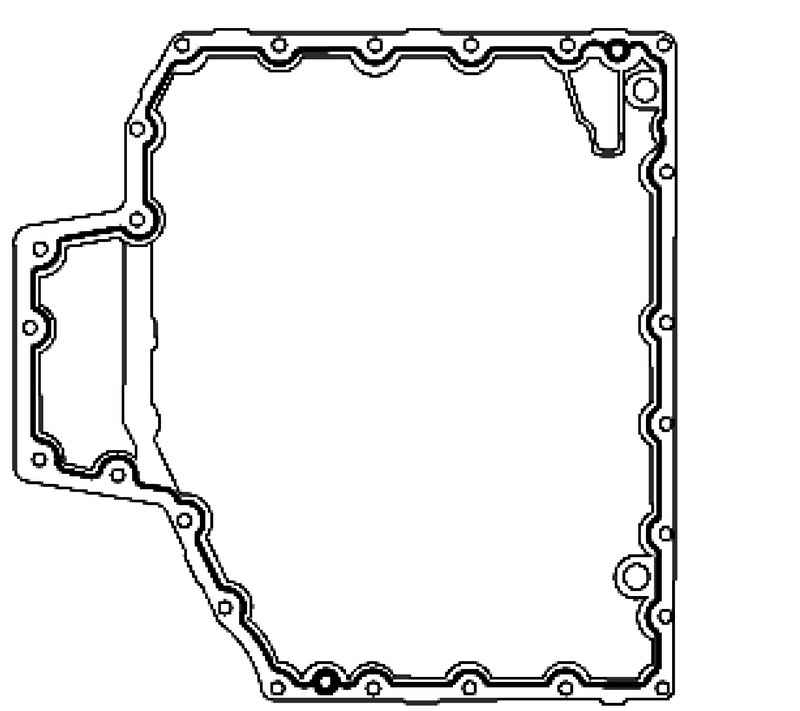

The scheme applying sealant to the surface of the oil sump
Fig. 2.264. The scheme applying sealant to the surface of the oil sump


Apply sealant to clean the seating surface oil pan as shown in Figure 2.264.

The application of sealant on the oil pan

The scheme applying sealant to the surface of the oil pan
Fig. 2.265. The scheme applying sealant to the surface of the oil pan


Apply sealant to clean the seating surface of the oil pallet as shown in Figure 2.265.
