Check engine oil level



The marks on the dipstick

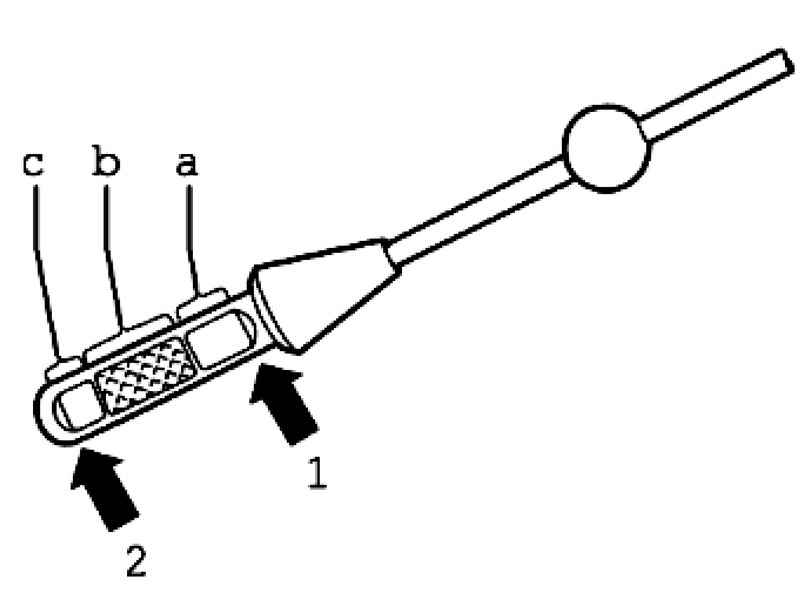

Dipstick
Fig. 2.262. Dipstick



1 - Mark max.
2 - Mark min.
a - a cut above the shaded field to the mark max: Motor oil is not topped up.
b - The current level in the shaded box: You can top up the engine oil.
c - The length from the mark min to shaded fields: top up the engine oil, but not more than 0.5 liters.

The oil filling
Without oil filter 11.2 l.
With oil filter 11.5 l.

Oil pipelines in the oil sump

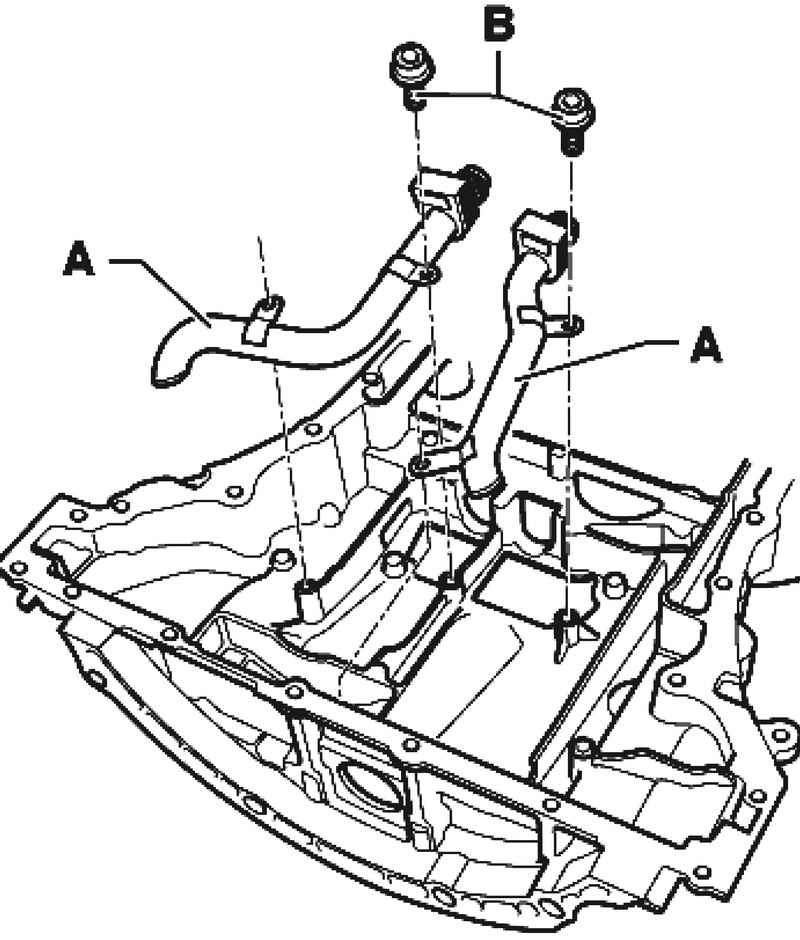

Oil pipelines
Fig. 2.263. Oil pipelines


Install oil pipelines A so as shown in Figure 2.263, and tighten the screws B, with 8 N ?� m.
