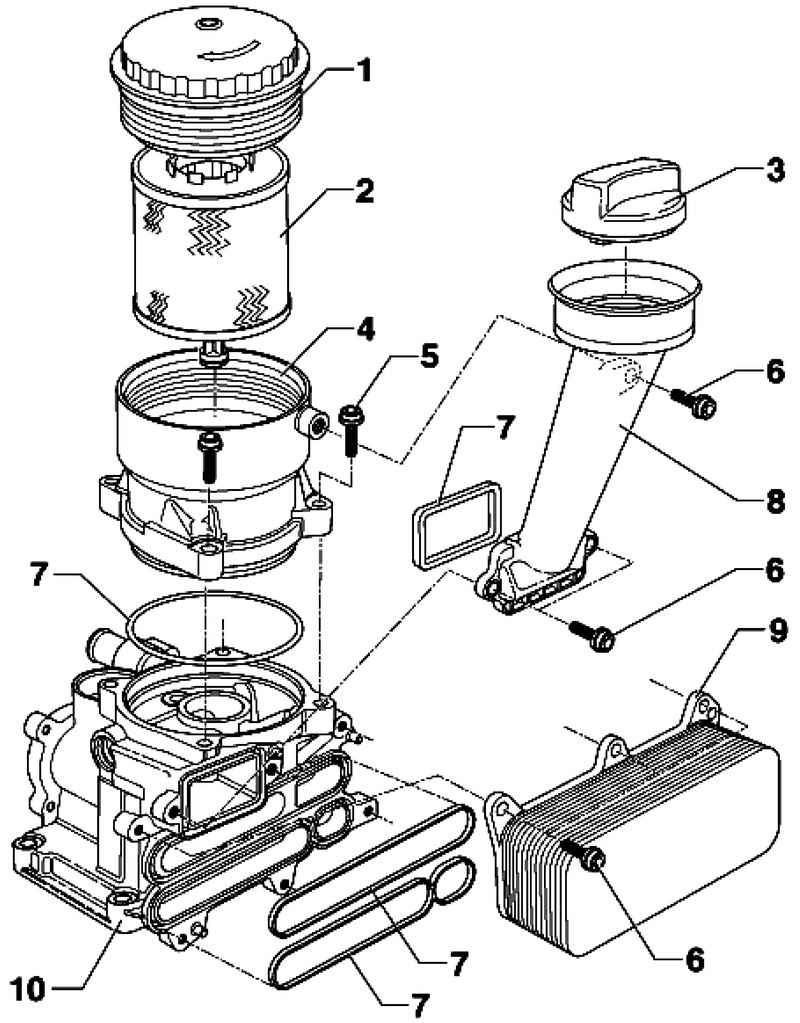

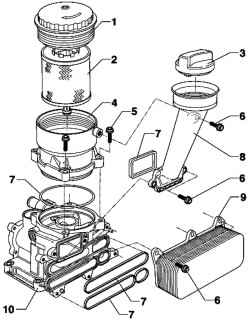

Fig.2.266.The components of the oil filter: 1 - a cover of the oil filter housing 25 Nm;2 - the oil filter;3 - Cover;4 - the upper part of the body;5 - a bolt 8 Nm;6 - a bolt 10 Nm;7 - consolidation;8 - filler neck;9 - oil cooler;10 - lower part of the body
The order of execution of works
Fig.2.267.Key for screwing and unscrewing the oil filter
Loosen and tighten using the oil filter wrench T10192 (Fig. 2.267).
