Black-and-white display in the dashboard

The display in the dashboard shows menu functions, messages, and the position of the selector.

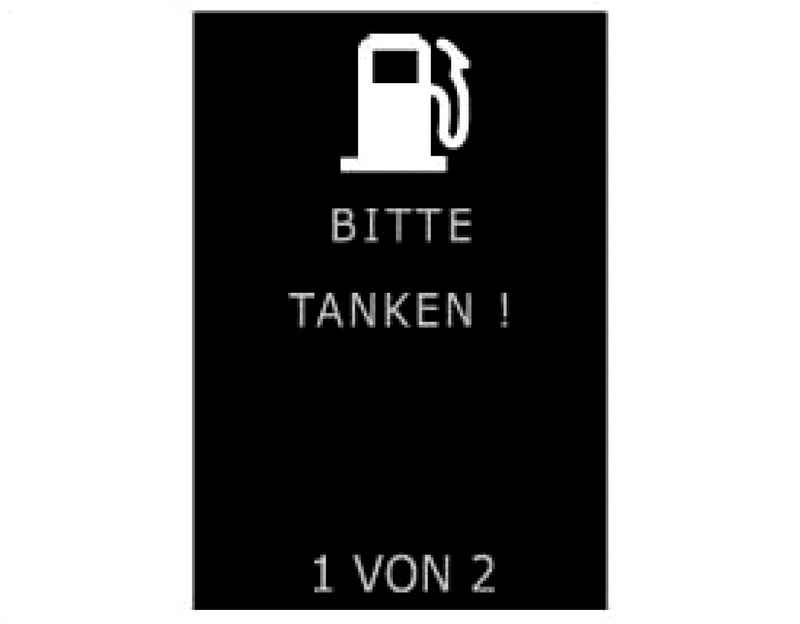

The display will appear as different messages (Fig. 1.25). In addition, the display shows menus that allow you to obtain information and perform various adjustments.

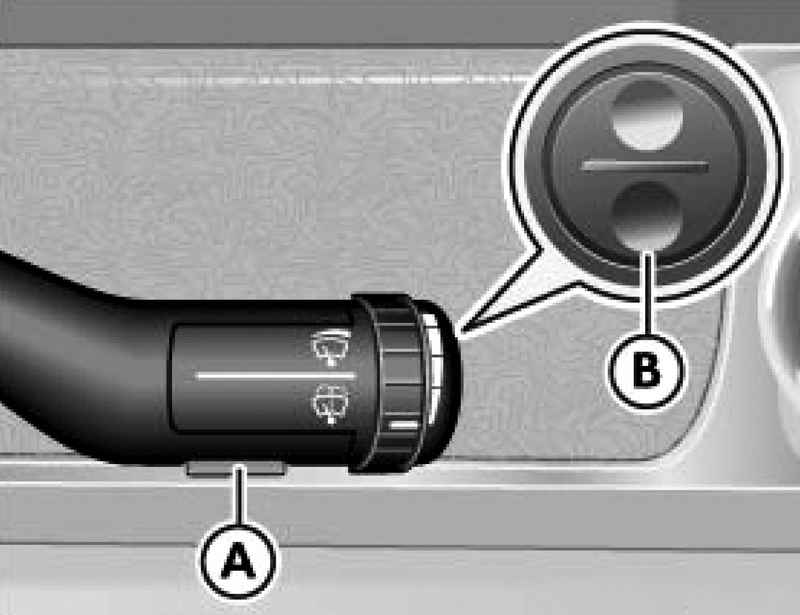

Using the menu via the controls on the steering column switch wipers

As an example, selects to input speed warning. This may occur when, for example, installed on the vehicle winter tires which do not correspond to the maximum vehicle speed.

In the main menu, select ?�KOMFORT SETUP?�.

Hold down the rocker button in for more than two seconds to as long as does not seem the main menu.

Press the rocker button up or down as long as the select ?�KOMFORT SETUP?�.

Press A to open the menu.

Call the menu ?�Geschwindigkeitswarnung?�

Press the rocker button up or down until the until the menu item ?�GESCHW. WARN ?�.

Press A on the steering column switch to the menu.

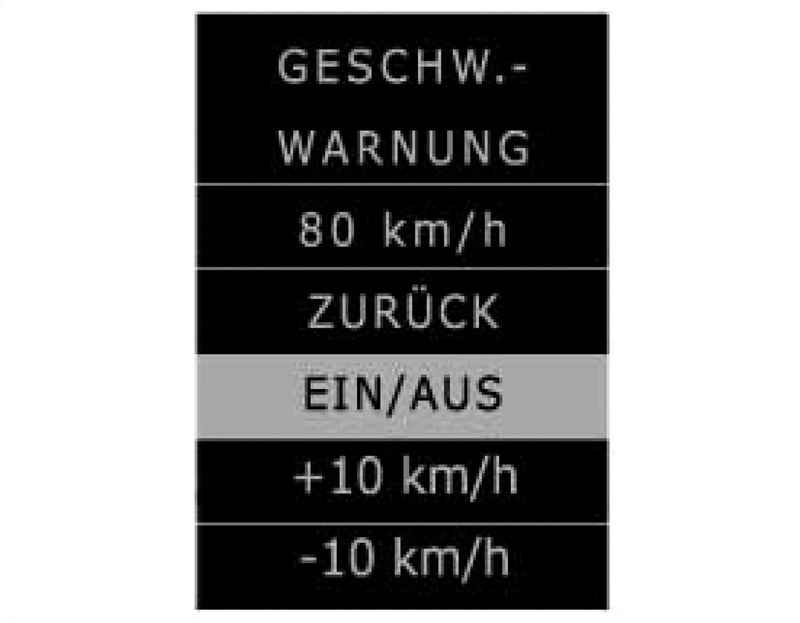

Setting speed warning

Select via toggle key menu +10 km / h or -10 km / h, and press to set the rate of increase or decrease.

On and off-speed warning

Select via rocker keys menu item ?�EIN / AUS?� and press to speed warning turned on or off.

Exit menu ?�Geschwindigkeitswarnung?�

Hold down the rocker button for longer than two seconds or select the menu item ?�ZURUCK?�.

Through shortcuts you can work with all the other menu.

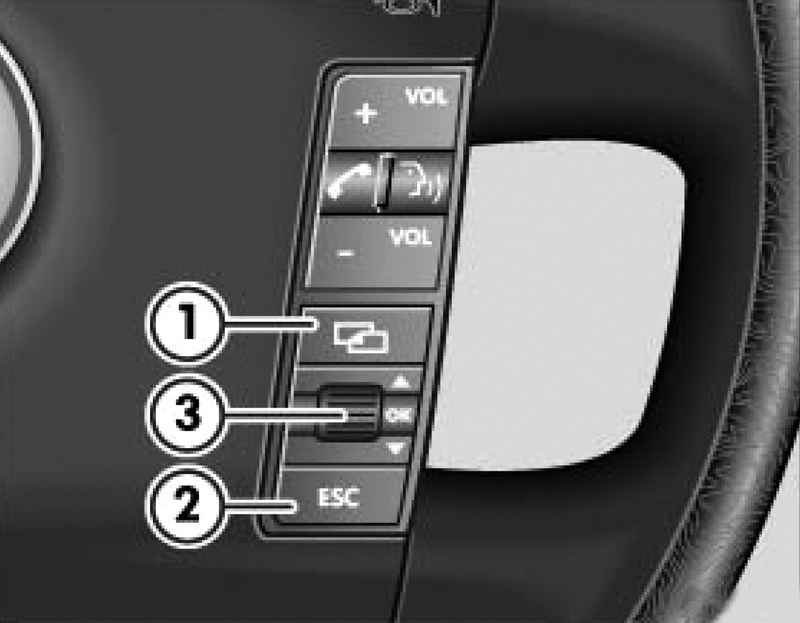

Using the menu via the controls on the multifunction steering wheel

As an example of a menu for entering selected warning the maximum allowable speed. This may occur when, for example, installed on the vehicle winter tires which do not correspond to the maximum vehicle speed.

Selecting ?�KOMFORT SETUP?�

Hold down 1 or 2 as long until the main menu ?�KOMFORTSETUP?�.

Call the menu ?�Geschwindigkeitswarnung?�

3 Turn the wheel as long as select ?�GESCHW. WARN ?�.

Press the wheel to open the menu.

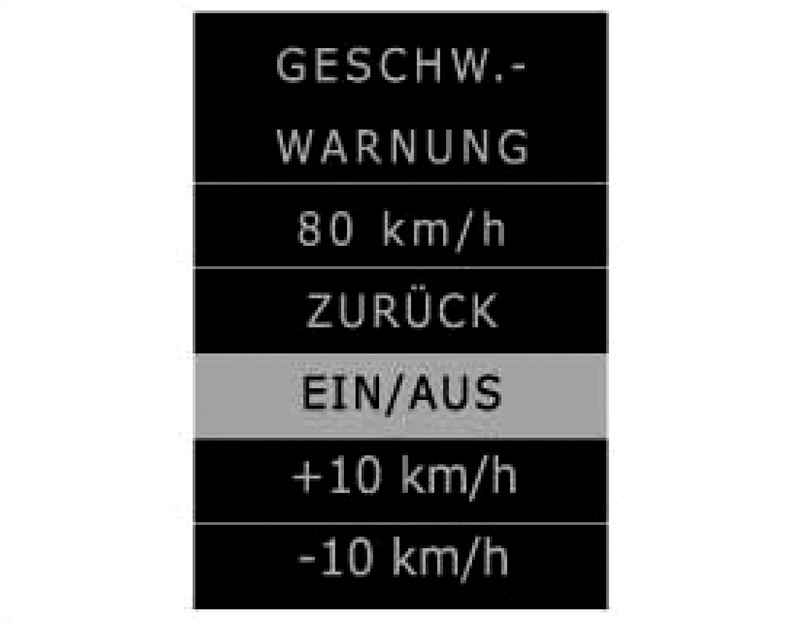

Setting speed warning

3 Turn the wheel as long as select +10 km / h or -10 km / h.

Press the scroll wheel. The set speed will increase or decrease by 10 km / h.

On and off-speed warning

3 Turn the wheel as long as select ?�EIN / AUS?�.

Press the scroll wheel.

Exit menu ?�Geschwindigkeitswarnung?�

Press 1 or 2 to return to the ?�KOMFORT SETUP?�.

In the same way, you can work with all the other menu screen.

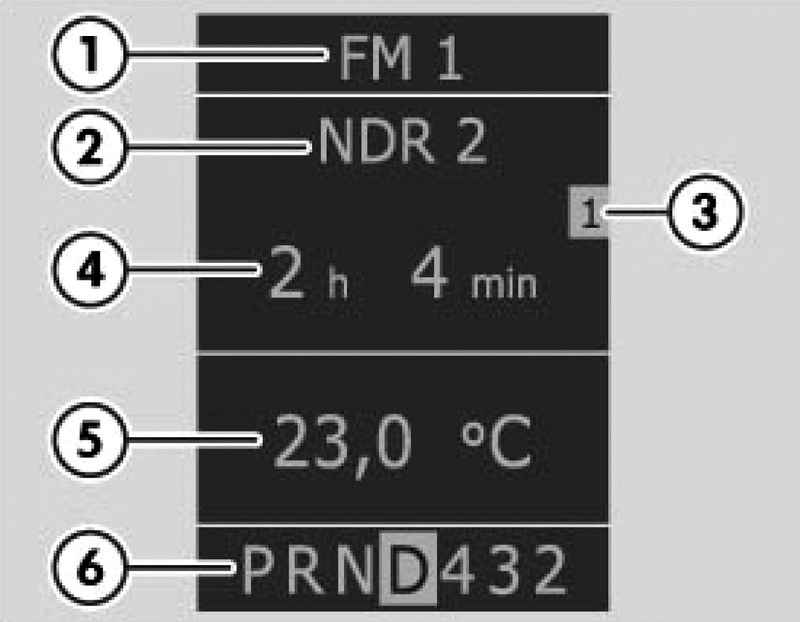

The main window

When CD-receiver off the current time appears in the middle of the display, while the CD-receiver shows the station being received. By acting on the rocker button on the steering column switch or the rotation of the wheel can be taken to change the radio (station search).

When listening to a CD, you can change the titles.

The main menu "Route guidance"

Access to this menu is possible only when the navigation system.

With the active conduct of a target displayed instructions on the route.

If the route guidance is inactive, showing direction and we pass the names of the streets.

The main menu "Phone"

This menu is only available for vehicles with built-in phone.

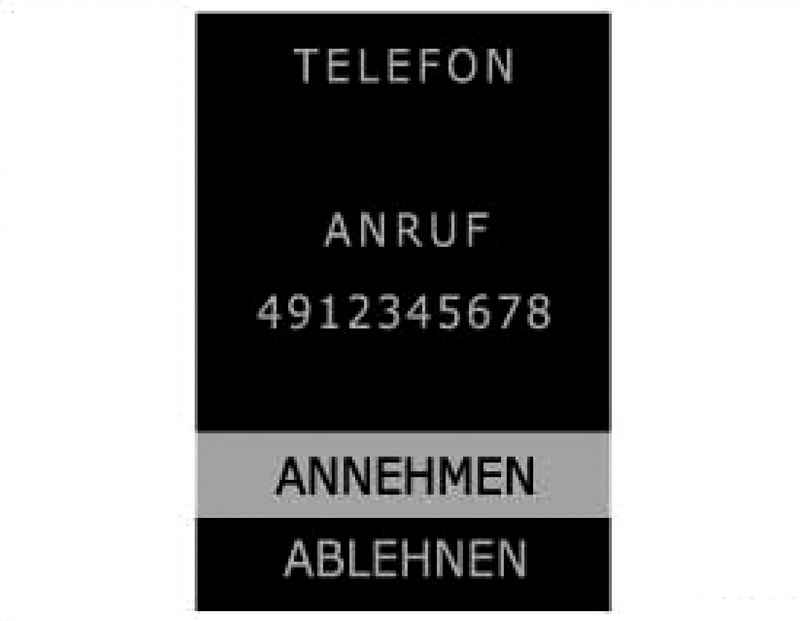

Incoming calls are shown on the display (Fig. 1.30). These calls can accept or reject by pressing keys on the steering column switch or by pressing the scroll wheel.

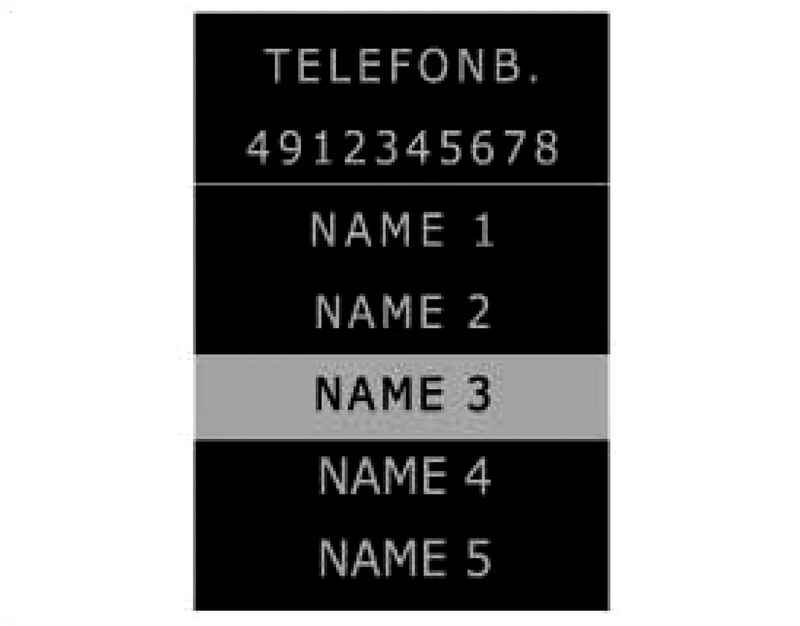

The contents of the phone book appears when the phone first press on the steering wheel and then the rocker button or rotate the wheel.

The main menu "Multi-pointer MFA?�

Multi-pointer (MFA) provides a variety of data on the trip.

To select a drive, press the switch on the steering column or the wheel.

Press the rocker button on the steering column switch or turn the scroll wheel to select a specific drive.

Press the switch on the steering column or the wheel to get the data from the selected drive.

To reset velechiny select the drive you want to clean.

Hold down the button on the steering column switch or dial for at least two seconds.

You can toggle by pressing keys on the steering column switch or press the wheel to cause the display the following indications multifunctional pointer.

The drive "Data on the current trip" contains the following information:

- Travel time;

- distance;

- Average speed of movement;

- Average fuel consumption;

- Instantaneous fuel consumption.

This data is automatically erased from the drive if the ignition is switched off for more than two hours.

The drive "Data on the last trip," contains the following information:

- When traveling;

- distance;

- Average speed of movement;

- Average fuel consumption;

- Instantaneous fuel consumption.

The drive "After the last refueling" contains the following information:

- distance;

- Average speed of movement;

- Average fuel consumption;

- Fuel range.

All previous data in the drive after refueling automatically deleted.

Outside temperature indicator

Measurement range - from -40 ?� C to +50 ?� C. When the outside temperature from +4 ?� C to -40 ?� C in the display to see outside temperature is further there is a "snowflake icon" (warning of the possibility of ice). This icon blinks first five seconds and then remains lit until the moment when the outdoor temperature exceeds +4 ?� C.

Main Menu "Comfort"

In this menu you can make various settings to ensure comfort when using the car.

In the "Arrival Home" You can set how long the coverage will be included in the "Arrival Home".

Menu "Daylight" and forming of the switching on and off of daylight.

Menu "footwell lighting" provides information on the location of the zone brightness legs when moving.

In "Speed warning" is set, whether it is necessary to inform about the speed limit through text and sound warnings and at what speed to do it. Use this function, for example, when the vehicle has winter tires are at the maximum permissible speed slower than the maximum speed of the vehicle.

In the "Time" you can set the current time and choose between 12- and 24-hour readings.

Will take you directly to this menu when you press the button on the dashboard to set time.

In the "Security" you can set whether you lock the car be activated observation of the interior of the vehicle and the protection of the loading on the tow truck (tilt sensor).

In "Unlocking the doors" should be established which doors unlock.

In the "Door" set, which doors should be unlocked by pressing the unlock button remote control key: or just the driver's door, or just the two left doors, or doors.

In the menu "Signals" is established whether the unlocking of the doors accompanied by the flashing turn indicators.

Depending on the vehicle can also be turned on or off sound unlock the doors.
