Management of outdoor lighting
Turning daylight

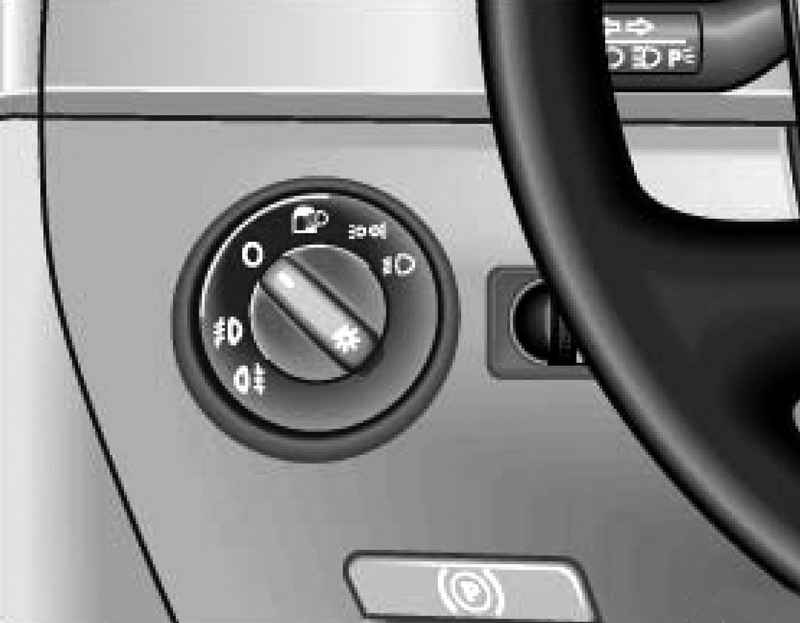

| Fig. 1.42. The switch of external illumination
|
Turn the ignition switch outdoor lighting should be in position 0 (Fig. 1.42).
Enable automatic control head lights (ALS) To enable automatic control head, turn the light switch to the position of outdoor lighting .
The parking light Turn the switch to position .
Turning Head Light Turn the switch to position .
Turning off exterior lighting Turn the switch to 0.
Turning fog lights Pull the switch out of the position or to the first fixed position.
Turning the rear fog lamp Pull the switch out of the position or to the second fixed position. Head coverage applies only when the ignition is switched on. When the engine is started and after the ignition is switched off the head light is automatically switched to the parking. When activated, the automatic control of the head light head light with decreasing ambient light is automatically activated by a special photo sensor, for example, at the entrance to the tunnel in the daytime. When driving on the highway when the car is more than ten seconds, moving at a speed exceeding 140 km / h, turn on the head light. Head light turns off when the car is more than two and a half minutes is moving at a speed less than 65 km / h. Head Light is activated during rain when the wipers operate for more than five seconds of continuous operation. Head light turns off when four minutes wipers do not work in the long term or intermittent.
Daylight If you can not turn on the light of day through the switch, it is possible to include in the menu of the main menu Licht ?�Komfort-Setup?�.
Fog lights When the fog lamps in the speedometer warning lamp .
Rear fog light Light rear fog light can blind other drivers. Turn the rear fog lamp only with very low visibility. When the rear fog lamps speedometer warning light . If the presence of a staff trailer coupling vehicle towing a trailer with a rear fog lamp, a lamp on the car is automatically switched off.
ATTENTION When activated "automatic control head lights?� Head Light may not turn on, such as fog or heavy rain. You should turn on the head light switch outdoor lighting. Ultimately, control of head light - duty driver. "Automatic control of the head light" is only an aid in the management of the car. If you want the driver to control the head should be light. When driving with the established high ground clearance is off-road should not include the rear fog lamp. You dazzle other drivers, which could lead to an accident. |
NOTE If the included external illumination remove the ignition key, alarm sounds until the driver's door open. When using external illumination guided by the rules of the road. When the "automatic control head light" can not turn on the fog lights and the rear fog lamp. |
Lighting "Arriving home / leaving home" (special lighting)
NOTE This photocell lighting controls. |
Lighting "Arrival Home" If the head lights of the car has been listed for at least three seconds, and then the ignition was turned off, then the lights lighting "Arrival Home" (night lighting) as a kind of auxiliary lighting. Duration of night light can be installed in the main menu ?�Komfort-Setup?�, where you can also disable it completely illuminated.
Lighting "Leaving Home" When you unlock the car lights turned on "leaving home" as auxiliary lighting. It lights when the ignition is switched off.
Ceiling lamps and reading lights Management shades in the ceiling is carried out by means of toggle switch with three positions: a long period of inclusion Management of the door switch and "Off?� (AUS).
Door Switches Ceiling lamps are activated automatically when the vehicle is unlocked and when removing the key from the ignition. Plafonds go out 30 seconds after closing the door. When the car is locked or the ignition is switched ceiling extinguished.
Reading Lamps Switches for reading lamps in the ceiling indicated by the icon .
NOTE When not all the doors are closed, covers extinguished in about ten minutes, if you remove the key from the ignition and inclusive management of shades of door switches. This prevents battery discharge. |
|
