Warning and indicator lamps

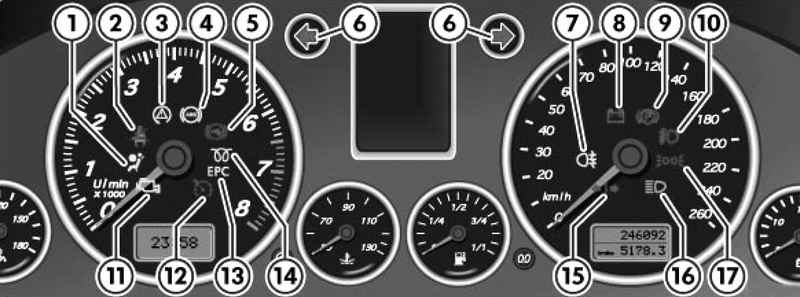

| Fig. 1.38. Location signal and warning lights
|

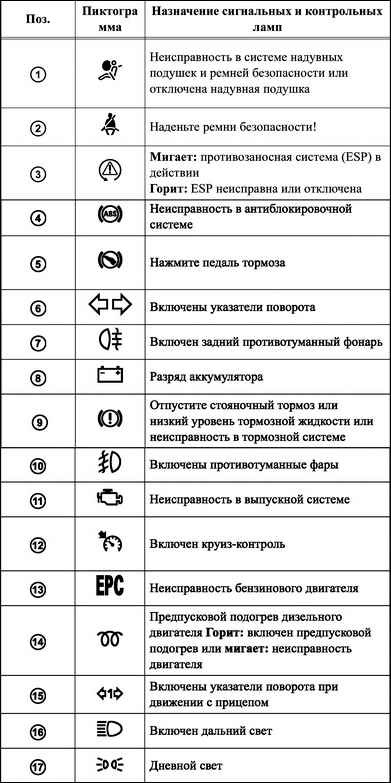

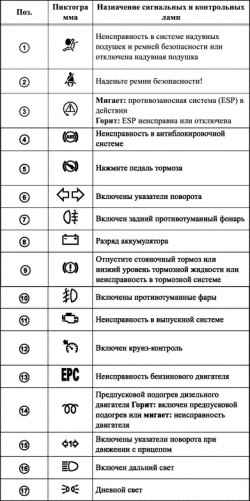

| Fig. 1.39. Specification signal and warning lights
|
Warning and indicator lamps indicate the effects of certain components and systems, or warn of violations in the work of components and systems. Some of the presented signal and control lamps are available only on certain versions of the car or installed as a custom-built equipment.
NOTE Some warning and indicator lights additionally duplicated and displayed. Failure of components and systems are divided on the degree of importance and are displayed in red or yellow icons and additionally accompanied by text messaging. |
Protivozanosnaya system (ESP) The indicator lamp shows the effect protivozanosnoy system and a malfunction in it. Functions control lamp: - Lights up when the ignition is approximately two seconds when checking performance; - Flashes during the movement when operating protivozanosnaya system; - Lights up when faults protivozanosnoy system; - Lights when the system is off protivozanosnaya; - Lights and when ABS fault as protivozanosnaya system works with the ABS. If the warning light comes on immediately after starting the engine, it can be assumed office system shutdown. The system can in this case be activated again by switching off and switching on the ignition reverse. If the warning light goes out, the system is fully operational again.
Anti-lock braking system (ABS) The warning light indicates a fault in the ABS and related traction system (EDS). The warning lamp lights up when the ignition few seconds. The lamp goes out after completion of automatic test performance. When a fault occurs in the ABS: - Warning light when the ignition is not lit; - Warning light after a few seconds after the ignition is not extinguished; - The warning light comes on while driving. The car can be braked braking system - but without the ABS. It should be as soon as possible to visit the service center. When the ABS malfunction indicator lamp is lit as protivozanosnoy system.
The fault in the entire brake system If the ABS warning light comes on together with the brake warning light, which means that there is a problem not only in ABS but also in the brake system
Problem traction system (EDS) Traction control works in conjunction with ABS. On the failure of this system indicates the ABS warning light comes on. It should be as soon as possible to visit the workshop.
ATTENTION If the brake fluid level is normal, it is possible that malfunctions in the brake system were caused by the failure of the ABS control when the braking process. Thus the rear wheels during braking can be blocked relatively early. Under certain circumstances, this may lead to drift car! Carefully follow the nearest workshop for repair. |
Low Battery The warning light indicates the battery discharge, which may be caused by a malfunction of the generator. The warning light comes on when the ignition is switched on. It goes out after starting the engine. If the warning light comes on while driving, it means that the battery is no longer charged by the generator. An urgent need to follow in the next workshop. Since in this case the battery is discharged, turn off all unnecessary consumers of current. System voltage voltmeter shows.
The exhaust system For exhaust system provides warning light. The warning light flashes: If misfire; converter may be damaged. Do not push hard pedal and carefully follow in the nearest workshop to check the engine. Warning light: If during motion signal light glows, it indicates that the increased exhaust emissions (e.g., a fault of the oxygen sensor). Do not push hard pedal and carefully follow in the nearest workshop to check the engine.
Engine management EPC The warning light illuminates when the problems in the management of the petrol engine.
NOTE Valid for vehicles with petrol engines. |
The warning light illuminates after the ignition is in the health check. When the engine starts it should go out. If you have any problems in the movement in the engine management warning light illuminates. It should urgently check the engine in the workshop.
Preheating / motor control The indicator lamp is lit during the preheating step. It flashes when a fault in the engine control unit.
NOTE Valid for vehicles with diesel engines. |
The indicator lamp lights up: If you turn on the ignition warning lamp lights up, it means that preheating is included. After switching off the engine warning lamp can be directly run. When the engine warning lamp does not illuminate. The engine can be run at once. If the warning light when the engine is cold after the ignition is lit, it means that there is a fault in the preheating. The necessary skills. The indicator lamp blinks: The indicator lamp flashes when a problem occurs in the management of the diesel engine. It should urgently check the engine in the workshop.
|
