Removing and installing oil seal on the flywheel side



Withdrawal

Removal of the gland

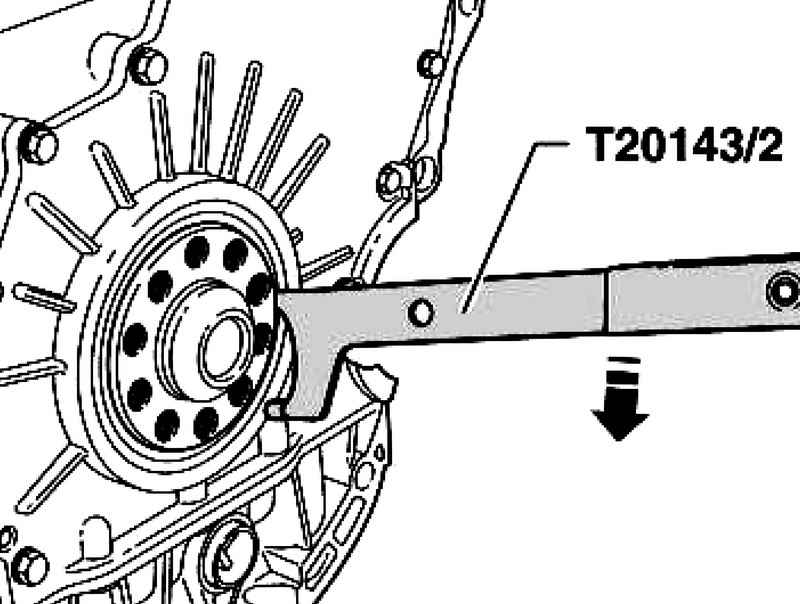

Fig. 2.45. Removal of the gland


Insert the hook T20143 / 2, as shown in Figure 2.45, working under the seal lip. Lean hook on the flange, pry out the oil seal in the direction of the arrow and remove it.

Setting

Installing oil seal on the mounting sleeve

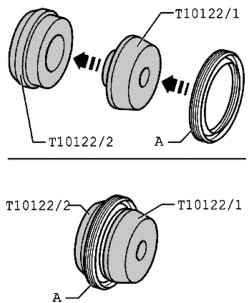

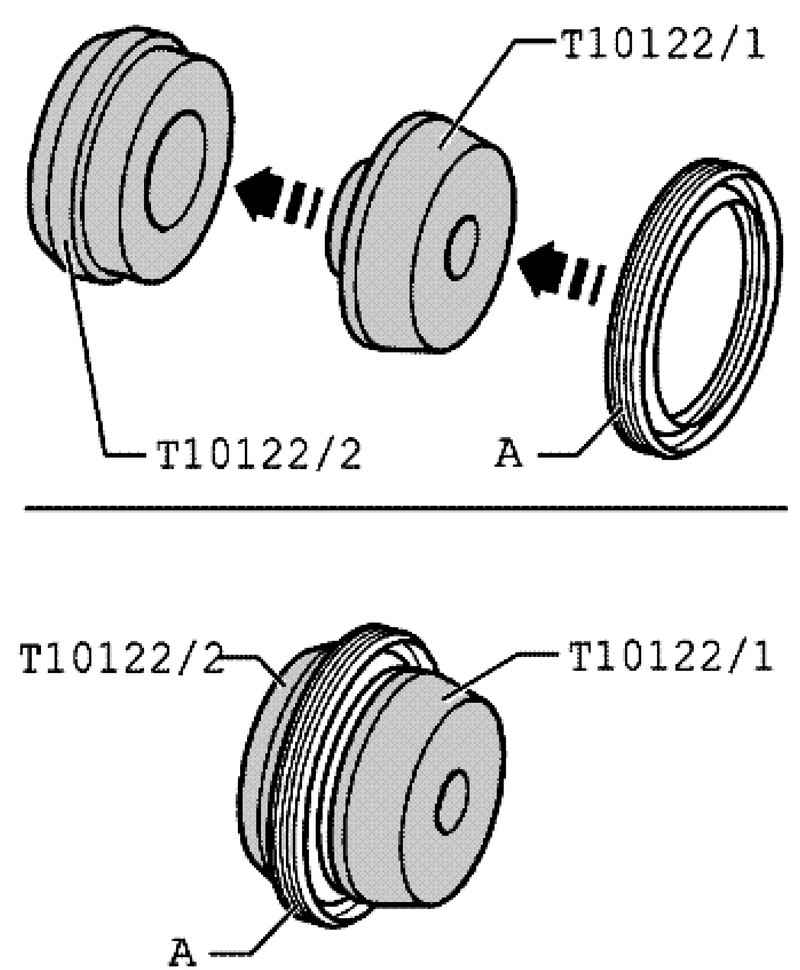

Fig. 2.46. Installing oil seal on the mounting sleeve


Tighten the gland A external side through the sleeve T10122 / 1 on the sleeve 10122/2 (Fig. 2.46).
Disconnect the mounting sleeve.
Then put a protracted sleeve T10122 / 2 dry Gland crankshaft journal.

Pressing oil seal into the flange

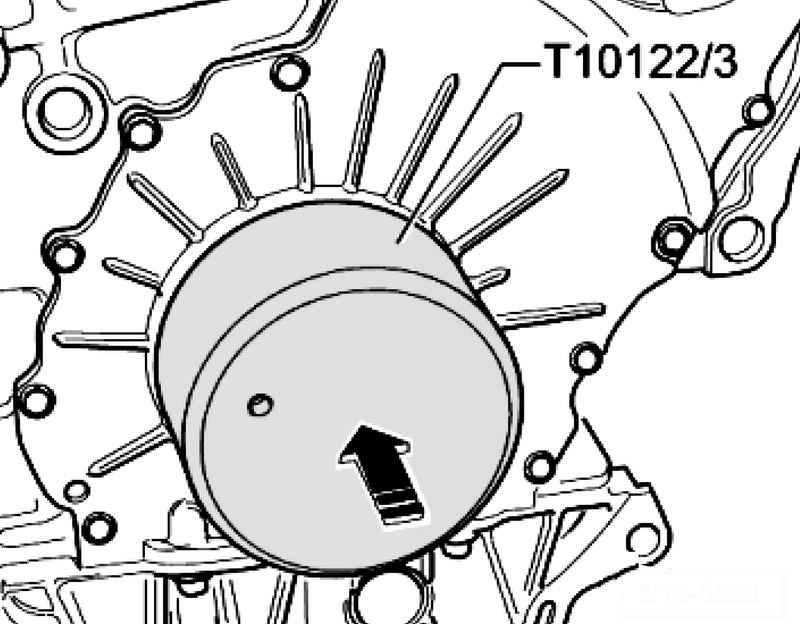

Fig. 2.47. Pressing oil seal into the flange


Press in the oil seal with special tool T10122 / 3 all the way into the flange (Fig. 2.47).
