Removing and installing the battery cut-off relay
Withdrawal Disconnect the battery. Remove the second battery, located in the luggage compartment.

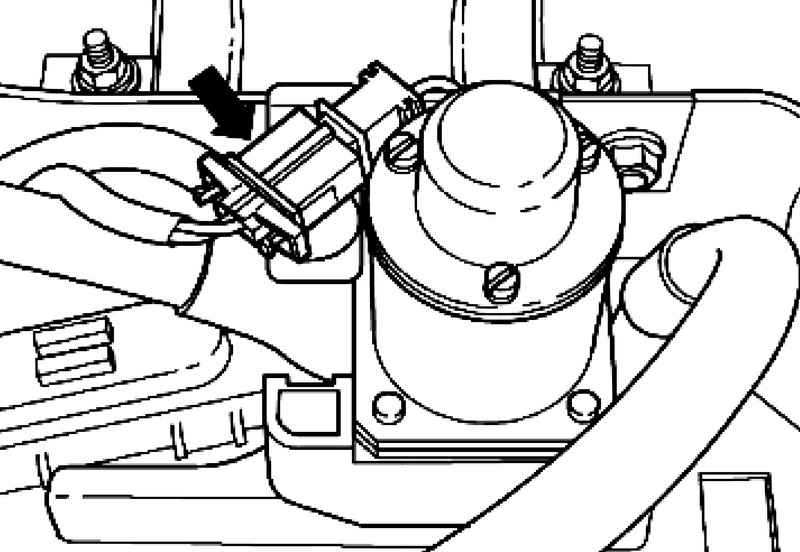

Disconnect the plug from the battery cut-off switch (Fig. 7.21).

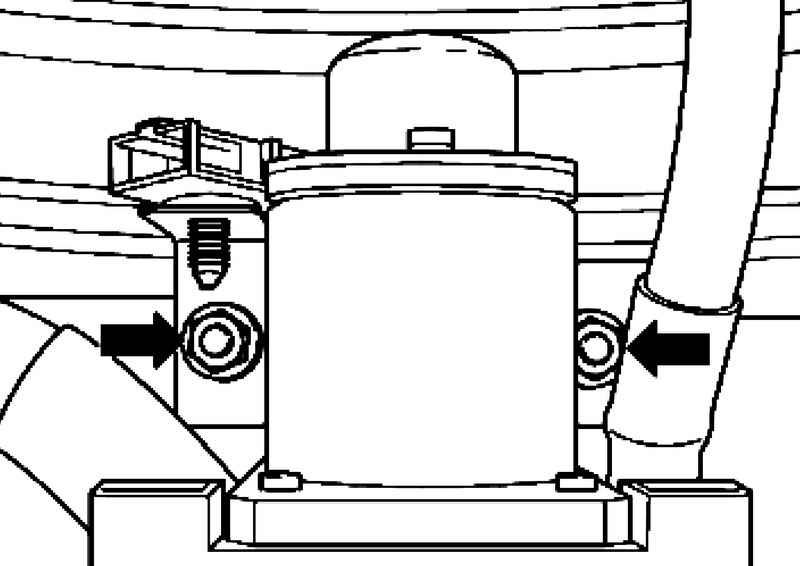

Turn off fixing nuts and take off the battery switch from the holder by pulling it up (Fig. 7.22).

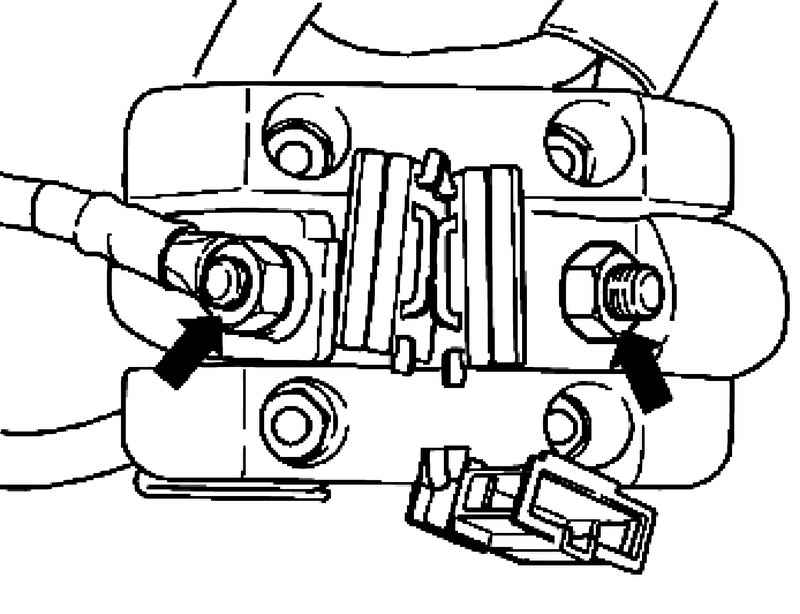

| Fig. 7.23. Electrical wires relay disconnecting the battery
|
Disconnect the electric wires from the battery cut-off switch (Fig. 7.23).
Setting Install in reverse order, with the following should be considered. Tighten the mounting nut switch off the battery and cables with the specified torque. Install a second battery, located in the luggage compartment. Connect the battery.
|
