Adjusting lock loop
NOTE Adjusting lock loop soft closing occurs by analogy. |
Remove the shelves lining the castle. The guide wedges and the pins must be diluted

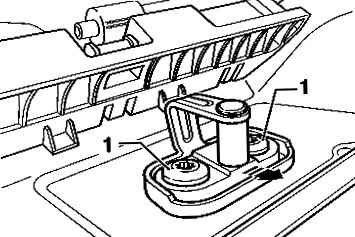

| Fig. 8.15. Tighten the screws on the lock loop
|
Push the loop back towards the castle - the arrow - and tighten bolts 1. Close the tailgate and check the adjustment. Loosen the screws 1, you can move the loop lock in the grooves. After adjustment tighten bolts 1. Torque: 25 Nm. Adjust the pins and wedges.
Adjusting wedge guide and guide pins Before adjusting the guide pins and wedges necessary to separately adjust the tailgate. Tighten the screws 1 and 5 only so that the screw heads lightly press the guide wedge 6 and the guide pin 2. Fit the guide pins and wedges in the slots must be carried out without the use of force. Before adjustment, pull out the wedge 6 on the tailgate 4 as possible. Then, to install the wedges and the pins in the correct position, close the tailgate light touch in the middle. Open the tailgate and tighten the screws 1 and 5 with a torque of 6 Nm.
|
