Removal and installation of a gas cap lock



Hinge tailgate

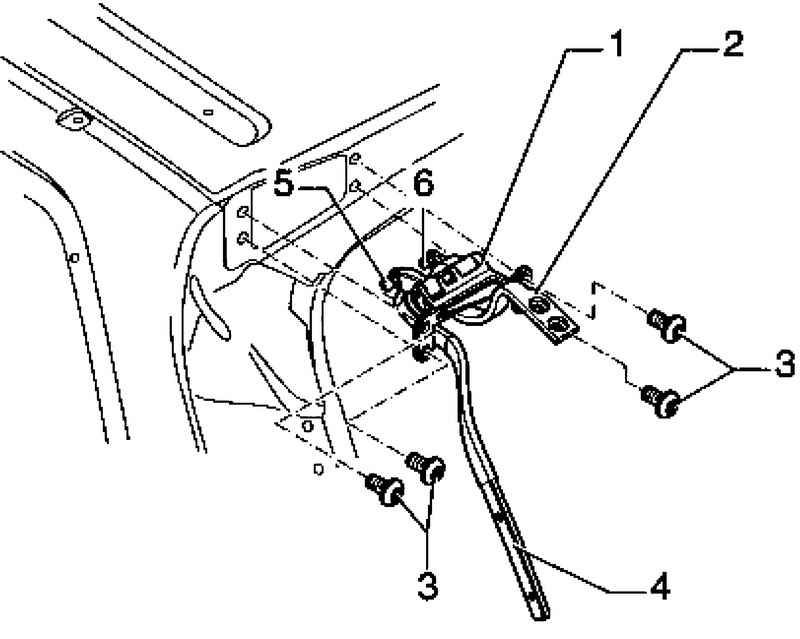

Fig. 8.16. Hinge tailgate: 1 - the hinge tailgate; 2 - bracket folding glass; 3 - the screw; 4 - tailgate bracket; 5 - ball pivot the tailgate; 6 - Ball pin folding glass



Withdrawal
Remove molded headliner
Remove the hinged glass
Remove the tailgate
Remove the plug of the gas stop
Remove gas focus folding glass
Remove the gas stops the tailgate

Setting
Installation is carried out in reverse order.
