Removal and installation of facing of the front bumper

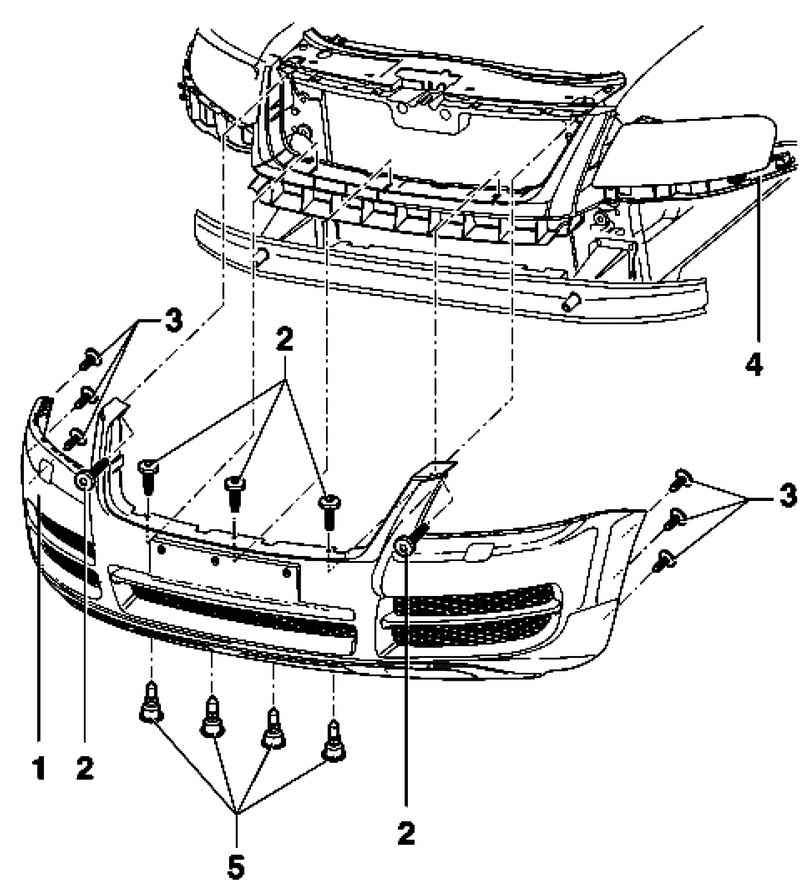

| Fig. 8.54. Front Bumper Fascia: 1 - facing; 2 - the screw; 3 - a bolt; 4 - guiding profile; 5 - a bolt
|
NOTE Depending on the model to be considered minor deviations. |
NOTE Depending on the model, for removal and installation must be considered minor deviations. |
Withdrawal Remove the grille. Remove the screws in front of the fender liner. Remove the screws 2. Remove the screws from the bottom 5. 3 Remove the screws in the area of the fender liner. Unlock catches under the lights on the left and the right. With the help of a second mechanic to remove the bumper fascia guide profiles 4. Disconnect, depending on the vehicle, wires and hoses of all available electrical components.
Setting Installation is carried out in reverse order.
|
