Lifting sunroof with glass panel
Operating principle Ignition lifting and sliding roof opens and closes by means of a rotary switch. Luke leans back when you press on it, and closes when its pull in the opposite direction. With the ignition off lifting and sliding roof can be opened and closed until the open or driver's or right front door. On the rotary switch marked mark indicating a predetermined position of the glass panel door.

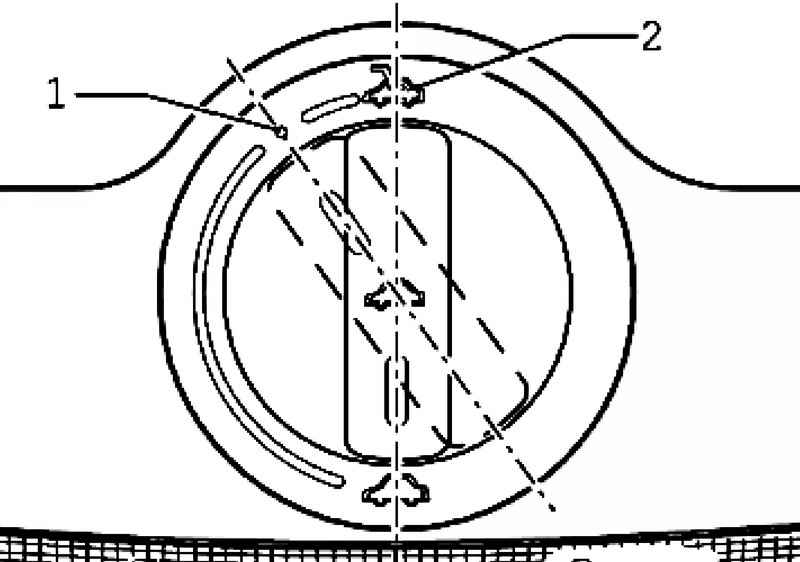

Opening the lifting and sliding roof, turning the switch to 1, so-called comfortable position, you protect yourself from the outside noise when driving fast, which can occur when the fully open hatch in the switch 2 (Fig. 8.43). Lifting sunroof is equipped with force limiters at closing. If, during the closing of the hatch face any obstacle, it automatically opens again. In addition, the hatch is also equipped with a function of emergency closing. If you have problems with closing the hatch, it can be closed forcibly by pressing the switch, which should be in a position to do ?�Schiebedach geschlossen / hatch is closed." However, the emergency hatch closing force limiter is switched off. Drive lifting and sliding roof is protected from overheating temporary stop. The defense mechanism is activated after about 2 minutes of continuous use the drive hatch. After the cooling phase, the protective mechanism is switched off again. In the absence of on-board voltage of lifting and sliding sunroof can also be opened and closed with an Allen key. Allen key is located on the inside lining of interior light.
|
