Removing and installing bonnet

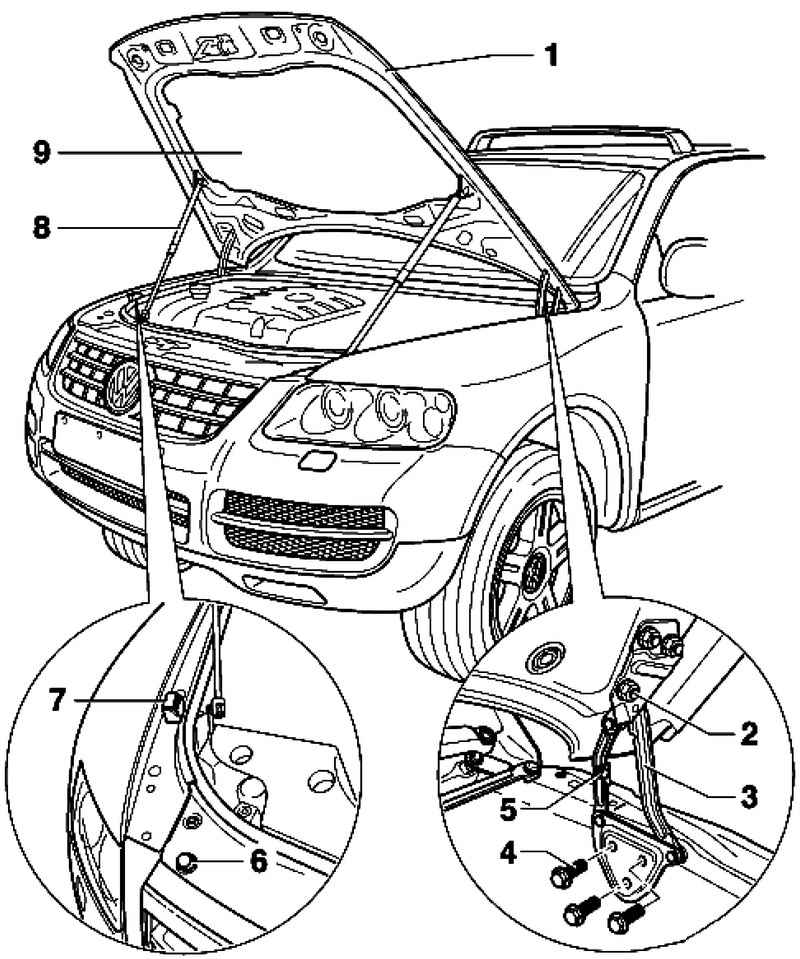

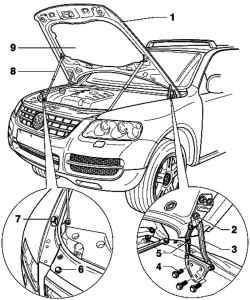

| Fig. 8.1. Hood: 1 - hood; 2 - hex nut; 3 - hinge; 4 - a bolt; 5 - an adjusting bolt; 6 - adjustable stop; 7 - a guide member; 8 - a gas emphasis; 9 - Insulation
|

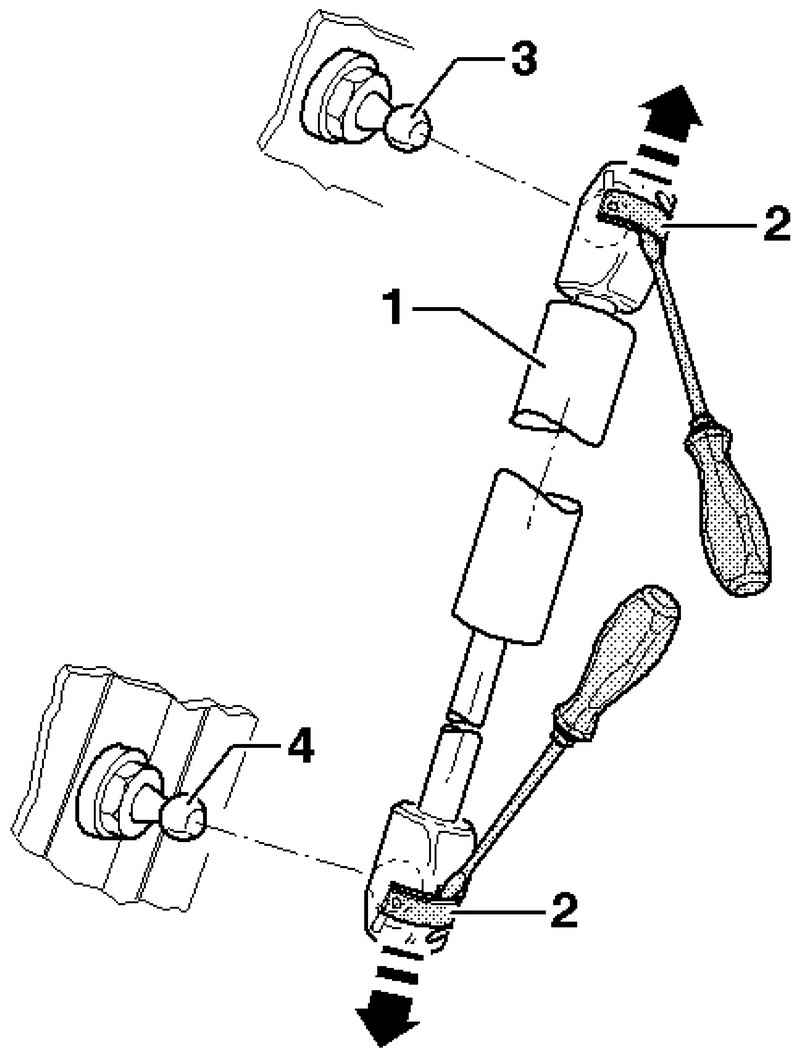

| Fig. 8.2. Spring-loaded rack bracket hood
|
Withdrawal Disconnect the plug connections of electrical components and hoses. Loosen the nut 2 (do not remove). Further removal is possible only with the help of a second mechanic. Remove the gas from the hood 8 stops. Unscrew the hex nuts 2 only now and remove the cap 1. Setting Installation is carried out in reverse order.
|
