Composite wheels



Composite blades consist of several parts.
The most important are the rim and wheel disc. These parts are attached to each other by special bolts with special technology. This ensures that the density, security and accuracy of wheel rotation without radial runout. In the context of an authorized workshop or garage can not be guaranteed by the implementation of these important requirements.

ATTENTION
Do not disassemble or repair the component drives.

Alloy wheels with interchangeable decorative elements
These drives are equipped with interchangeable decorative elements. During installation observe the following instructions.
Before screwing the new wheel bolts, clean the threads in the drive.

Deco drive

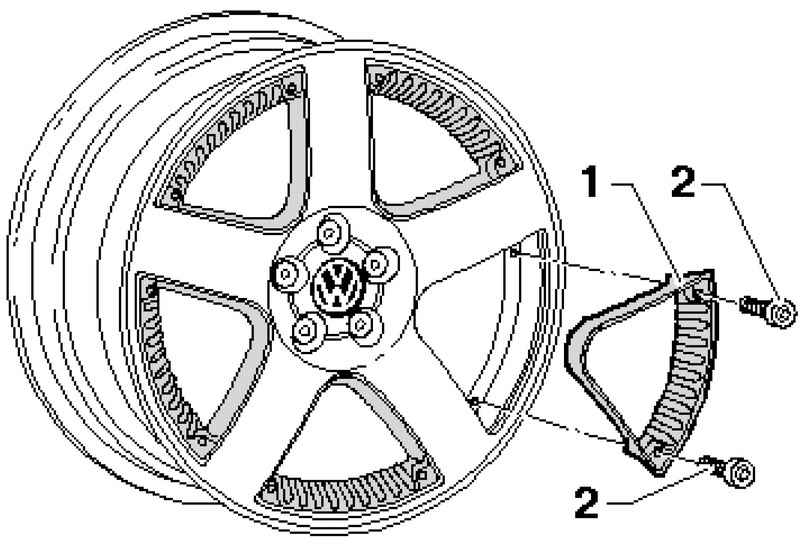

Fig. 4.1. Decorative element disk: 1 - a decorative element; 2 - screws with hexagon socket


Use new bolts (Fig. 4.1).
Tightening torque self-locking screws with hexagon socket: 5 N ?� m.
