Removal and installation of the hydraulic pressure sensor for the automatic transmission 1 and G193 for hydraulic pressure sensor 2 G194 AKP
NOTE Always replace the sensors together. |
Withdrawal If the operation is not yet complete - remove the oil pan and the oil strainer.

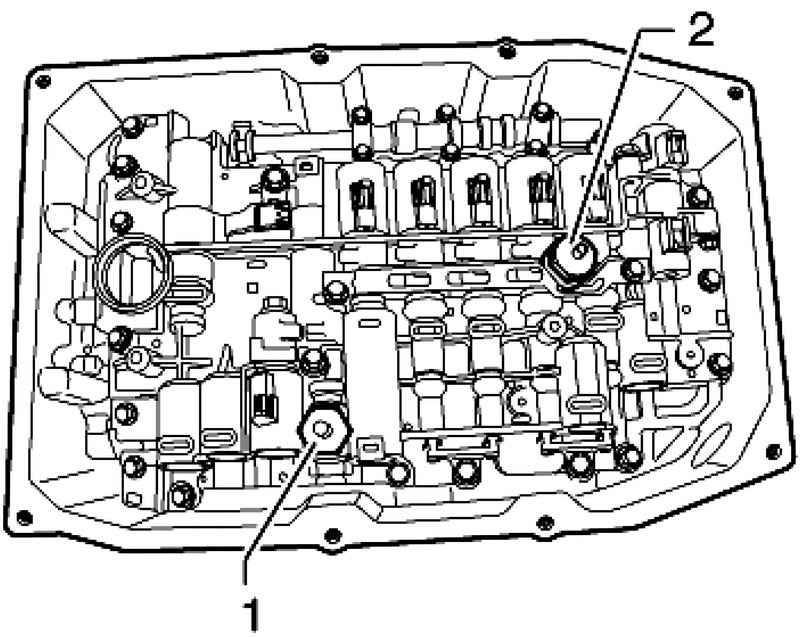

Carefully remove the plugs for the hydraulic pressure sensor 1 G193 1 and the automatic transmission pressure sensor for hydraulic automatic transmission 2 2 G194 (Fig. 3.73). Remove both sensors.
Setting Always replace the sensors together. Install two new sensor and tighten to 5 Nm. Connect the sensors 1 and 2 until it stops. The plugs must click. Install the oil strainer and oil pan. After installation fill the ATF, and then check the level of ATF, if necessary - add oil.
|
