Removing and installing selector rods



NOTE
If before removing rods attaching the cord when installing rod can be vdet again.

Withdrawal
Remove the drive gear.

Removing the cuff

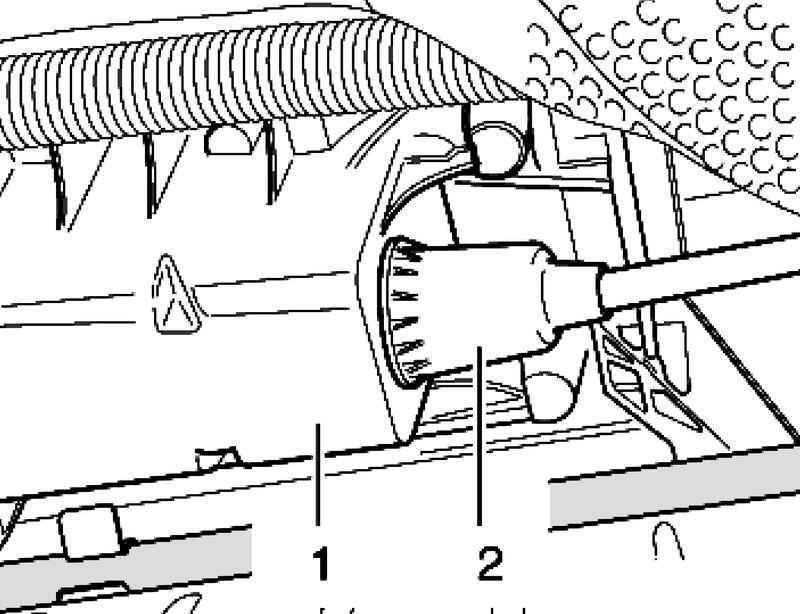

Fig. 3.13. Removing the cuff


Squeeze the cuff forward from the cup support (Fig. 3.13).
To remove the thrust selector simply omit the transfer case.
Lower the transfer case.
Remove the lock washer 1.

Link selector

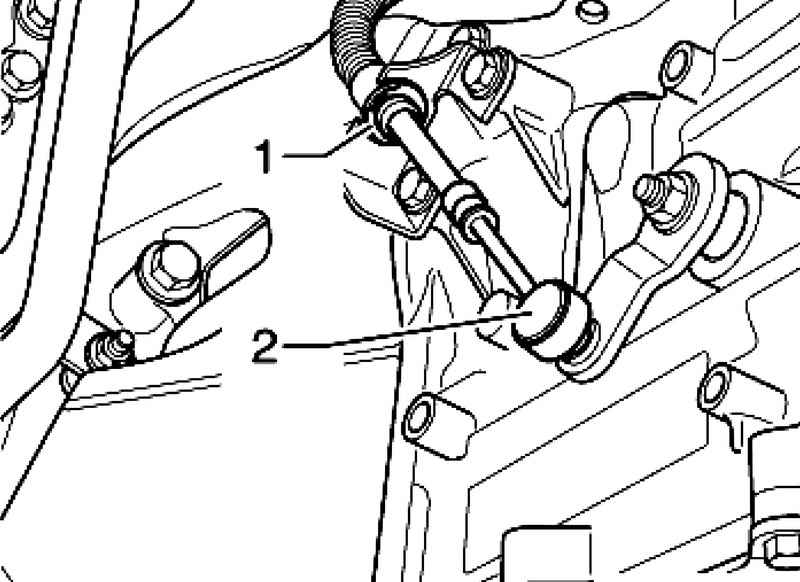

Fig. 3.11. Link selector


Disconnect draft of the selector lever 2 / selector shaft (Fig. 3.11).

Setting
Install the thrust lever in 1 cup support.

Setting the selector cup
Fig. 3.14. Setting the selector cup


Press the cap 2 to the entire surface of the bearing cup (Fig. 3.14).
Install the transfer case.
Gently press the selector rod 2 to the lever / selector shaft (Fig. 3.11). In this bend lever / selector shaft, otherwise it will be impossible to accurately adjust the gear changes.
Replace the lock washer 1.
Push the cuff 2 to the entire surface of the cup support.
Install the drive gear (Fig. 3.13).
