Removing and installing oil strainer
Withdrawal Remove the oil pan.
Remove the oil strainer.
Setting

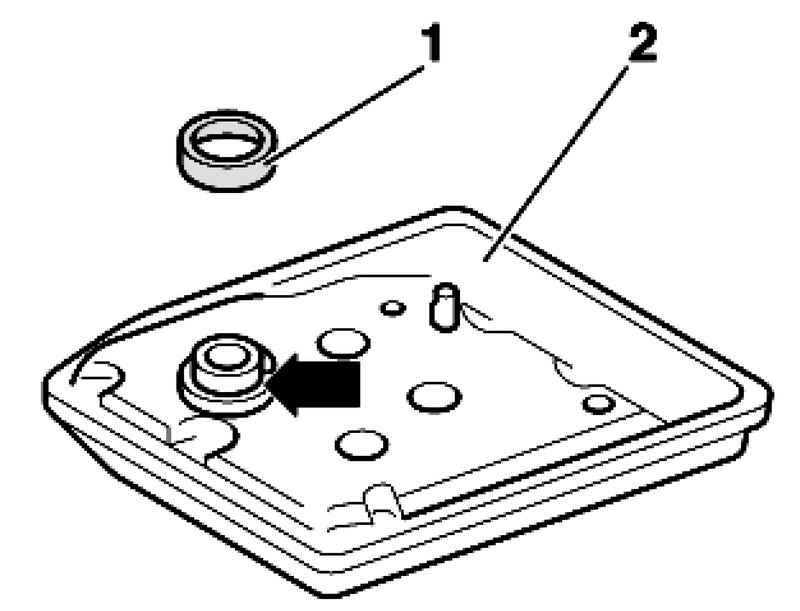

Install a new gasket 1 on the suction collar oil strainer 2 and grease it with oil ATF (Fig. 3.72). Studs M6x70 are used as guides for the oil strainer. 3 Screw M6x70 stud hand spool box. Install the oil strainer at the hairpin. Gently push the suction collar all the way into the hole in the slide valve box. Tighten bolts of oil strainer. Install the oil pan. After installation fill the ATF, and then check the level of ATF, if necessary - add oil.
Tightening torques Bolts oil strainer 10 Nm.
|
