Removing and installing selector switch (the lever is locked in position ?�P?�) F319



NOTE
Switch Tiptronic-F189 - is built into the harness two electromagnets.

Withdrawal
Remove the selector lever.
You should always observe the sequence off of the battery.
Turn off the mass terminal of the battery when the ignition is off.
Remove the cover of the central console.

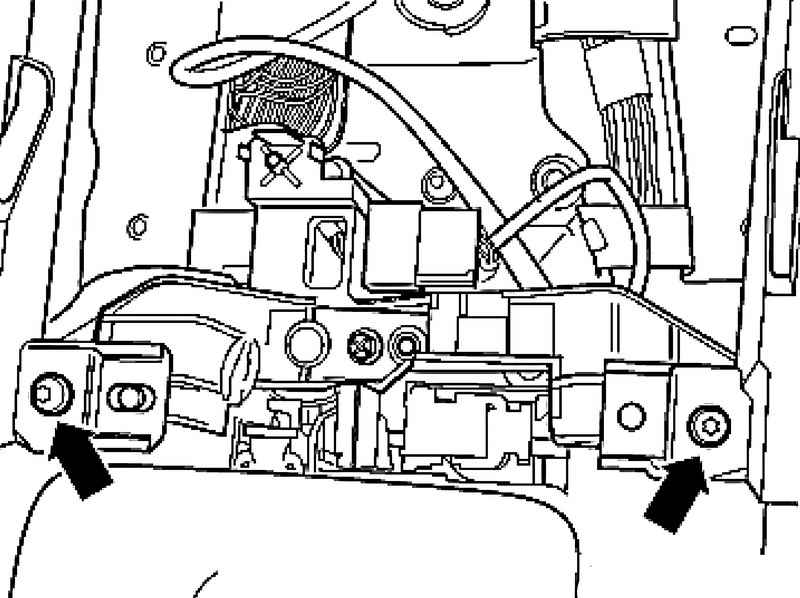

Bolts center console
Fig. 3.22. Bolts center console


Remove the center console bolts (Fig. 3.22).
Unlock and disconnect the connector 1.
2 Remove the bolt and remove the holder.

Connectors and bolt
Fig. 3.23. Connectors and bolt


Remove connector 3 from the holder (Fig. 3.23).
Disconnect the connectors from the electromagnets.

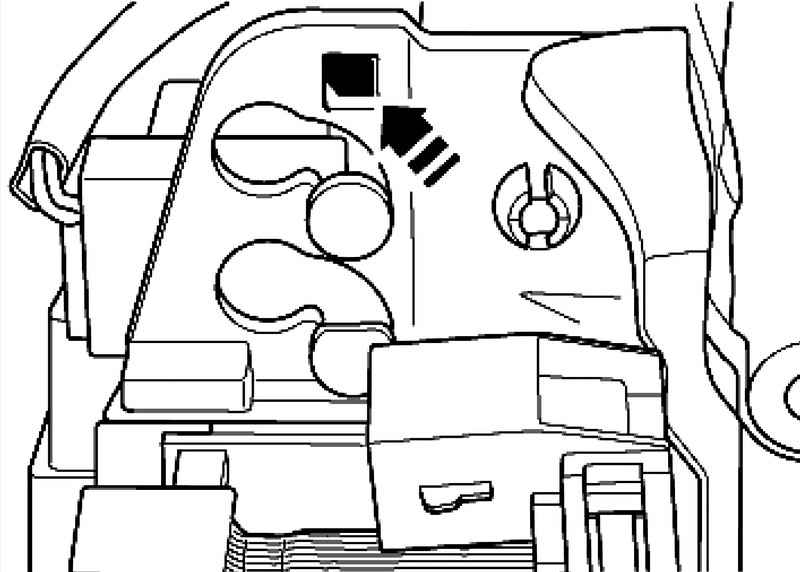

The locking lever
Fig. 3.24. The locking lever


Press the locking lever to the right and pull the switch up and down of the drive gear (Fig. 3.24).

Setting
Installation is carried out in reverse order. It is necessary to consider the following.

Cables
Fig. 3.25. Cables: 1 - the wiring harness to the electromagnet block selector N110; 2 - the wiring harness to the electromagnet lock lever in position ?�P?� N380; 3 - the wiring harness to the selector switch (the lever is locked in position ?�P?�) F319


Lay 1-3 cables as shown (Fig. 3.25).
Install connector 3 in the holder.
Tighten the bolt 2.
Connect the plug 1 (Fig. 3.23).
Install the trim center console.
Connect the battery.
Set the selector lever.
