Removing and installing selector lever
Withdrawal The following sequence must be followed in order not to damage the selector lever.

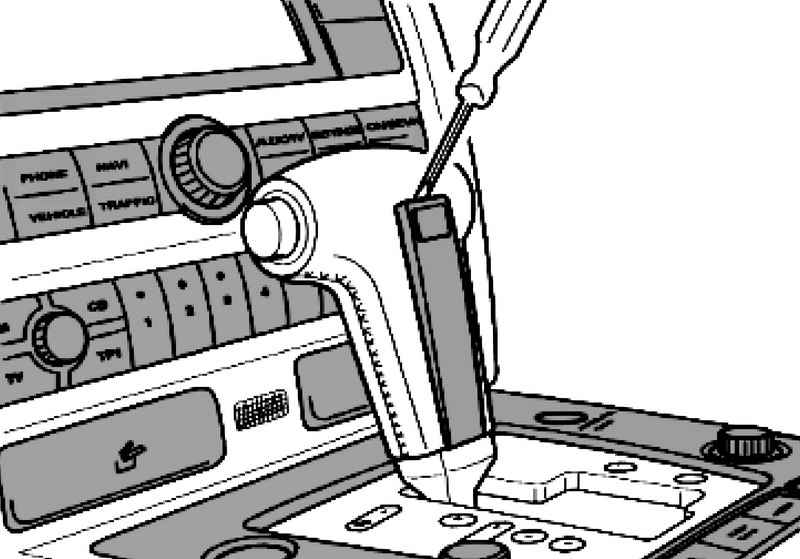

Pull out the key after a certain resistance so that it locks into place. Then remove the handle from the selector.
Setting
| Fig. 3.10. The scheme of installation selector lever
|

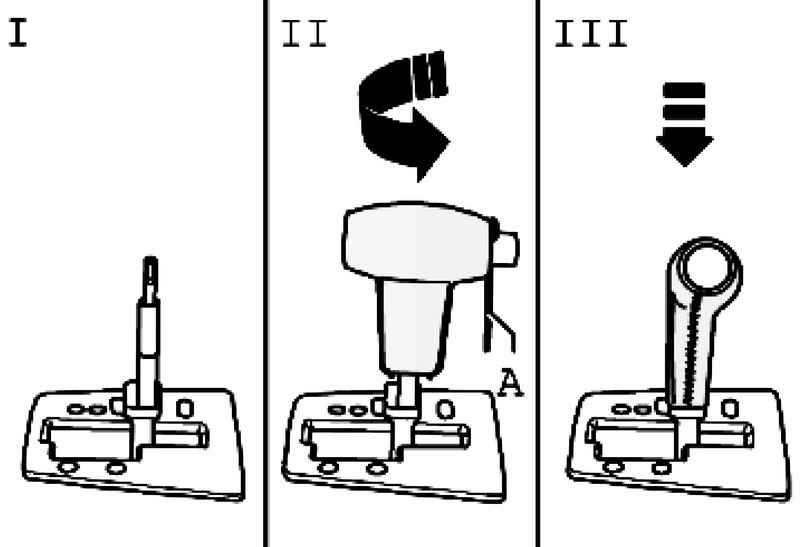

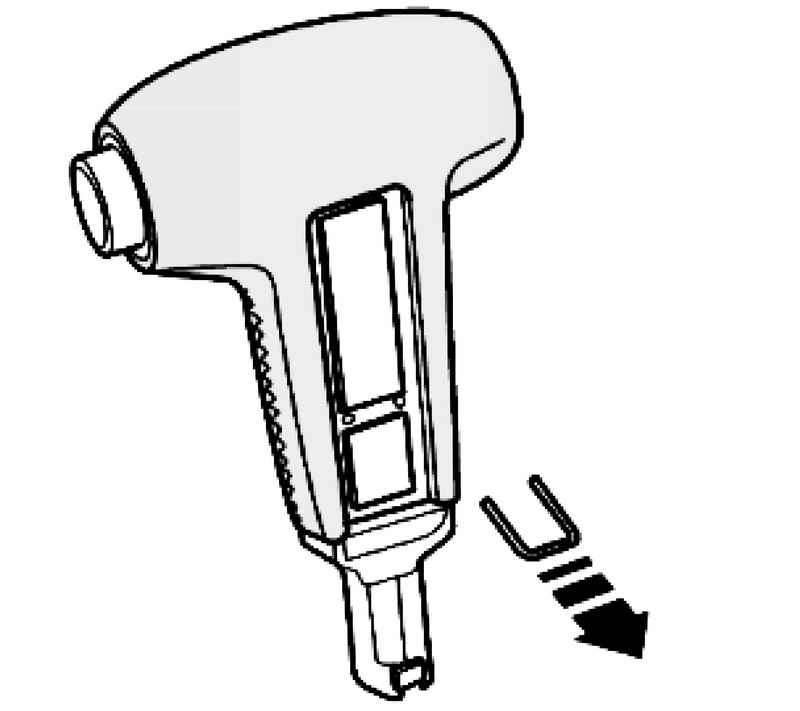

When you replace the handle in any case, do not delete the new handle assembly tool. If the button is accidentally pressed and left inside the handle - hold the handle upright and gently press Blow compressed air from the bottom, until it can not be pulled by hand through some resistance. Reinstall A jig (supplied with the handle). Install the bracket. Insert the trim into the handle. Set the selector switch to ?�N?�. I - carefully spend the sleeve through the blinds and below the valve. Make sure that when you install the sleeve was conducted through the protective plate very carefully. When pressed inattentive sleeve protective plates will be destroyed. II - The handle Push all the way in the longitudinal direction, then turn. Mounting position: button directed towards the driver. III - Now Push the handle on the selector lever all the way, while you should hear a click. Remove the jig A, press the button and pull the plug upwards. Remove the protective film on the surface of the bonding glue and logo.
|
