Adjusting the parking brake

Adjustments can be made only by means of adjusting devices on the two rear wheels. The adjustment can not be made on the parking brake lever and the transmission unit in the center console.

Pay attention to the correct folding brake parking brake cable.

If the brake pads have been replaced, you must set the gap to 6 teeth. In conclusion, the brake pads to earn extra one-time braking of the vehicle parking brake at a speed of about 50 km / h. It does not block the rear wheels.

The lever is released the parking brake pedal.

Remove the rear wheels.

The brake discs must be freewheeling. Otherwise, gently squeeze the brake pads or slightly pull the brake cables in opposite directions.

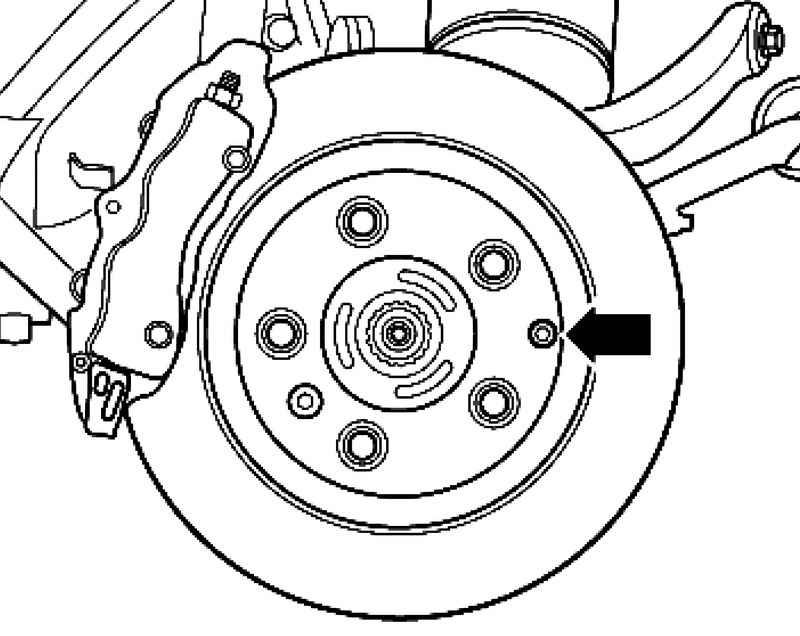

Remove the locking bolt hand brake adjusting nut (Fig. 6.47).
