Removing and installing rear brake cables
Withdrawal Remove the two rear wheels. Remove the center console.

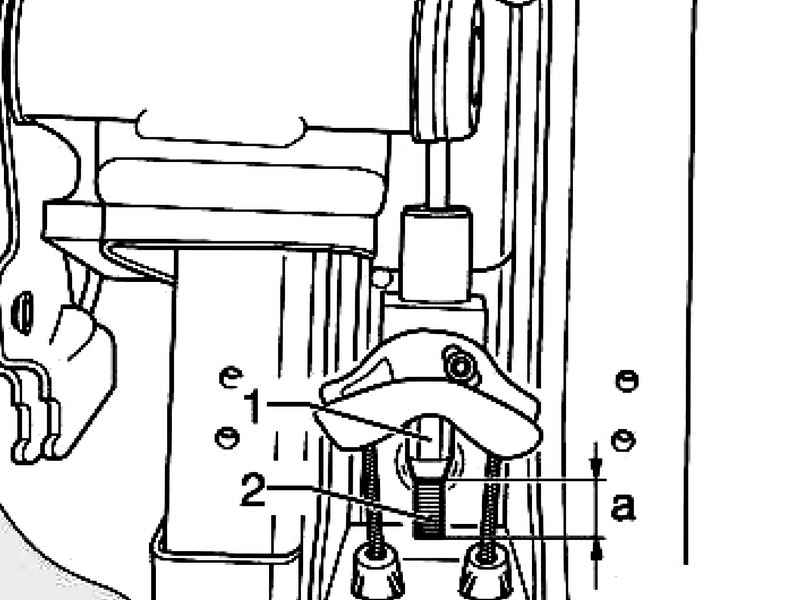

Record the value. Slightly turn back the hex nut 1 until the brake cables can not be drawn from the compensation clamp (Fig. 6.55). Unlock the cover of a cable from the holder. Disconnecting the brake cable from the lock spacer. Perhaps only when unloaded brake cable. Remove the locking bolt of the adjusting nut handbrake.

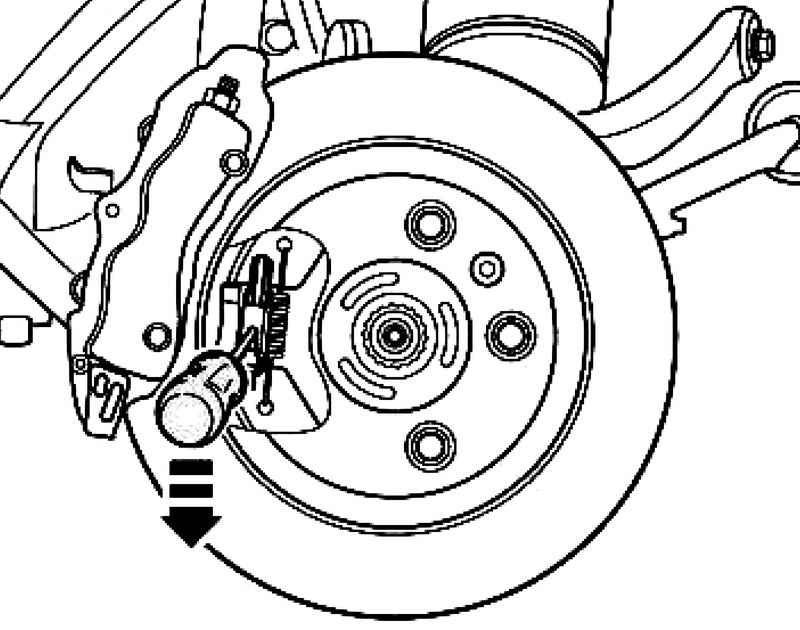

Press the brake cable nipple against the retaining spring in the brace down the castle until the brake cable can not be extracted (Fig. 6.56). The right side is a mirror image, ie, nipple on the brake cable must be pressed upwards. Release the brake cable from the holder on the tank. Remove the brake cable from the holder on a stretcher, and then remove it.
Setting Install in the reverse order Nipple brake cable snaps into the spacer with a click of the lock. Install the brake cables in compensatory bracket. Tighten the hex nut 1 on the pusher 2, until you reach the front of the measured body of a (Fig. 6.55). Check out the free motion of the foot parking brake
|
